23

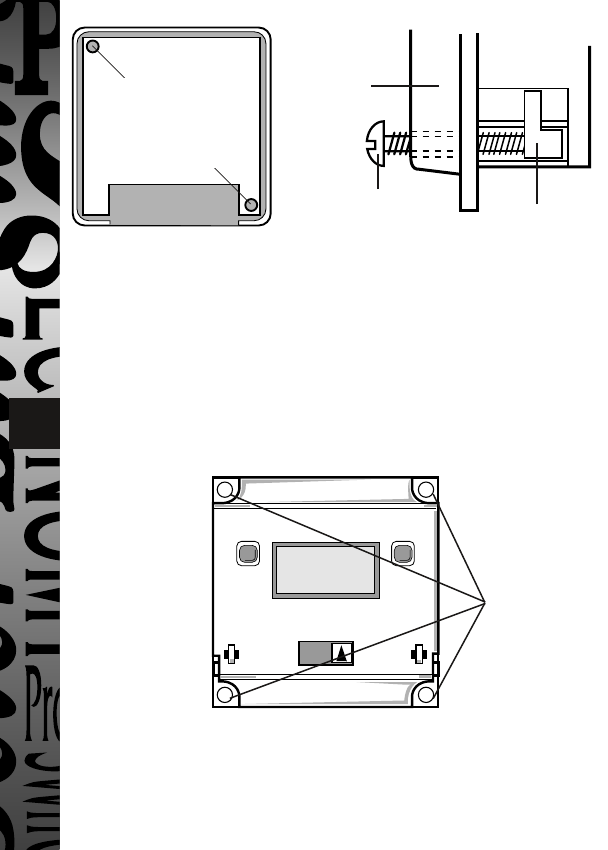

Figure 4
Figure 5
Figure 6
Surface Mounting
The EL11/17 without bezel can be surface mounted using the 4 securing holes
as shown in figure 6. The unit can be stood off from the mounting surface by
10mm using the 4 spacers if required. Screws are not provided and it must be
remembered that if used in this way the EL11/17 must be installed within a
housing or cubicle to prevent access to the mains terminations.
On/Off/Timed Slide Switch
The three position slide switch allows continuously ON, continuously OFF
or normal programmed operation.
Use No. 6 x 3/8" self-
tapping screws to fully
secure bezel to EL11/17
(fixed from rear)
Bezel
No. 4 x 5/8" self-
tapping screw
4 fixing holes
for surface
mounting
Bolt
