29
1 2 3 4 5 6 7
● ● ● ● ●
= 5 days (Weekdays) Mo Tu We Th Fr
● ●
= 2 days (Weekend) Sa Su
● ● ● ● ● ● ●
= 7 days (Everyday) Mo Tu We Th Fr Sa Su
●
= Individual days Starting with Monday through to Sunday

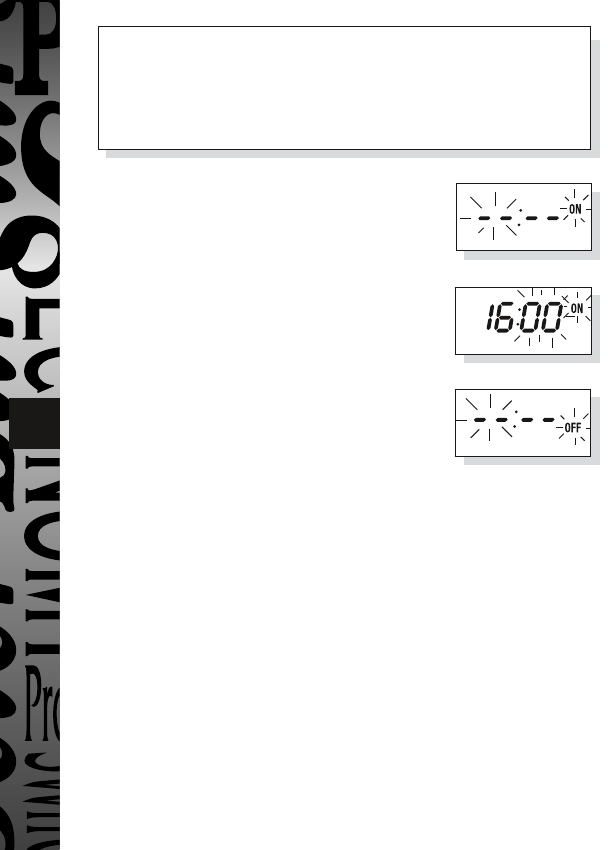

ii Once day option selected press
button once to select hour time – display
shows hour digits and ON flashing. Press
button to advance hour setting.
(Note: Monday shown as an example of days set).
iii Press button once to select minute time -
display shows minute digits and ON flashing.
Press button to advance minute setting.
(Note: 16 hrs shown as example of hours set).
iv Press button once – the first ON time is
now set and display shows ready for the first OFF
programme time.
v Now set the hrs and minutes as before.
The day(s) selected remains the same.
vi Repeat steps i to v to set the remainder of the 5 ON/OFF times as required. Note:
Any unused ON/OFF programme should be skipped until the display shows
normal operating mode. Do not programme ‘0’s into unused programmes.
IMPORTANT After setting a clock time which falls within a programmed ON
period, the unit will not switch ON. Use the override facility to switch unit ON.
After this the unit will operate normally to the programmes set.
4. Programme Review
To fast review the set programmes or for quick exit to normal operating mode –
press and hold the button.
5. Initiating Programme Mode
This can be initiated any time during the normal operating mode.
Press button and the Clock symbol, day flag, hrs and minutes
symbols on the display will flash – this is review mode. If any change to
programmes is required press button to initiate programme
mode and then follow steps 2 and 3.
1 2 3 4 5 6 7
1 2 3 4 5 6 7
1 2 3 4 5 6 7
●
●
●
