Programming sequence
Note: Button pauses greater than 1 minute during programming will result in
automatic return to the operating mode.

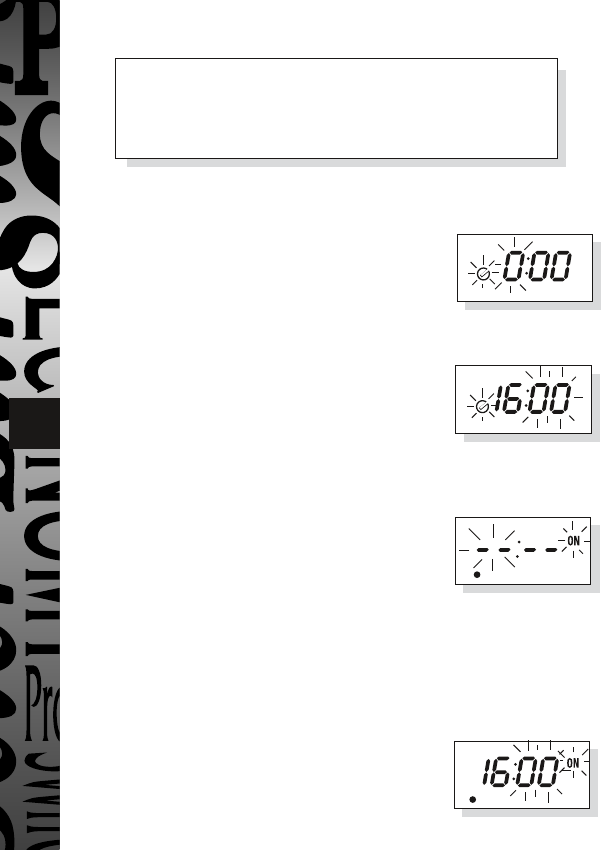

2 Setting Clock (after reset)
i Hour Setting – Press the button to advance
the hour setting. Note: For rapid hour selections press
and hold down button.
ii Minute Setting – Press the button once to
select the minutes – display shows clock symbol
and minute digits flashing. Press the
button to advance the minutes setting. Note: For rapid
minute selection press and hold down
button. (Note: 16 hrs shown as example of hrs set)
iii Press button once – clock is now set and
display shows ready for the first ON programme time
with ON and hours digits flashing.
3. To Set Programme ON/OFF Times
(after clock setting)
Programme 1 ON time
i
Press button to advance the hour setting.
ii Press button once to select minute time –
display shows minute digits and ON flashing.
Press button to advance minute setting.
(Note: 16 hrs shown as example of hours set).
Setting clock
Programme 1 ON
Programme 1 OFF
Programme 2 ON
Programme 2 OFF
Programme 3 ON
Programme 3 OFF
Programme 4 ON
Programme 4 OFF
Operating Mode
....
. . .
. . .
. . .
. . .
....➔
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
