27

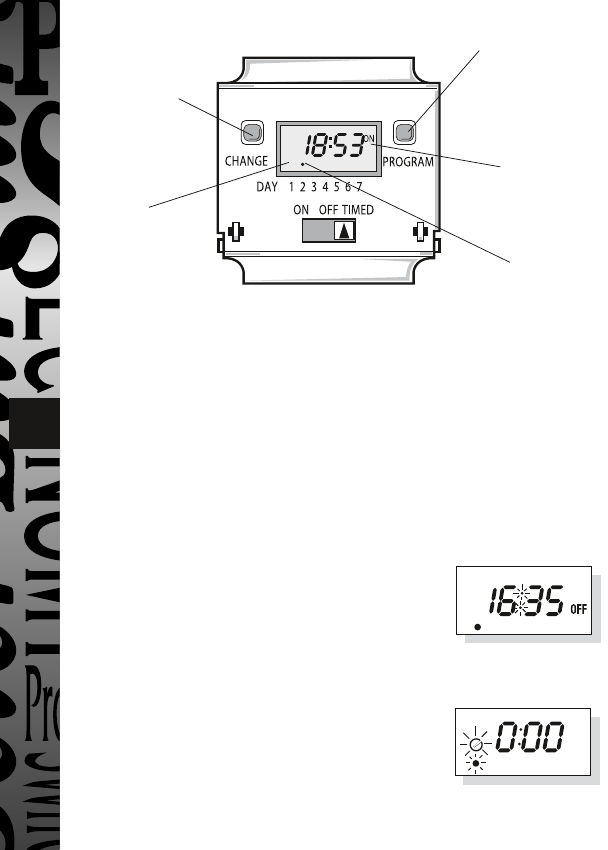

Easy view 24
hour digital
clock/timer
display
Change Button
sets Day(s), Hours
and Minute times
and self cancelling
override
Programme Button
used to select the
clock time and the 6
ON/OFF
programme times
and to review them
once set
Output Status
showing unit
either ON or OFF
Battery
This product has a factory fitted rechargeable battery. If the time controller is left with
its mains power switched off for more than 1 month the display may go blank. In
this case switch mains on, wait 30 mins, and apply reset – see 1 before programming.
Programming
Only two setting buttons are provided and . During the
programme mode the button is used to set days and the hour and
minute times. Holding this button down achieves rapid selection of the day and
the hour and minute times. During normal operation it is used for changing the
output status. The button is used to select the clock time and 6 ON/
OFF programmes and to review them once set. Holding this button down
achieves rapid selection of the next programmes or can be used as a quick exit
from programme mode.
Normal Operating Mode
In normal operation the PanelMaster will display the
correct day and its time with the colon flashing. The output
status will be shown by either ON or OFF on the display.
1 To Reset Display
To clear programmes from memory and reset the time controller press
and hold down both buttons until the display goes blank.
Release buttons and display will fill with its complete
range of characters and then clear to show clock and
day 1 symbol flashing.
You are now in the clock setting mode
at the beginning of the programme sequence
EL17 Programming Instructions
Day indicator
1 = Monday
7 = Sunday
1 2 3 4 5 6 7
1 2 3 4 5 6 7
