Page 6
E-M-XB-V1_10
Rotronic AG
Bassersdorf, Switzerland
Document code
Unit
Instruction Manual
Document Type
XB Humidity Temperature Transmitter
User Guide
Document title
Page 6 of 27
© 2008; Rotronic AG E-M-XB-V1_10

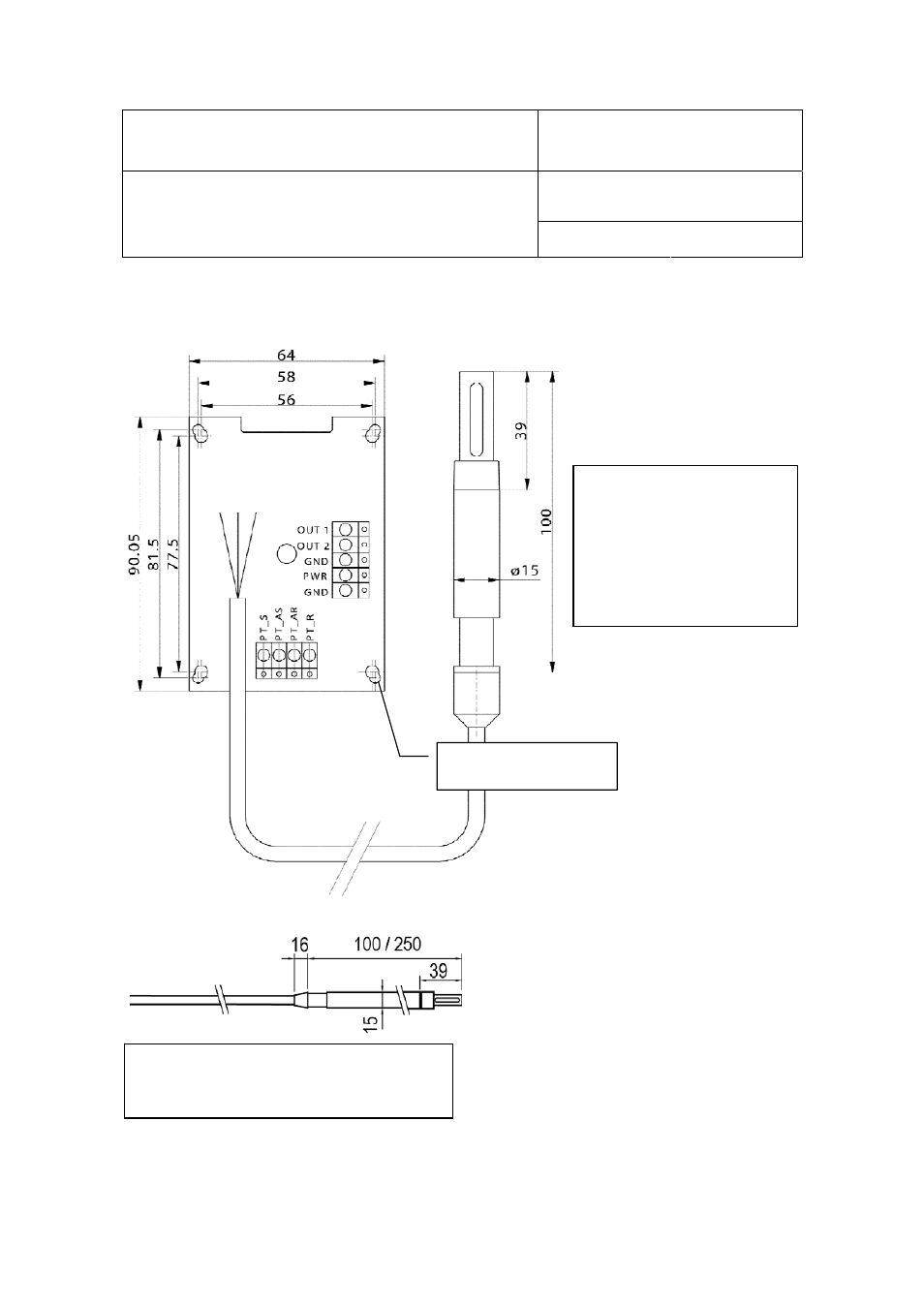

2.2 Dimensional drawings
Board thickness:
1.7 mm / 0.07”
Clearance bottom:
5 mm / 0.20”
Clearance top (component side):
15 mm / 0.60”
Overall probe length: 116 / 266 mm (4.57 / 10.47”)
Diameter: 15 mm (0.59”)
Cable length: 2 m (6.5 ft)
Dimensions in mm
4 x mounting hole
dia: 4.4 mm / 0.173”
