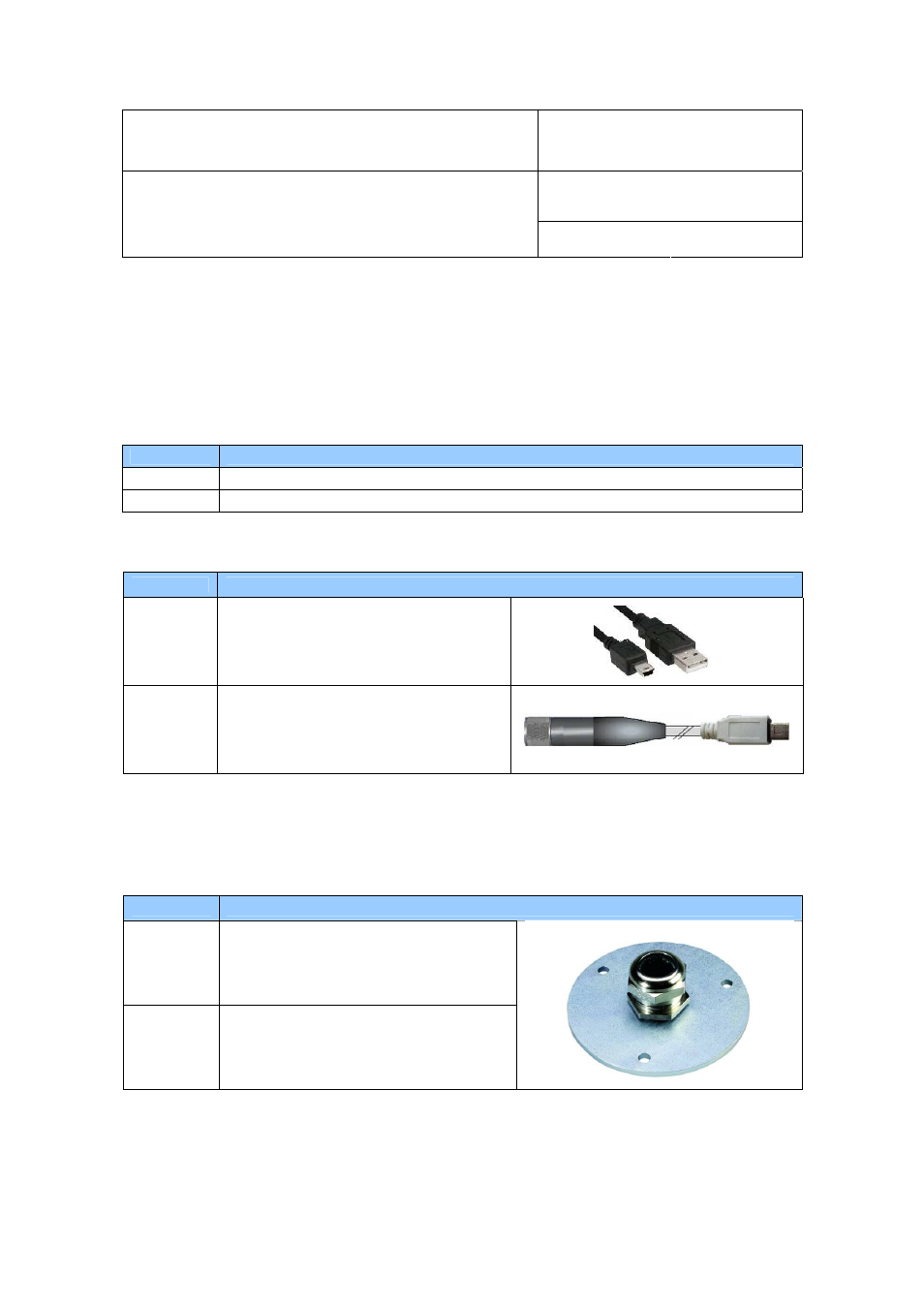

11 Accessories
11.1 Configuration and communication software
The ROTRONIC HW4 software (version 2.1.0 or higher) allows configuring the XB transmitter.
HW4 is compatible with Windows XP, Vista and NT4 with SP6a or higher. For more details see separate
instruction manual provided with the software.
Order Code Description
HW4-E
HW4 software, Standard Edition ( single user)
HW4-P HW4 Professional Edition, ERES regulations compliant (FDA / GAMP), multi user
11.2 Service cables
Order Code Description
AC3006
Mini-USB service connector (UART) to a PC
USB port. Cable electronics convert UART
interface to USB interface
AC2001
Mini-USB service connector (UART) to 7-pin
probe connector of the HP23 hand-held
calibrator or other instrument with display and
keypad.
IMPORTANT: When connecting service cable AC3006 to a PC USB port, the ROTRONIC USB driver must be
installed on the PC. Both the driver and the installation instructions (document E-M-HW4v2.2-Main) are
located on the HW4 CD.
11.3 Mounting hardware
Order Code Description
AC1304-M
Compression fitting for 15 mm (0.6”) diameter
probes. Maximum temperature 200 °C (392°F)
AC1306
Flange for AC1304-M – nickel coated steel
Diameter: 80 mm (3.1”)
