PF4 Differential Pressure Transmitter:
Instruction Manual
Instruction Manual
Document Type
Page 41 of 54
Document Title
© 2014; Rotronic AG E-M-PF4-V1_00
Applies change to RefValue

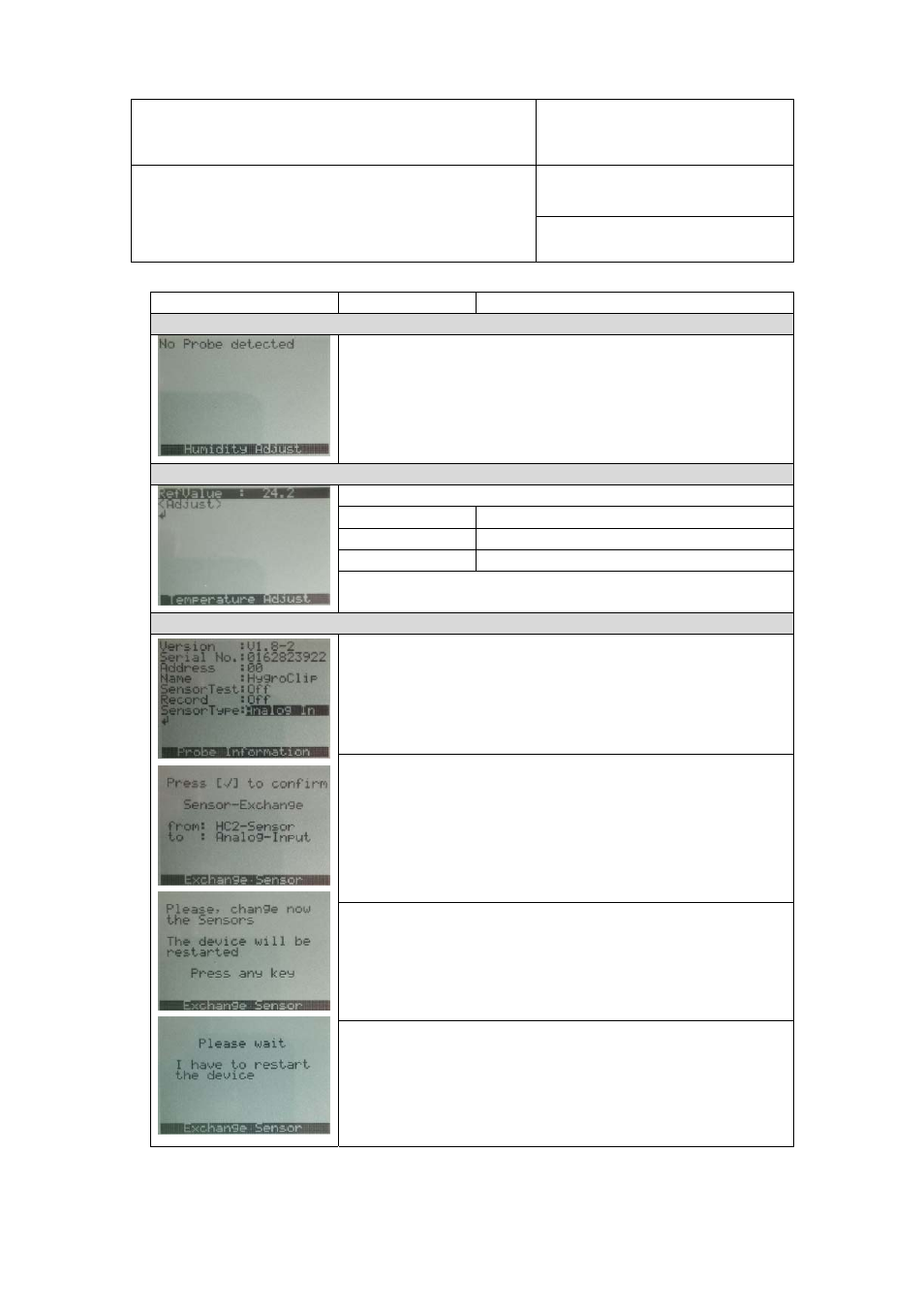

Temperature Adjust (1)
Display when a HC2 sensor is not connected
Temperature Adjust (2)
Display when a HC2 sensor is connected
Select Options
RefValue The current temperature can be changed
Applies change to RefValue
Exchange Sensor
Exchange Sensor is started after selecting Analog In in menu Probe
Information
The HC2 sensor can be substituted by an analog input (depending on order
code, for current or voltage measurement).
 The action is only started after confirmation by pressing the Enter key [].
 If the Enter key [] is not pressed within about 10 seconds, the device
returns to the menu Probe Information.
Exchange HC2 sensor for the analog input and press any key
 If a key is not pressed within about 20 seconds, the device starts
automatically with the new settings.
The device is started with the new settings.
Summary of procedure:
MENU > Probe Information > Enter > Sensor Type HC2 > Sensor Type Analog In
> Enter > Change Sensors > Any Key
