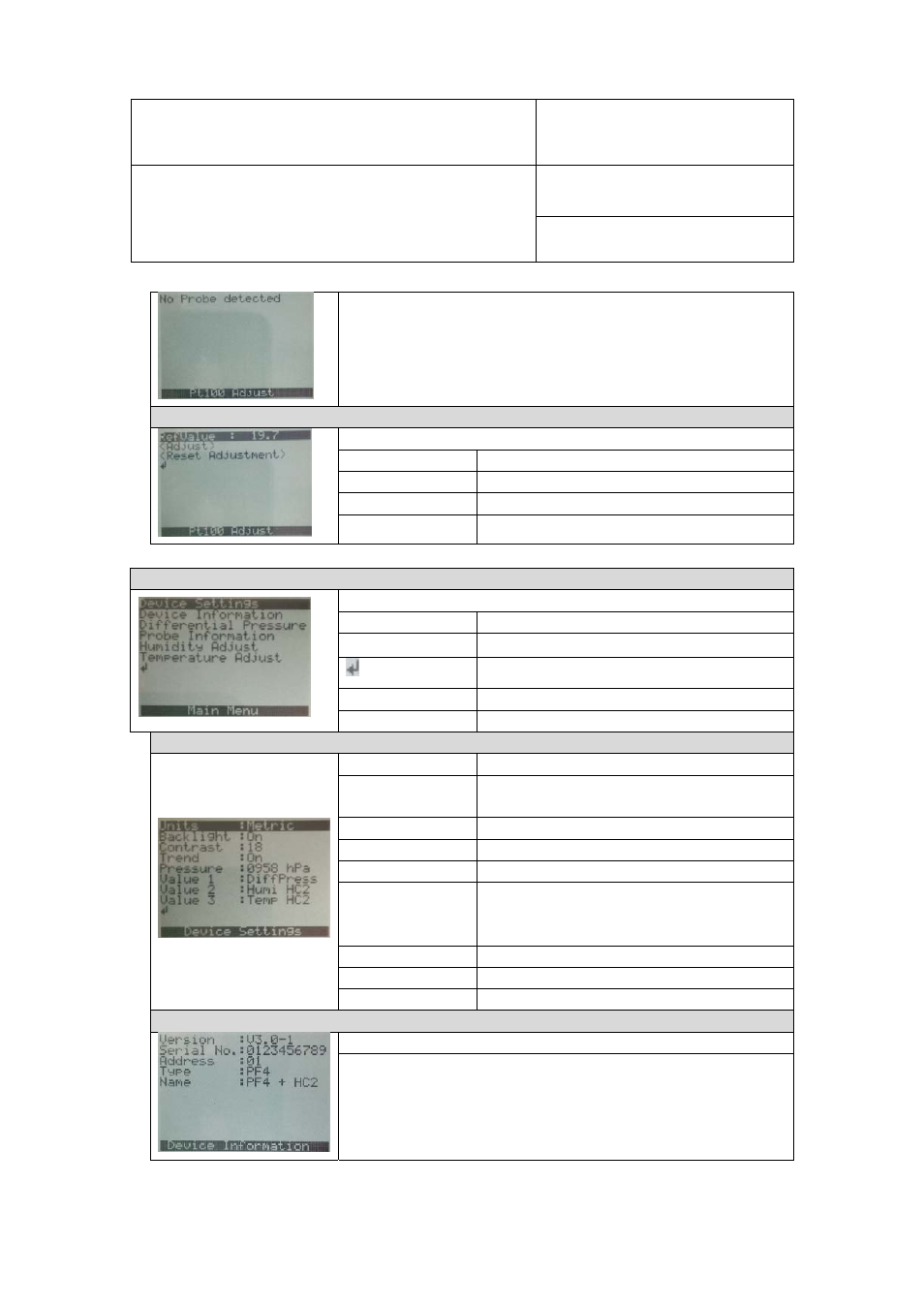

Display when a Pt100 sensor is not connected
Pt100 Adjust (2)
Display when a Pt100 sensor is connected
Select Options
RefValue The current temperature shown can be changed
Applies change to RefValue
Cancels the last change made with
Variant 3: Differential pressure & HC2 connection
Main Menu
Menu Navigation (valid for all menus)
Select Options
 (Enter key) Selection of the menu point
or menu Return; menu one level up
+ Line up; option right
- Line down; option left
Device Settings
Select Options
Units
Unit for the ambient pressure (Pressure):
Metric , English
Backlight On , Off, Key Press
Contrast 0…99 (suitable setting 15…40)
Trend On , Off
Pressure
Ambient pressure (suitable setting: 950 - 1050 hPa):
0…9,999 hPa (Units: Metric)
0…9,999 inHg (Units: English)
Value 1 None, DiffPress, Humi HC2, Temp HC2, Calc
Value 2 None, DiffPress, Humi HC2, Temp HC2, Calc
Value 3 None, DiffPress, Humi HC2, Temp HC2, Calc
Device Information
The device information cannot be changed (except for "Name" and "Address").
"Name" and "Address" can be set with the HW4 software.
