Dwyer 32A User Manual
Page 7

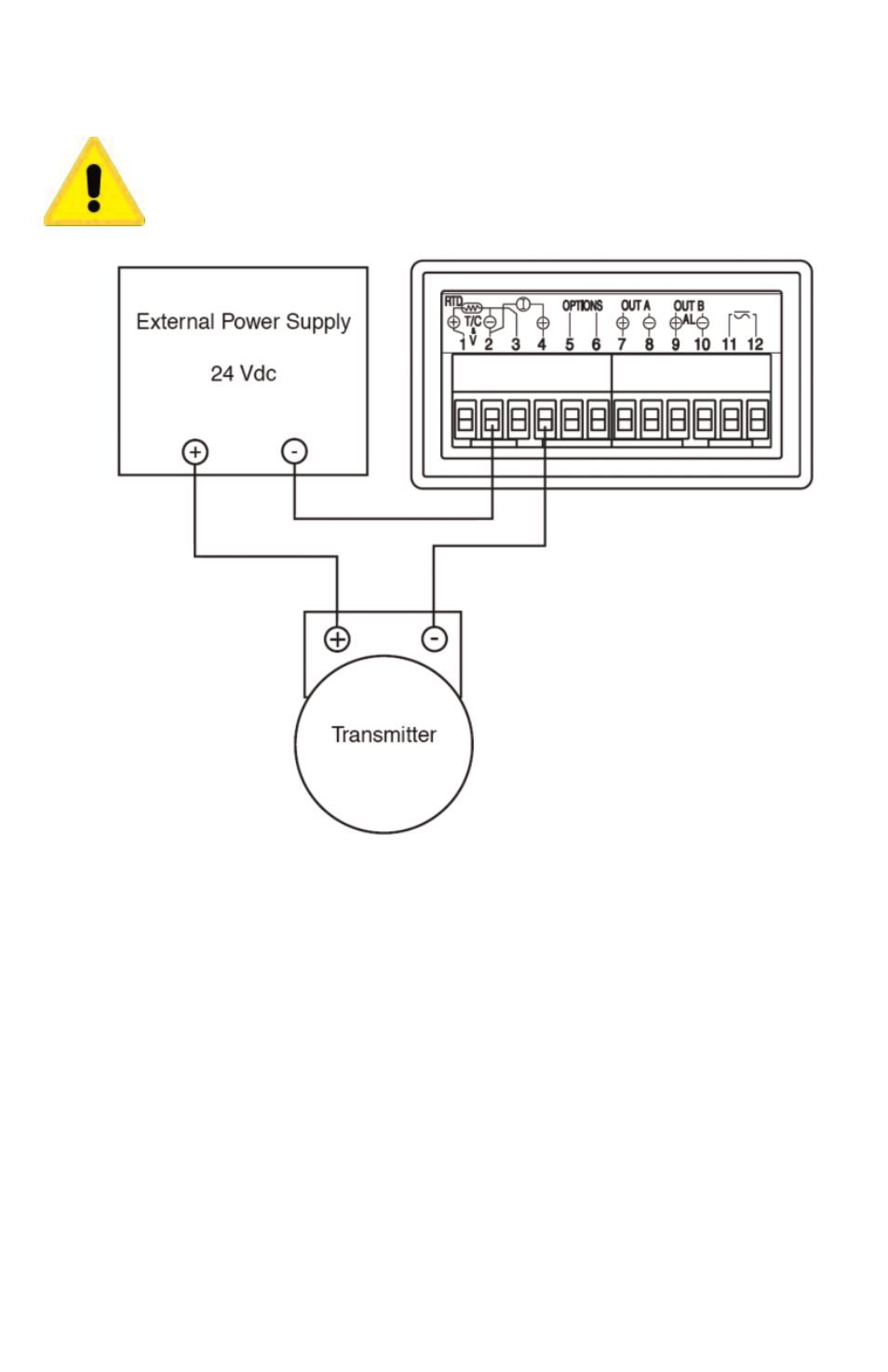

Wiring for 4 to 20mA Transmitter Inputs
Wire power and outputs as shown above. Two-wire transmitters wire as shown below.
For three or four wire transmitters, follow the wiring instructions provided with your transmitter.
DO NOT WIRE THE 24 VOLT POWER SUPPLY ACROSS THE INPUT OF THE CON-
TROL. DAMAGE TO THE CONTROL INPUT CIRCUITRY WILL RESULT.
Page 7
