Turbine Flow Sensor
Installation & Operating Instructions
Page 16
03/12 Form No. 05-TUR-UM-00194
VIII. APPENDIX
Dimensions
SERIES
A
WIDTH
IN (mm)
B
LENGTH
IN (mm)
C
HEIGHT
IN (mm)
D
HEIGHT
IN (mm)
WEIGHT
LBS
(KG)
F6202 / F6222
1.23 (31.2)
4.72 (120.0)
1.47 (37.3)
5.74 (145.6)
1.60 (0.73)
F6204 / F6224
1.48 (37.6)
5.08 (129.0)
1.80 (45.7)
6.04 (153.0)
1.90 (0.86)
F6206 / F6226
1.98 (50.3)
5.87 (149.0)
2.20 (56.0)
6.50 (164.0)
2.80 (1.27)
F6208 / F6228
2.46 (62.5)
6.81 (173.0)
2.48 (63.0)
6.74 (171.0)
4.20 (1.91)
SERIES
A
WIDTH
IN (mm)
B
LENGTH
IN (mm)
C
HEIGHT
IN (mm)
D
HEIGHT
IN (mm)
WEIGHT
LBS
(KG)
F6202 / F6222
1.23 (31.2)
4.72 (120.0)
1.47 (37.3)
5.74 (145.6)
1.60 (0.73)
F6204 / F6224
1.48 (37.6)
5.08 (129.0)
1.80 (45.7)
6.04 (153.0)
1.90 (0.86)
F6206 / F6226
1.98 (50.3)
5.87 (149.0)
2.20 (56.0)
6.50 (164.0)
2.80 (1.27)
F6208 / F6228
2.46 (62.5)
6.81 (173.0)
2.48 (63.0)
6.74 (171.0)
4.20 (1.91)
SERIES
A
WIDTH
IN (mm)
B
LENGTH
IN (mm)
C
HEIGHT
IN (mm)
D
W/MAG
IN (mm)
E
W/IFC
IN (mm)
WEIGHT
LBS
(KG)
FSC-375
1.25 (32)
5.00 (127)
1.50 (38)
3.91 (99)
5.48 (139)
1.25 (0.57)
FSC-500
2.00 (51)
6.50 (165)
2.00 (51)
4.16 (106)
5.84 (148)
2.75 (1.25)
FSC-750
2.00 (51)
6.50 (165)
2.00 (51)
4.25 (108)
5.93 (151)
2.87 (1.30)
FSC-1000
2.50 (64)
6.50 (165)
2.00 (51)
4.34 (110)
5.97 (152)
3.25 (1.48)
FSC-1005
2.50 (64)
6.50 (165)
2.00 (51)
4.34 (110)
5.97 (152)
3.25 (1.48)
FSB-1250
4.00 (102)
7.00 (178)
3.00 (76)
4.94 (126)
6.43 (165)
7.75 (3.52)
FSB-1500
4.00 (102)
7.00 (178)
3.00 (76)
5.10 (130)
6.59 (167)
7.40 (3.36)
FSD-1250
2.12 (54)
7.50 (190)
2.125 (54)
4.50 (114)
5.17 (131)
6.12 (2.78)
FSD-1500
2.50 (64)
7.50 (190)
2.500 (64)
4.85 (123)
5.34 (135)
6.75 (3.06)
FSD-2000
3.12 (79)
8.25 (209)
3.125 (79)
5.39 (137)
5.45 (138)
8.55 (3.88)
SERIES
A
WIDTH
IN (mm)
B
LENGTH
IN (mm)
C
HEIGHT
IN (mm)
D
W/MAG
IN (mm)
E
W/MAG
IN (mm)
WEIGHT
LBS
(KG)
FSC-2005
2.00 (51)
6.50 (165)
2.00 (51)
4.16 (106)
4.05 (102)
2.75 (1.25)
FSC-2075
2.00 (51)
6.50 (165)
2.00 (51)
4.25 (108)
4.05 (102)
2.87 (1.30)
FSC-2100
2.50 (64)
6.50 (165)
2.00 (51)
4.34 (110)
4.59 (117)
3.25 (1.47)
FSC-2150
2.50 (64)
6.50 (165)
2.00 (51)
4.34 (110)
4.59 (117)
7.75 (3.52)

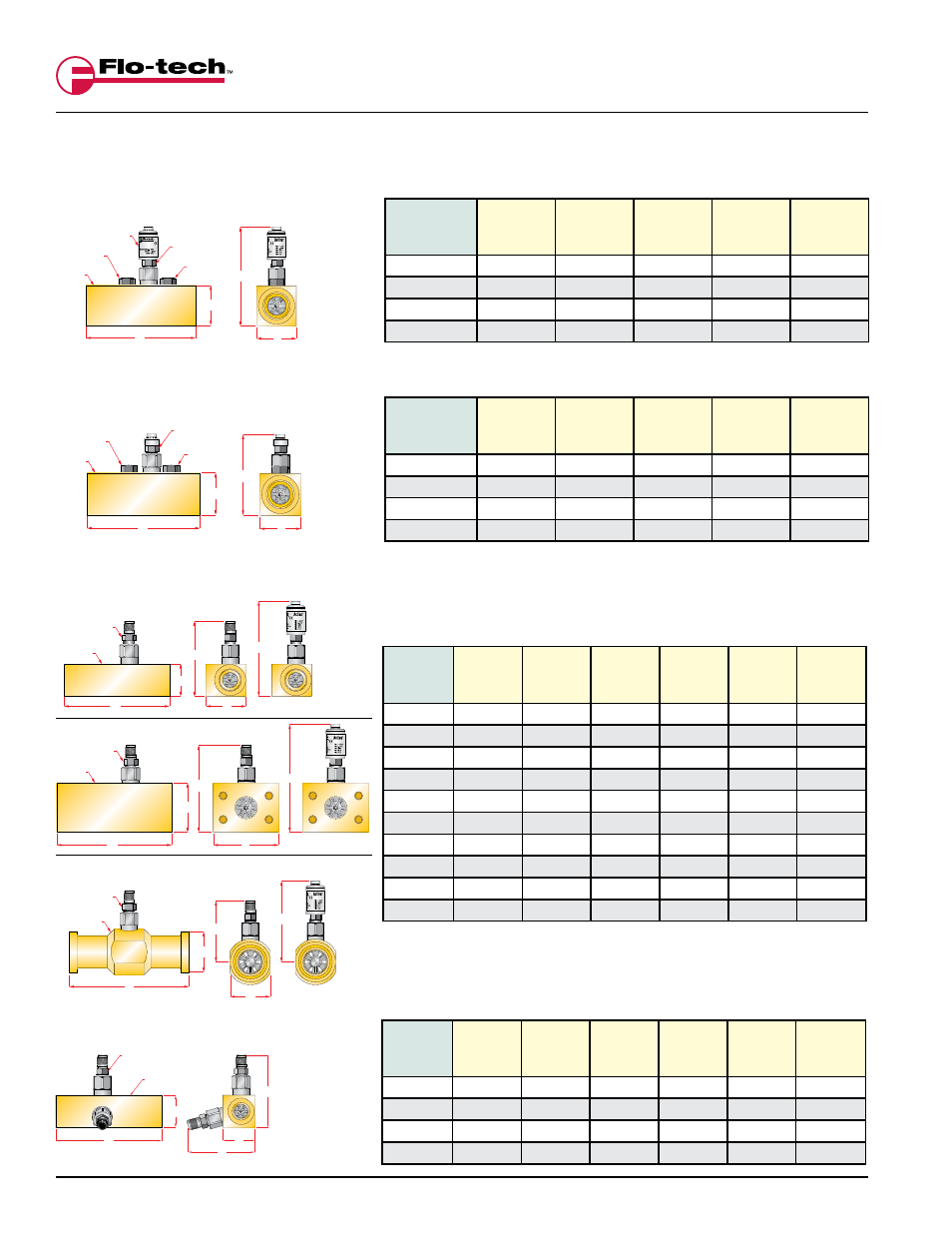

FSC
Quad Series
Classic Series
Ultima Series
Activa Series
FSB
FSD
A
B
Magnetic Pickup
Housing
C
D
E
B
C
D
A
E
Magnetic Pickup
Housing
B
A
Magnetic Pickup
Housing
C
D
Pressure Port
Adapter
Temperature Port
Adapter
Signal Converter
B
C
Magnetic Pickup
Housing
A
D
E
B
A
Magnetic Pickup (2)
Housing
C
E
D
B
A
Magnetic Pickup
Housing
C
D
Pressure Port
Adapter
Temperature Port
Adapter
