Badger Meter 3-A Sanitary - Manual (Page 12)

Stnd. #28-04 Auth. #956
Retaining Ring
Thrust Ball (Removable)
Sleeve Bearing
Rotor Assembly
Meter Body
Jam Nut
Magnetic Pickup
Rotor Support
Manufacturer’s Label
and 3-A Symbol
B16C 3-A Series (COP/SOP) FloClean Meters

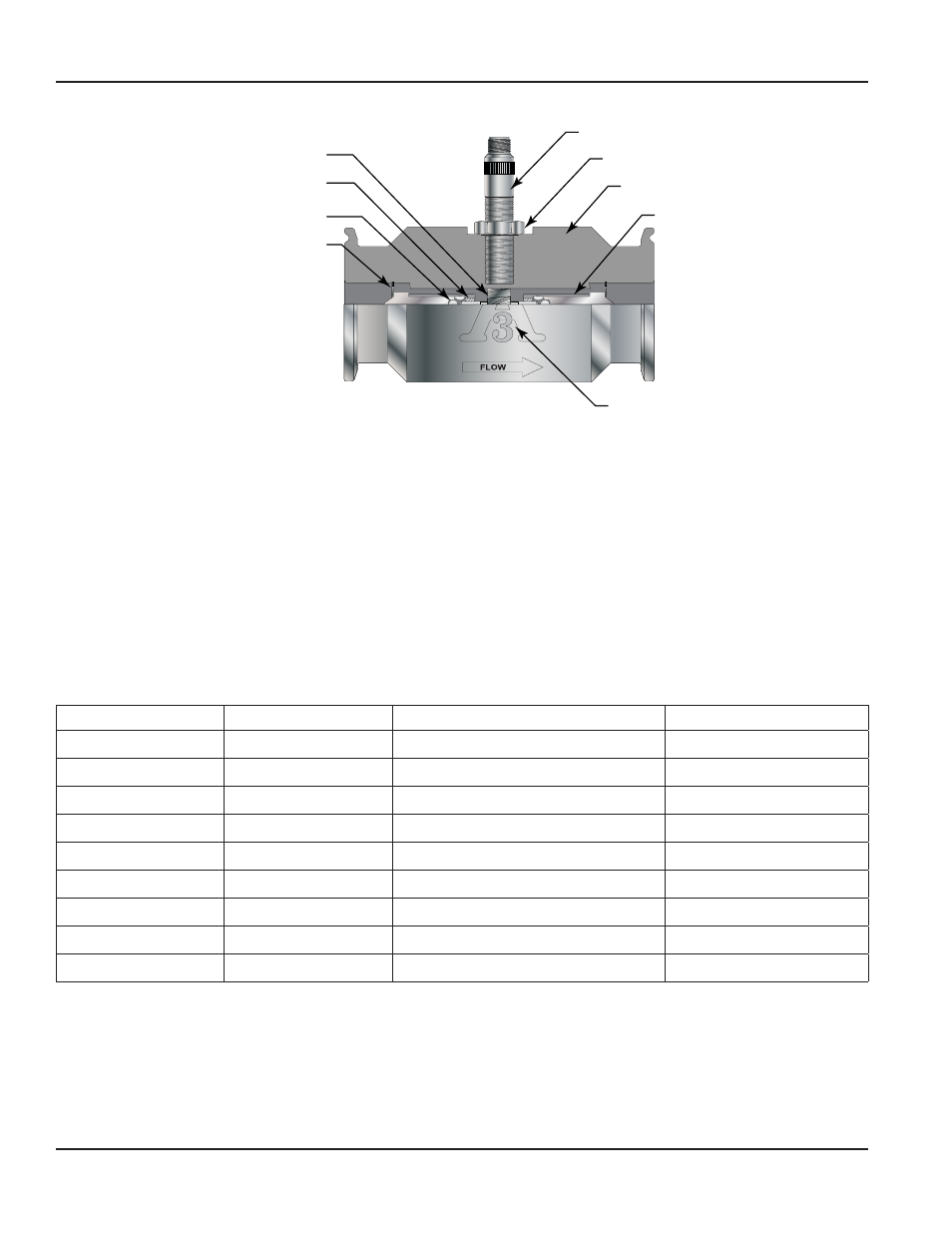

Figure 9: FloClean cross sections
METER REPAIR AND CLEANING
Repair Kits
Each FloClean repair kit is factory calibrated to ensure accuracy throughout the entire flow range Each kit is complete and
includes a new K factor, which is the calibrated number of pulses generated by each gallon of liquid This K factor will be used
to recalibrate the monitor or other electronics to provide accurate output data
Turbine Repair Kits Part Numbers
Bore Size Ferrule Size Repair Kit Fits Meter Part Number Repair Kit Part Number
3/8 in 0 984 in B16C-003A-XXX B16C-K03A
1/2 in 0 984 in B16C-005A-XXX B16C-K05A
3/4 in 0 984 in B16C-007A-XXX B16C-K07A
1/2 in 1 984 in B16C-105A-XXX B16C-K05A
3/4 in 1 984 in B16C-107A-XXX B16C-K07A
7/8 in 1 984 in B16C-108A-XXX B16C-K08A
1 in 1 984 in B16C-110A-XXX B16C-K10A
1-1/2 in 1 984 in B16C-115A-XXX B16C-K15A
2 in 3 047 in B16C-220A-XXX B16C-K20A
Table 5: B16C 3-A series (COP/SOP) FloClean meters
Turbine Flow Meter, FloClean Sanitary Flow Meter
Page 12 November 2013
