Pickup Option 3
A = Power
B = Common
C = Output Signal
Pins
Pickup Option 2 & 6
Standard
Mag Pickup
(Socket End)
Amplified
Mag Pickup
(Socket End)
A = Signal
B = Signal
Pins
A - Blue (+) = Signal
B - Yellow (-) = Signal
B A
B - Black = Common
A - Red = Power (5…30V DC)
C - Green
or
Clear
= Output Pulse
(0…10V DC)
C
B
A

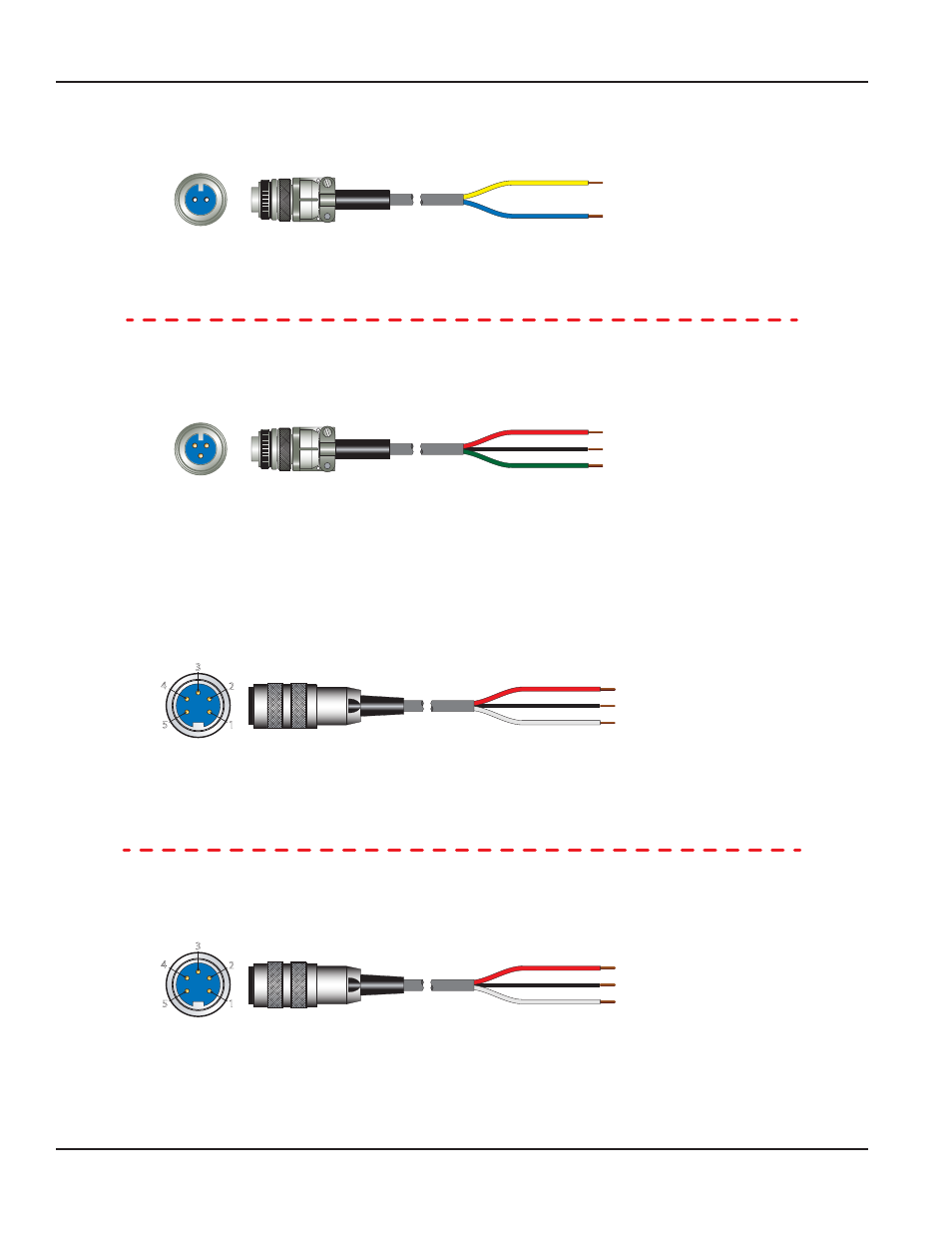

Figure 6: Wiring for non-NEMA 6 magnetic pickups
Pickup Option 8
Pickup Option 4
2 - Black = 0...5V DC Output
1 - Red = 10...30V DC
3 - White = Ground
3
2 4
5 1
Active Sensor
0...5V DC
(Socket End)
1 = 10...30V DC
2 = 0...5V DC Output
3 = Ground
4 = N/C
5 = N/C
Pins
2 - Black = -4...20 mA
1 - Red = +4...20 mA
3 - White = Not Used
3
2 4
5 1
Active Sensor
4...20 mA
(Socket End)
1 = Loop (+)
2 = Loop (-)
3 = N/C
4 = N/C
5 = N/C
Pins
Figure 7: Wiring for active magnetic pickups
