The same linearization table is used for input 1 and input 2.

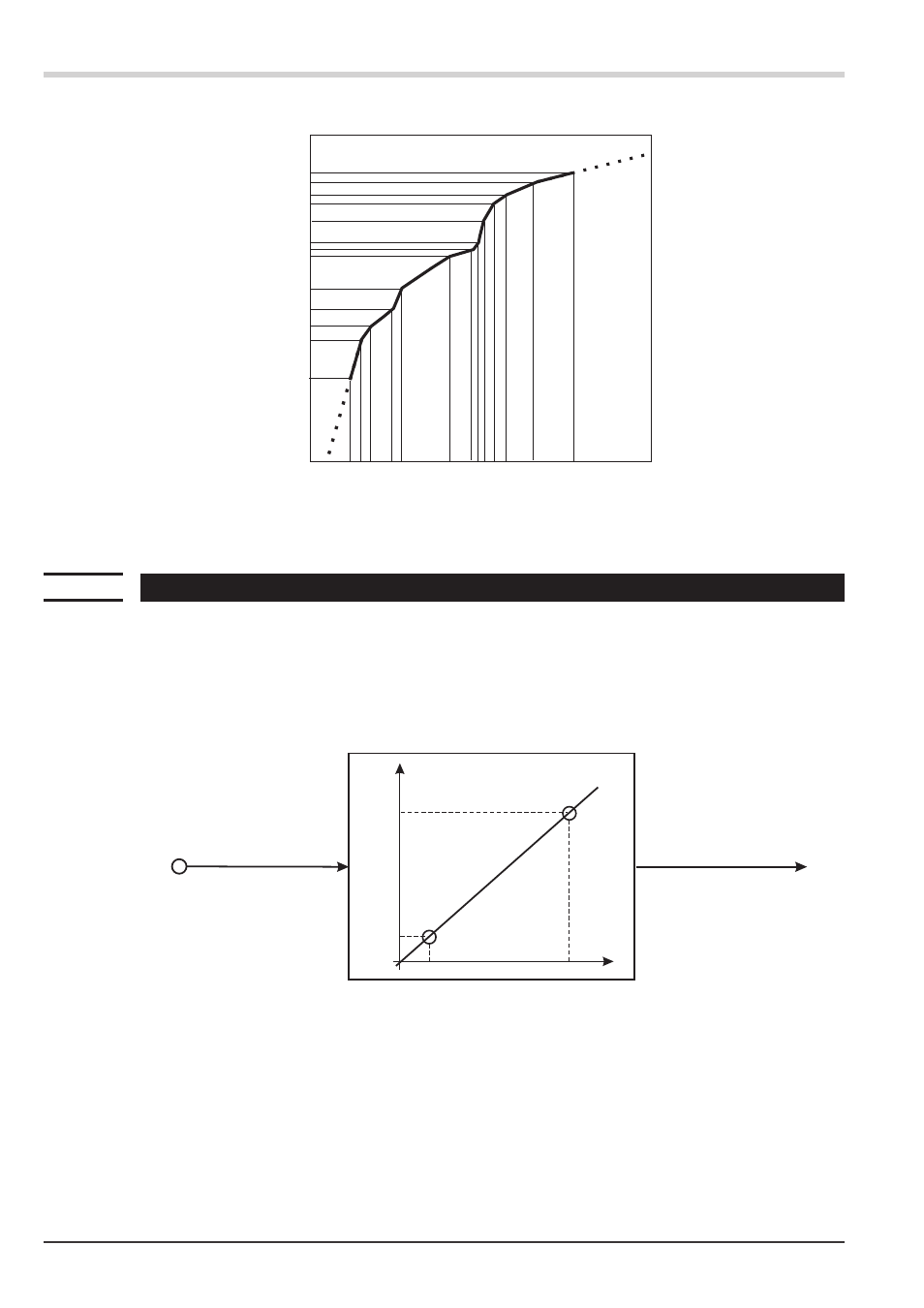

6.2 Input scaling
Scaling of input values is possible. After any linearization, measurement value correction is according to the offset or
two-point method.
g
When using current or voltage signals as input variables for InP.x, the input and display values should
be scaled at the parameter level. Specification of the input value of the lower and upper scaling point is in
units of the relevant physical quantity.
g
Parameters InL, OuL, InH and OuH are visible only with ConF / InP / Corr = 3 selected.
Parameters InL and InH determine the input range.
Example with mA:
InL= 4 and InH = 20 means that measuring from 4 to 20 mA is required (life zero setting).
Functions
20 Input scaling UNIFLEX CI 45
mA/V
phys.
size
mA / V
phys. size
OuH.x
OuL.x
InH.x InL.x
Example for mA/V
Ou.32
Ou.1
.
.
.
.
.
.
In.1 In.32
