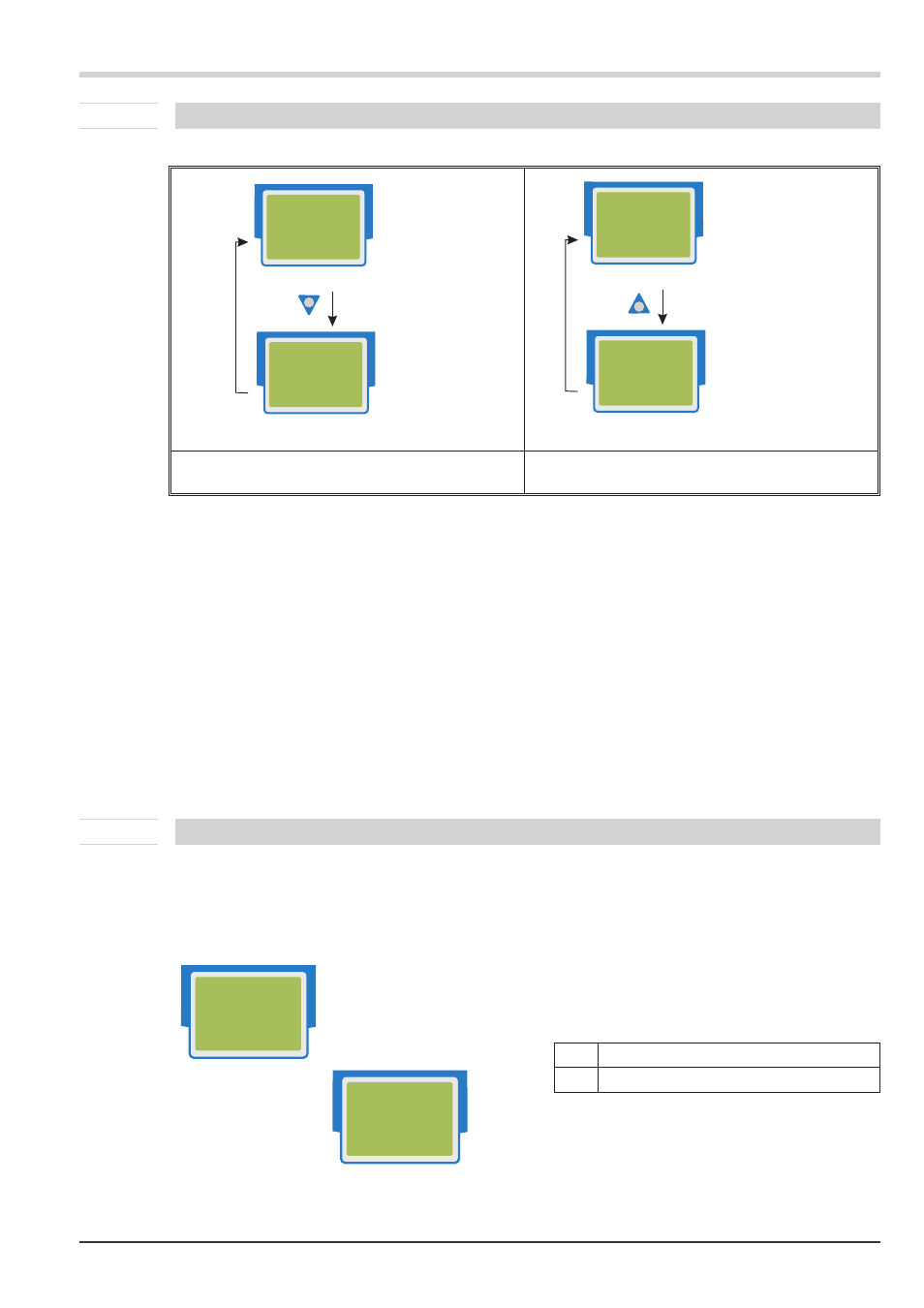

5.4.4 Slave pointer function
The minimum and maximum input values are stored in the unit.
The minimum input value is displayed as long as key Ì is
pressed. The maximum input value is displayed as long as key È
is pressed.
Deleting the minimum value
The minimum value is deleted by pressing key È whilst key Ì is kept pressed.
Whether the minimum value should be deleted also by the digital input (
rES.L) can be determined during
configuration.
Deleting the maximum value
To delete the maximum value, press key Ì whilst keeping key È pressed.
Whether the maximum value should be deleted also by the digital input (
rES.H) can be determined during
configuration.
Deleting the minimum and maximum values is possible also via interface.
g
When de-energizing UNIFLEX CI 45, the minimum and maximum values are deleted.
g
In case of error of the display value (e.g. input fail behaviour), the minimum and maximum values are also
set to FAIL. When a valid value is displayed again, the minimum and maximum value are deleted.
5.4.5 Selecting the units
The unit to be displayed is determined via configuration D.Unt.
With selection “1 = temperature unit” , the displayed unit is determined by configuration Unit with the relevant
conversions for Fahrenheit and Kelvin.
By selecting D.Unt = 22, display of any max. 5-digit unit or text can be determined.
1
Unit (example): kilowatt hour
2
Text (example): TAG no.
Operation
UNIFLEX CI 45 Operating level 17
1 2 F E
450.3
26.7
дььь
1 2 F E
450.3
ыC
дььь
min
1 2 F E
450.3
502.4
дььь
1 2 F E
450.3
ыC
дььь
max
1 2 F E
4.5
kWh
дььь
1 2 F E
450.3
TI451
дььь
1
2
