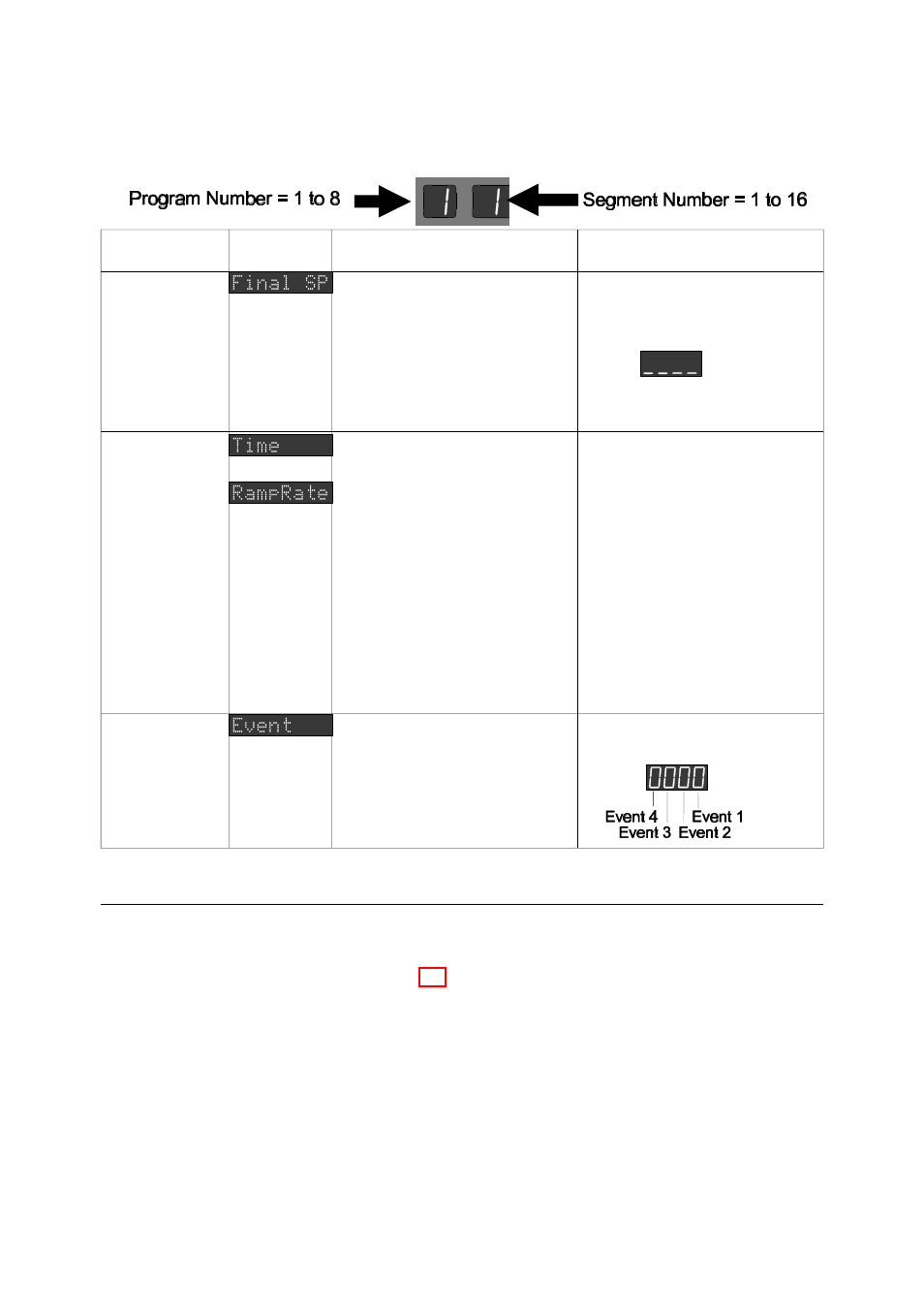

8.4 PARAMETERS IN ANY/EACH SEGMENT IN A SPECIFIC
PROGRAM
Parameter Message
Display
Function Available Settings
(Lower Main Display)
Final Setpoint
Value
Defines the final setpoint value for
this segment, selects a Dwell
segment or indicates a Join,
Repeat or End Marker
Numeric value (limited by SPHi
and SPLo) or (by pressing the Up
and Down keys simultaneously)
indicates a Dwell segment with:
or, if the segment is already a
Join, Repeat or End Marker, as
shown below.
(a) Segment
Time or (b)
Ramp Rate, as
selected in
Configuration
Mode (see Site
Manual)
or
as
appropriate
Defines (a) the duration in
hours.minutes (x60 OFF) or
minutes.seconds (x60 ON) or (b)
ramp rate in units/hour (x60 OFF)
or units/minute (x60 ON) for this
segment, or (c) whether it is a
Join Marker, Repeat Marker or
End Marker
6
Four-digit number (a) nn.nn
(00:00 to 99.59) for Segment
Time, (b) nnnn (0000 to 9999) for
Ramp Rate or (c) negative values
as follows:
J01 Join to Program 1
J02 Join to Program 2
J03 Join to Program 3
J04 Join to Program 4
J05 Join to Program 5
J06 Join to Program 6
J07 Join to Program 7
J08 Join to Program 8
REP Repeat Marker
End
End Marker
Event
7
Defines the states of the four
event outputs for this segment
Four-bit binary number
(0 - inactive, 1 = active):
Page 8-5 59215-8
59215
6 If a segment is set to be a Join Marker, a Repeat Marker or an End Marker, the next depression of
the Scroll key will set the Segment Number to A and the first parameter common to the whole
program (Cycle Count - see Subsection 8.3) will be displayed. Otherwise, the next depression of
the Scroll key will display the next segment parameter - Event (for the current segment) if the Event
Output hardware is fitted.
7 This parameter appears in the sequence only if the Event Output hardware is fitted, in which case
this parameter will be followed by the Final Setpoint Value parameter for the next segment. If the
Event Output hardware is not fitted, this parameter will be omitted from the parameter sequence
and the Segment Number will be advanced, causing the Final Setpoint Value parameter for the
next segment to appear immediately.
