3.5 VIEWING PROGRAM PROGRESS/STATUS
In Program Run Mode, a number of displays are made available to the operator (in the
Message Display area) which indicate program progress/status. Whilst the current
program is running, held or delayed, press the Scroll key to cycle through a sequence of

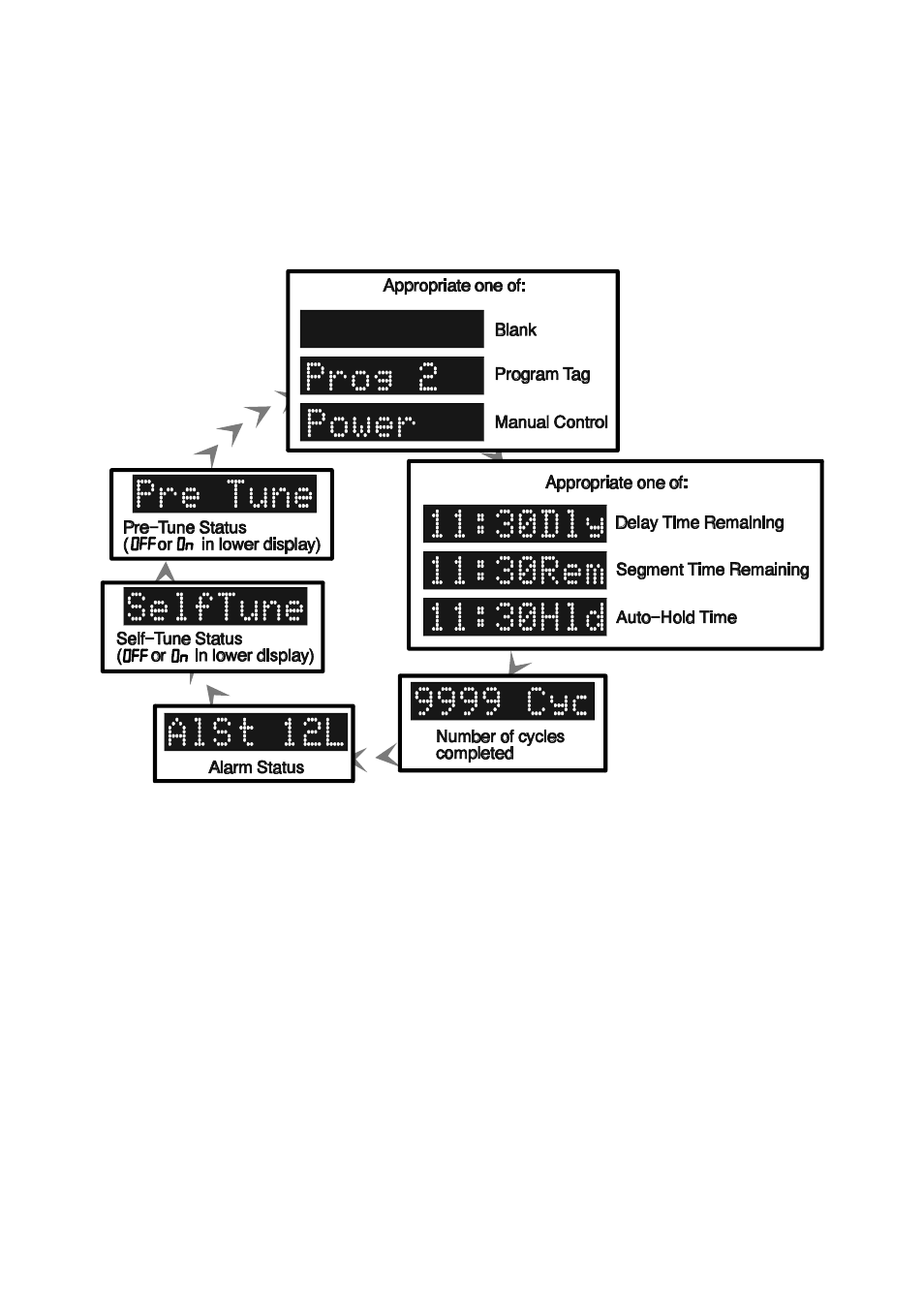

program status displays with the following legends in the Message Display:
In the case of Segment Time Remaining or Auto-Hold Time display, the time is in
hours/minutes (if the x60 indicator is OFF) or minutes/seconds (if the x60 indicator is ON).
The Delay Time display is always in hours/minutes.
NOTE: If the Scroll key is held for two seconds or longer, the
Setpoint Programmer will auto-scroll through the above display cycle
(with the exception of the Self-Tune and Pre-Tune displays). To stop
the Auto-scroll, press any key other than the Scroll key.
Af ter all ap pli ca ble pro gram status/prog ress dis plays have been shown, press the Scroll
key to re turn to the Base Mode dis plays.
