ADJUSTING THE SETPOINT
With the
Setpoint Programmer in Base Mode (i.e. with the RUN, HLD, SET and PRG
indicators OFF), the two main displays will show the process variable value (upper display)
and the setpoint value (lower display - Read Only). To change the setpoint value:

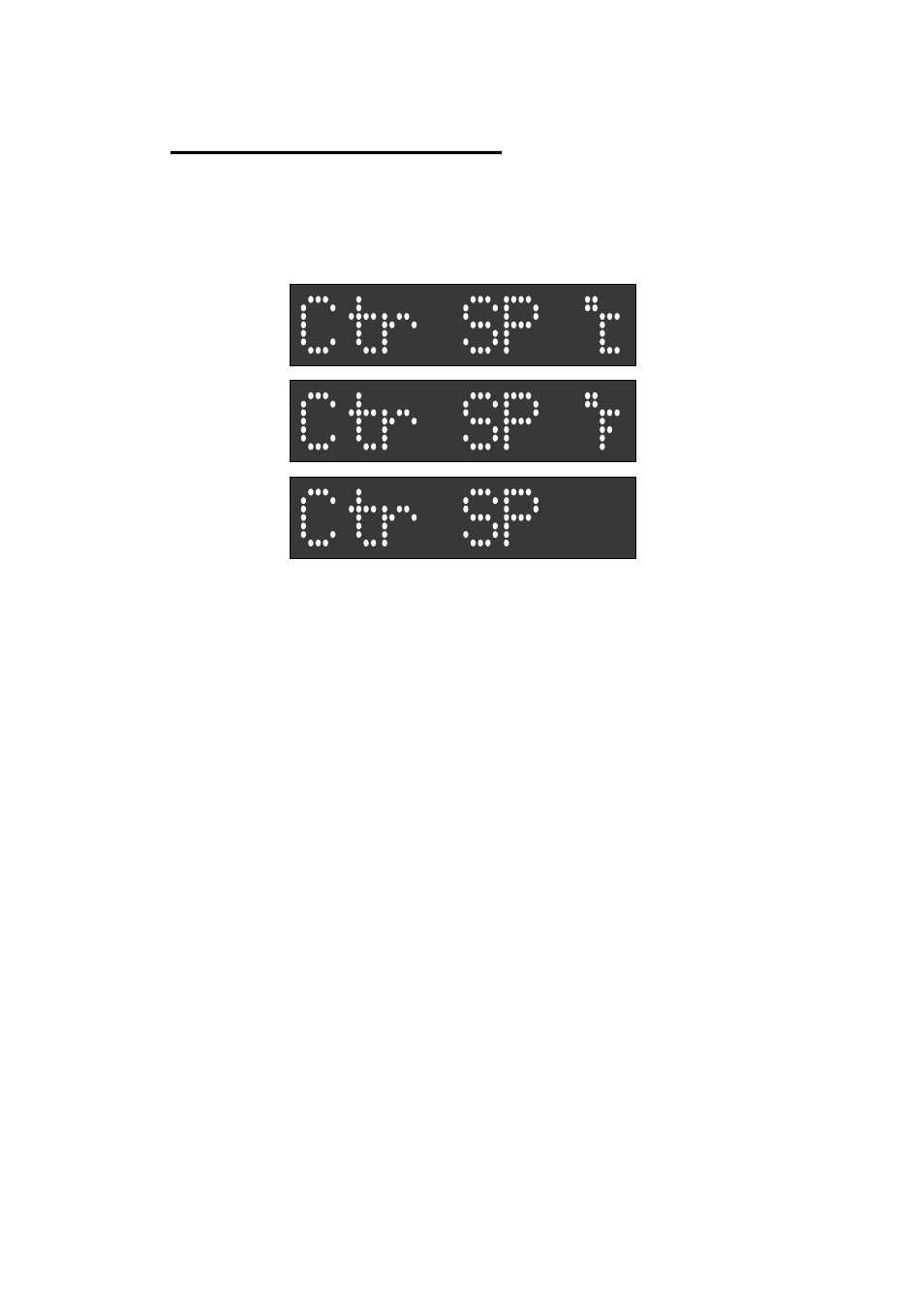

1. Press the Scroll key; the Mes sage Area will dis play one of:
ac cord ing to in put range.
2. Use the Up and Down keys to change the set point value (in the lower
dis play) as re quired.
3. When the set point value is set as de sired, press the Scroll key again to
re turn to the ini tial dis play.
