INSTALLATION
See also the Safety Information sections on pages 5 to 14.

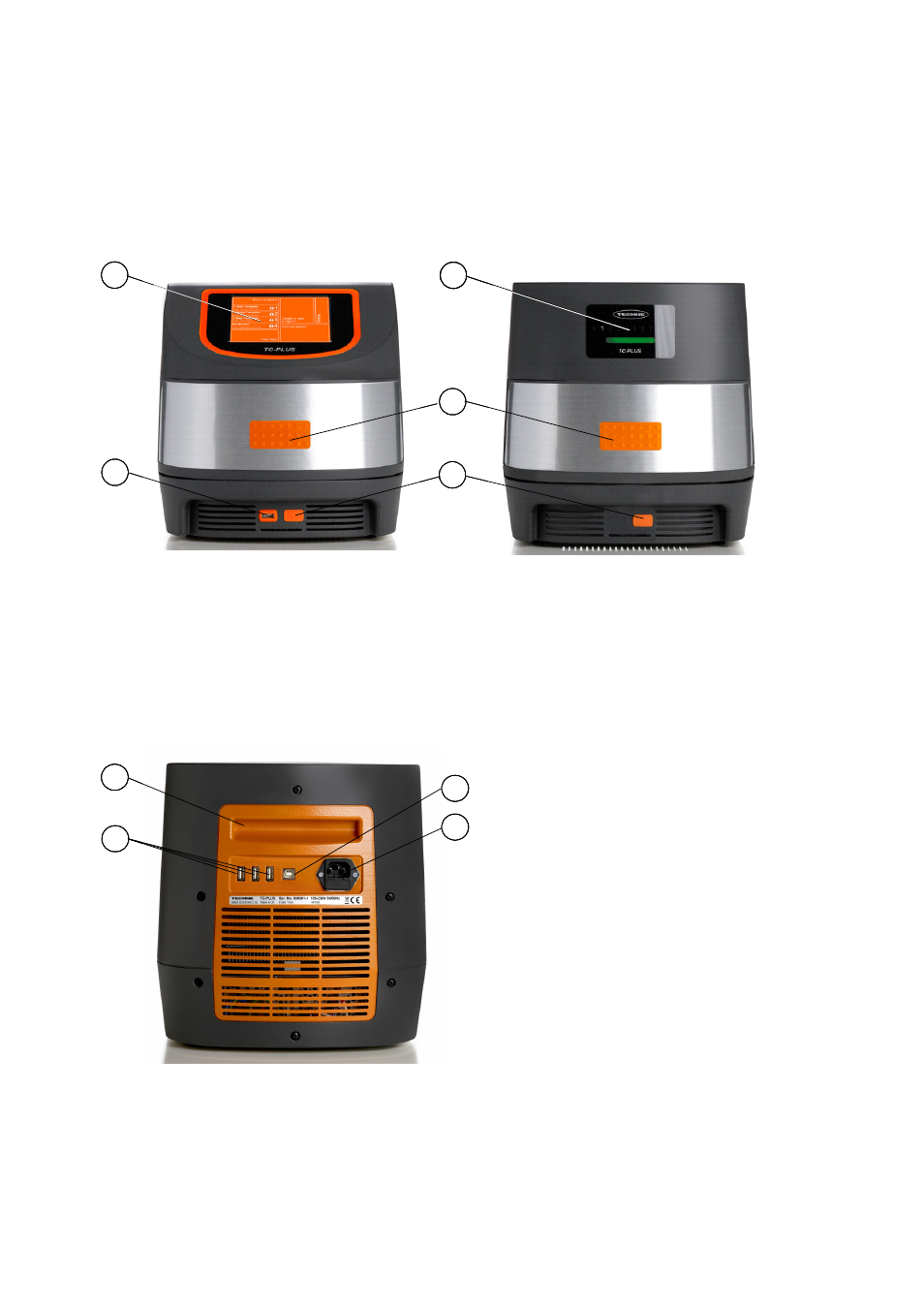

Front view
TC-PLUS TC-PLUS Satellite
1. TC-PLUS 5.7” colour VGA LCD touch screen display.
2. Drawer release push panel.
3. TC-PLUS USB port for memory stick.
4. Power on/off
5. TC-PLUS Satellite ID and status indicator.
Rear view
1. Lifting Handle.
2. USB ports for connection of Satellite units (TC-PLUS only).
3. USB port for connection to PC or TC-PLUS (Satellite units only).
4. Mains cable inlet.
1
2
3
4
11
22
33
44
5 1
2
3 4
555 11
22
33 44
