2.1

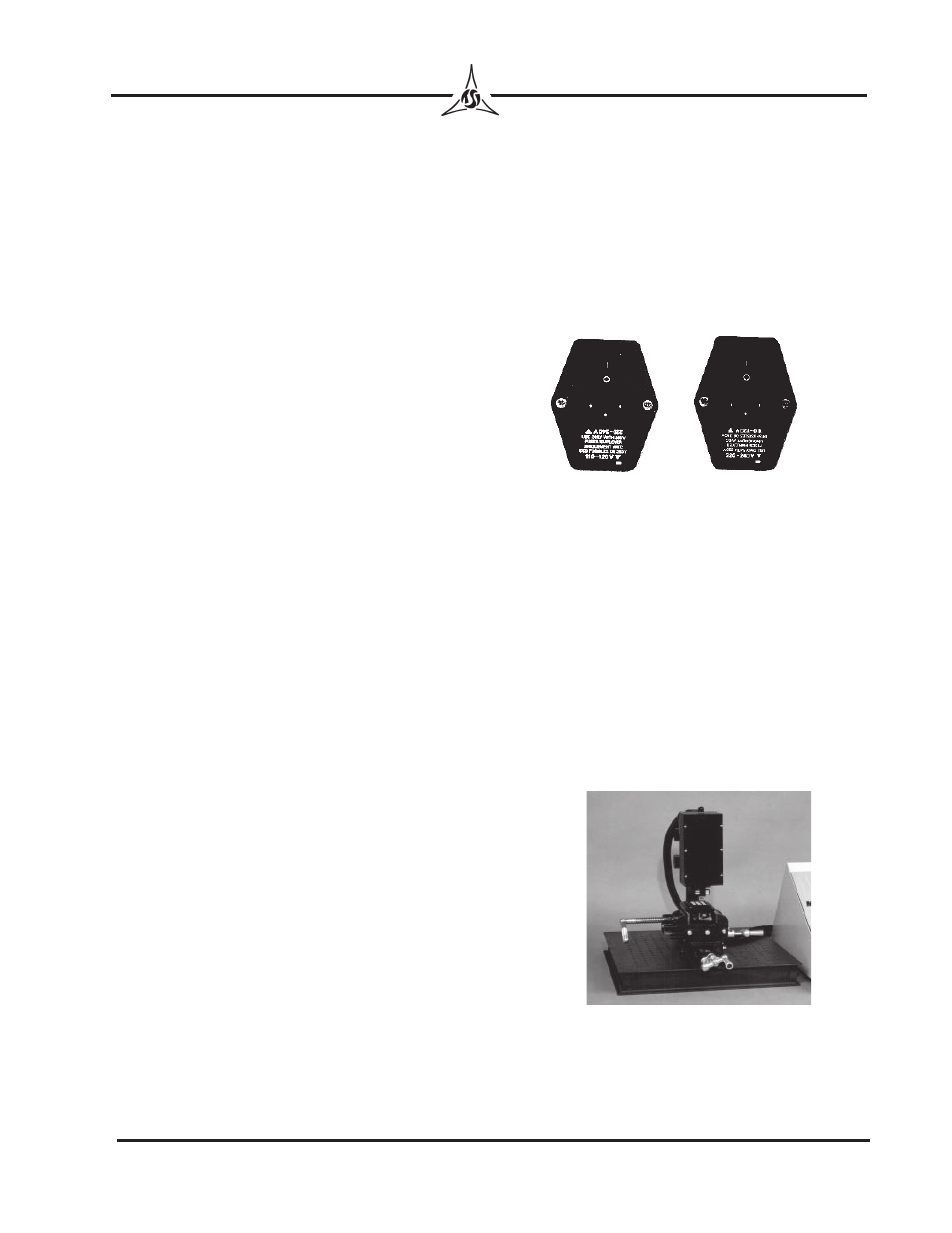

110-120V 220-240V
SECTION 2
SETUP AND INTERCONNECTION
2.1 HARDWARE
The power entry module (C-Figure 1.1)
must be set for the user's facility power.
The 921A is normally supplied configured
for 110-120 V ac, 60 Hz. To reconfigure
the 921A for 220-240 V ac, 50-60 Hz
rotate the slideout voltage selector and
position it accordingly. Plug the power
cord into the 921A power entry module
and into a properly grounded outlet.
2.2 PC CONNECTION
The 921A must be connected to a PC to upload configuration data to the
station or download test data to the PC. Connect a PC with an open
communication channel to the 921A using the serial communication cable
supplied with the unit (see Figure 1.4 or 1.5) between the PC Serial COM port
connector and 921A connector J1 (A-Figure 1.1). Tighten the connector
securing screws to ensure a secure connection. If the cable supplied with the
921A is not long enough, a generic 1:1 25-pin
D-type extension cable can be used with the
cable supplied.
2.3 SOFTWARE
Refer to DFR Operations Software Manual.
Typical Test Fixture
Setup
