Operation
31
38857
Step 7: Start Washer

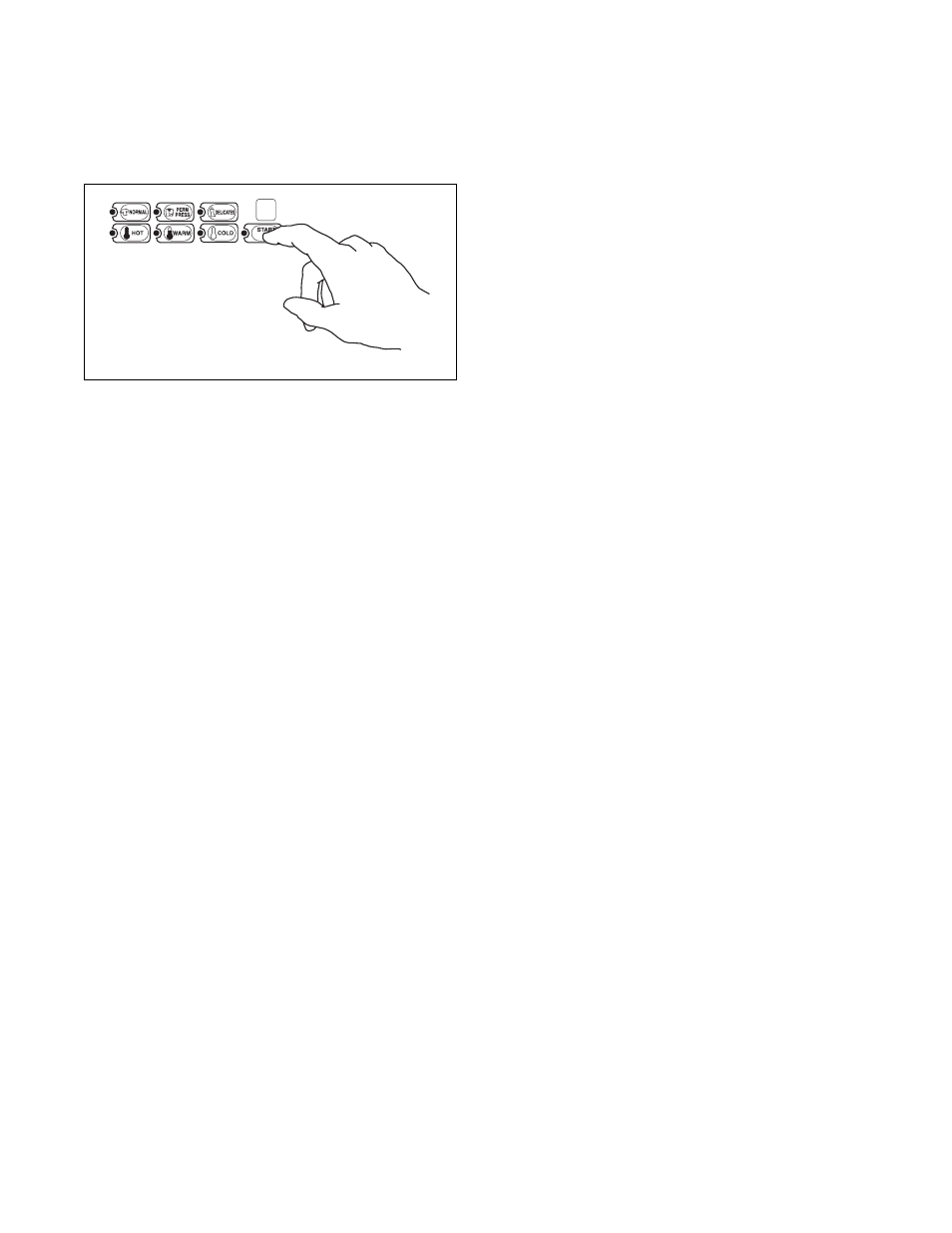

After vend price has been satisfied, push the START
pad. LID MUST BE CLOSED TO START WASHER.
Figure 47
Indicator Lights
WASH
WASH is lit at the beginning of a Wash cycle and will
remain lit until the Wash cycle is complete.
RINSE
RINSE is lit at the beginning of the Rinse or Extra
Rinse cycle and will remain lit until the cycle is
complete.
SPIN
SPIN is lit for all Spin cycles.
ADD COINS/INSERT CARD
ADD COINS/INSERT CARD is lit to prompt the user
to insert coins or a card to satisfy the vend price. When
ADD COINS/INSERT CARD is lit, the digits and
decimal point show the vend price remaining to be
satisfied.
REMOVE CARD (Card Models Only)
REMOVE CARD flashes after the START pad has
been pressed and the vend has been deducted from the
card.
