Installation

38857

Additional Washer Security

(Coin Models Only)

Located on the service door of the washer is a flat

Phillips head screw. During shipment, this screw is

used to attach the service door to the meter case. For

additional security, this screw can be reinstalled inside

the control hood of your washer.
The following list is the procedure required to install

the Phillips head screw and tamper-resistant screws:

1. Remove the Phillips head screw from service

door (refer to Figure 18).

2. Remove two screws holding control panel to

control hood.

3. Tilt control panel forward and lay on a protective

pad to prevent scratching of cabinet top.

4. Insert Phillips head screw down through double

“D” hole in left rear corner of cabinet top (inside

control hood) until it engages retainer nut located

on left rear corner gusset of cabinet.

5. Finger tighten screw.

IMPORTANT: Do not use a power driver to tighten
screw. Torque of a power driver could over-tighten
screw causing damage to cabinet assembly.

NOTE: Tamper-resistant screws, bits and bit
holder are available as optional equipment at extra
cost.

Enclosed in the shipping bag are four tamper-resistant

screws. When used, these screws will provide

additional security for your washer.

6. Secure control panel to control hood using two

No. 8 tamper-resistant screws, Part No. 35528.

7. Remove two screws holding front panel to base

of washer and install two No. 12 tamper-resistant

screws, Part No. 35527.

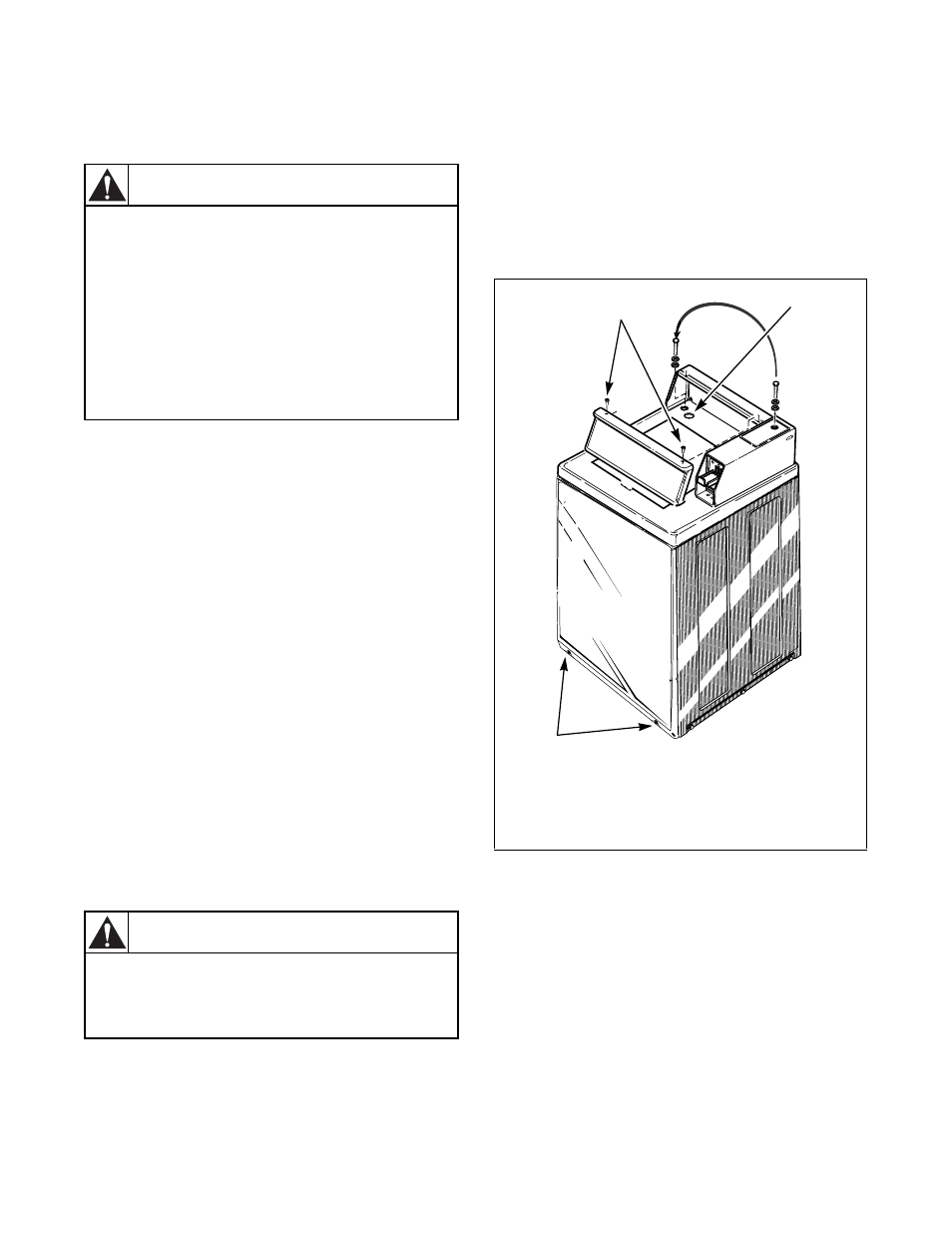

Figure 18

Bit (No. 8 screws) Part No. 281P4
Bit (No. 12 screws) Part No. 282P4
Bit Holder (3/8 drive) Part No. 24161
Control panel tamper-resistant screw Part No. 35528
Front panel tamper-resistant screw Part No. 35527

To reduce the risk of electric shock, fire,
explosion, serious injury or death:
• Disconnect electric power to the washer

before servicing.

• Never start the washer with any guards/

panels removed.

• Whenever ground wires are removed

during servicing, these ground wires
must be reconnected to ensure that the
washer is properly grounded.

W003

WARNING

Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.

W299

WARNING

W276I

35528 No. 8 Screws

Double “D” Hole

35227 No. 12 Screws

W276I
