Installation
38857 14
Electrical Requirements
(120 Volt, 60 Hertz with 3-Prong Grounding
Plug)
NOTE: The wiring diagram is located in the
control hood.
The washer is designed to be operated on a separate
branch, polarized, three-wire, effectively grounded,
120 Volt, 60 Hertz, AC (alternating current), circuit
protected by a 15 ampere fuse, equivalent fusetron or
circuit breaker.
The three-prong grounding plug on the power cord
should be plugged directly into a polarized three-slot
effectively grounded receptacle rated 110/120 Volts

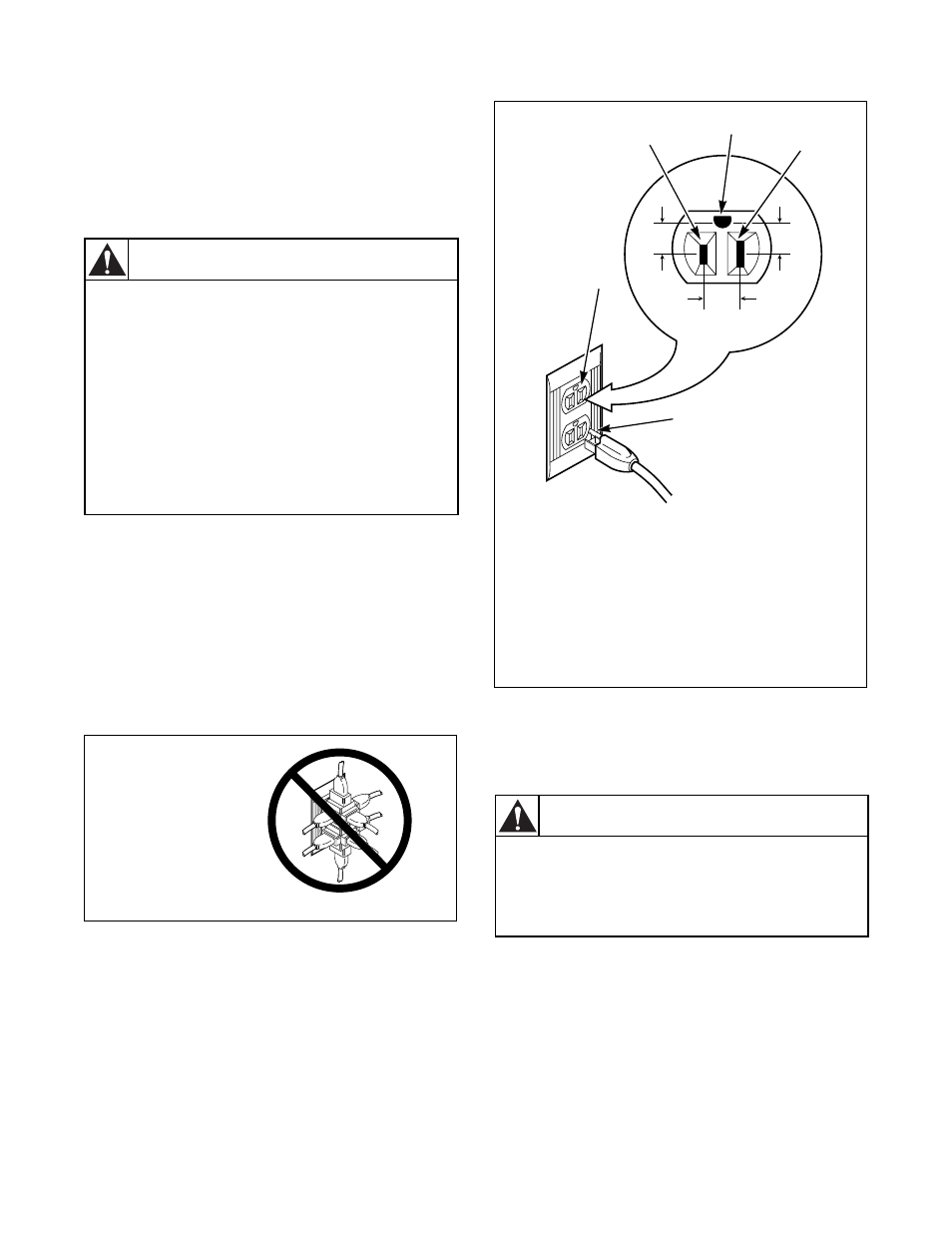

AC (alternating current) 15 Amps. Refer to Figure 14
to determine correct polarity of the wall receptacle.
Figure 13
Figure 14
DO NOT OPERATE OTHER APPLIANCES ON
THE SAME CIRCUIT. DO NOT OVERLOAD
CIRCUITS!
D009I
To reduce the risk of fire, electric shock,
serious injury or death, all wiring and
grounding MUST conform with the latest
edition of the National Electrical Code,
ANSI/NFPA No. 70, and such local
regulations as might apply. It is the
customer’s responsibility to have the
wiring and fuses checked by a qualified
electrician to make sure the laundry room
has adequate electrical power to operate
the washer.
W227
WARNING
DO NOT OVERLOAD
CIRCUITS
DO NOT USE
ADAPTER
DO NOT USE AN
EXTENSION CORD
D799I
1 L1
2 Ground
3 Neutral Side
4 Round Grounding Prong
5 Neutral
1
2
3
4
5
STANDARD 120 VOLT, 60 HERTZ,
3-WIRE EFFECTIVELY GROUNDED CIRCUIT
120 ± 12
V.A.C.
120 ± 12
V.A.C.
0
V.A.C.
To reduce the risk of an electric shock or
fire, DO NOT use an extension cord or an
adapter to connect the washer to the
electric power source.
W082
WARNING
