Installation

38857

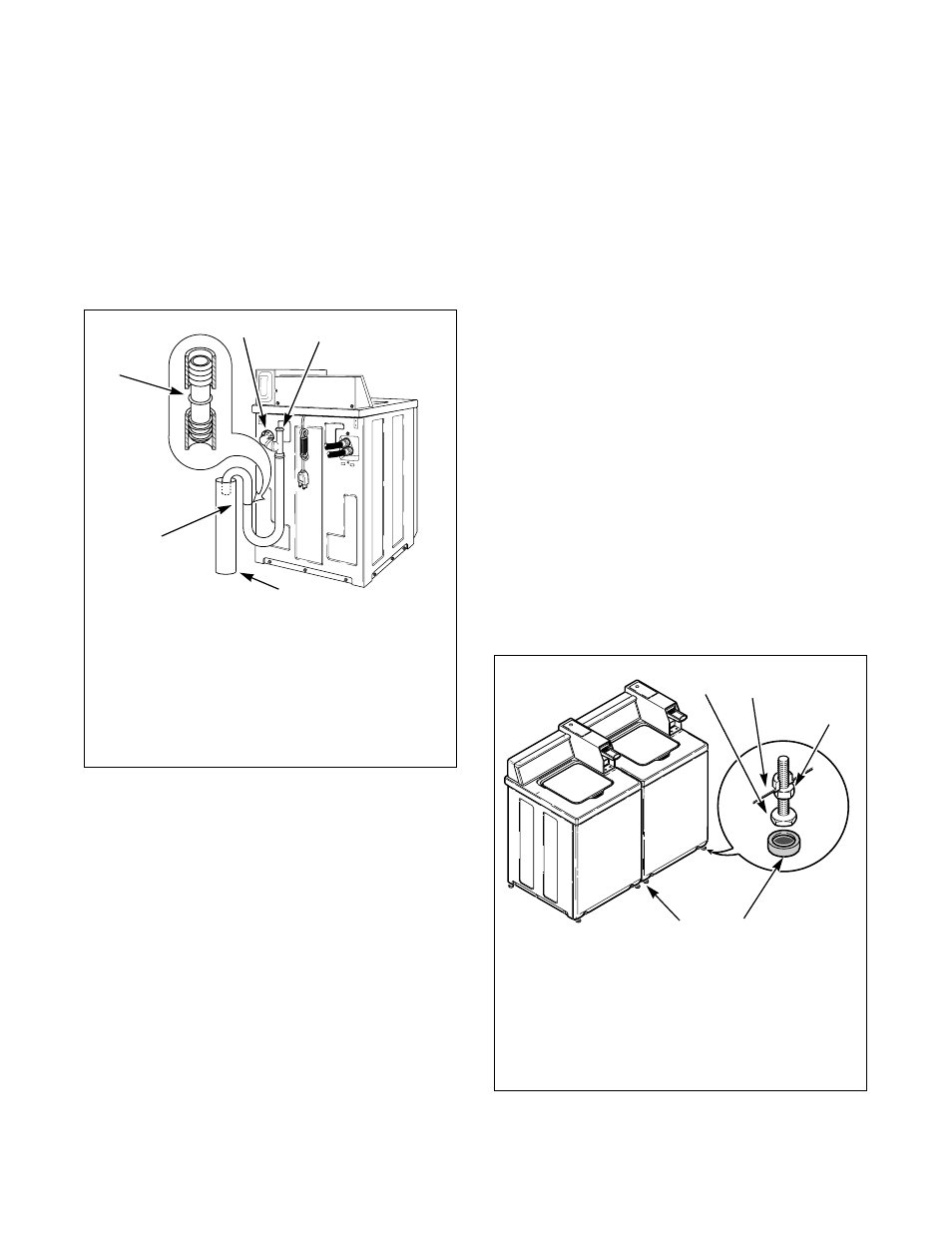

Low Standpipe Installation

NOTE: No. 562P3 Siphon Break Kit and No. 25863
Hose Coupling are required for this type of
installation. This kit is available (as optional
equipment at extra cost) through an authorized
dealer or parts distributor. Installation instructions
are supplied with the kit.

OPTIONAL: Raise the standpipe to the recommended

height of 36 inches (92 cm).

Figure 8

Step 5: Position and Level the Washer

Position washer so it has sufficient clearance for

installation and servicing.
Place rubber cups on all four leveling legs.
Place washer in position on a clean, dry, and

reasonably firm floor. Installing the washer on any

type of carpeting is not recommended.
Loosen locknuts and adjust the two front leveling legs.

Once adjusted, tilt the unit forward on front legs and

lower back down into position to set the rear self-

leveling legs.
Washer must not rock. After washer is at desired

height, tighten locknuts securely against bottom of

washer base. If these locknuts are not tight, washer

will not remain stationary during operation.
Improper installation or flexing of weak floor will

cause excessive vibration.
Do not slide washer across floor once the leveling legs

have been extended, as legs and base could become

damaged.

NOTE: For areas with uneven floors, a No. 566P3
Adjustable Rear Leg Extension Kit is available as
optional equipment at extra cost.

Verify that washer does not rock.

Figure 9

W295I

Drain Hose Elbow

562P3 Siphon Break Kit

Standpipe

Cut Hose in This Area and Install No. 25863
Hose Coupling

25863 Hose Coupling

W295I

{

W214I

Leveling Leg

Washer Base

Locknut

Rubber Cup

1/2 inch (15 mm) Clearance Between
Washers

W214I
