Installation
11 38857
Step 4: Connect Drain Hose to Drain
Receptacle
Refer to section on Drain Facilities before connecting
drain hose to drain receptacle.
Remove the drain hose from its shipping position on
the rear of the washer by unhooking the hose from the
retainer clamp.
Follow the instructions for your type of drain
receptacle (high standpipe or low standpipe) to
properly install the drain hose.
IMPORTANT: Drain receptacle must be capable of
handling a minimum of 1-1/2 inch (3.8 cm) outside
diameter drain hose.

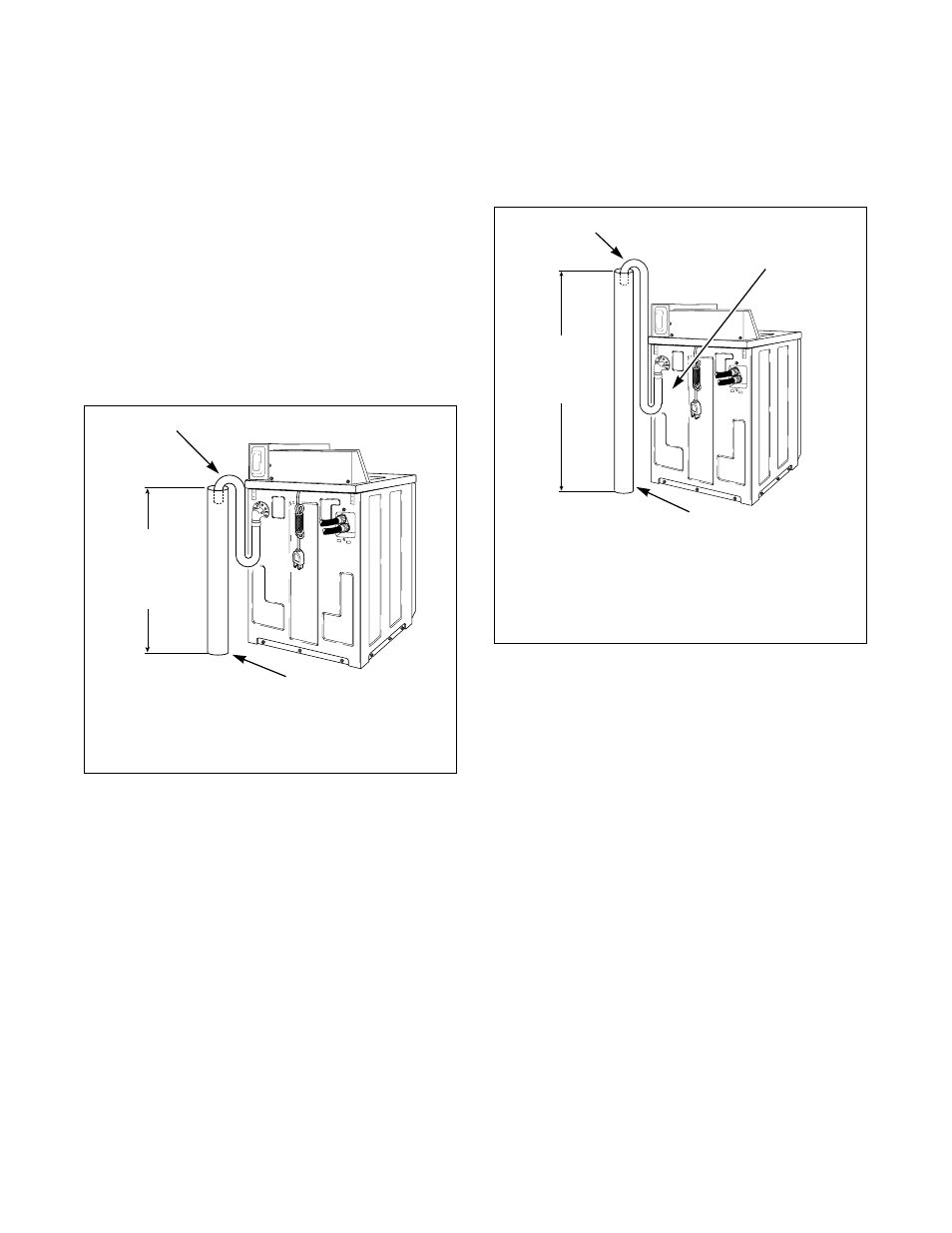

Figure 6
High Standpipe Installation
NOTE: No. 562P3 Siphon Break Kit and No. 25863
Hose Coupling are not required for this type of
installation.
Figure 7
W294I
1 Drain Hose
2 Standpipe
W294I
2
1
RECOMMENDED
STANDPIPE
HEIGHT
36 inches
MINIMUM
(92 cm)
W296I
1 Drain Hose
2 Cut Drain Hose off at This End to Fit the
Washer Installation
3 Standpipe
{
W296I
3
1
MAXIMUM
STANDPIPE
HEIGHT NOT TO
EXCEED 5 feet
(1.5 m)
2
