6-20 DISTRIBUTED COMMUNICATIONS SYSTEM (DCS)
_ ___________________________________________________________________________________________________________________________
_ ___________________________________________________________________________________________________________________________ _ ___________________________________________________________________________________________________________________________
AUDIX
VOICE LINKS
"HOST"
SWITCH
ACD
GROUP
SYSTEM 85 (R2V2-V4),
SYSTEM 75 (R1V3),
GENERIC 1,
GENERIC 2, OR
DCS
TIE
TRUNKS
"REMOTE"
SWITCH
DCIU
SWITCH
COMMUNICATIONS
PROCESSOR
DCIU
SYSTEM 85 (R2V2-V4),
SYSTEM 75 (R1V3),
GENERIC 1,
GENERIC 2, OR
DIMENSION PBX
FP8 ISSUE 3L8
FP8 ISSUE 3L8
DIMENSION PBX
DATA LINKS
TIE
TRUNKS
TIE
TRUNKS
SIGNALING
LINKS

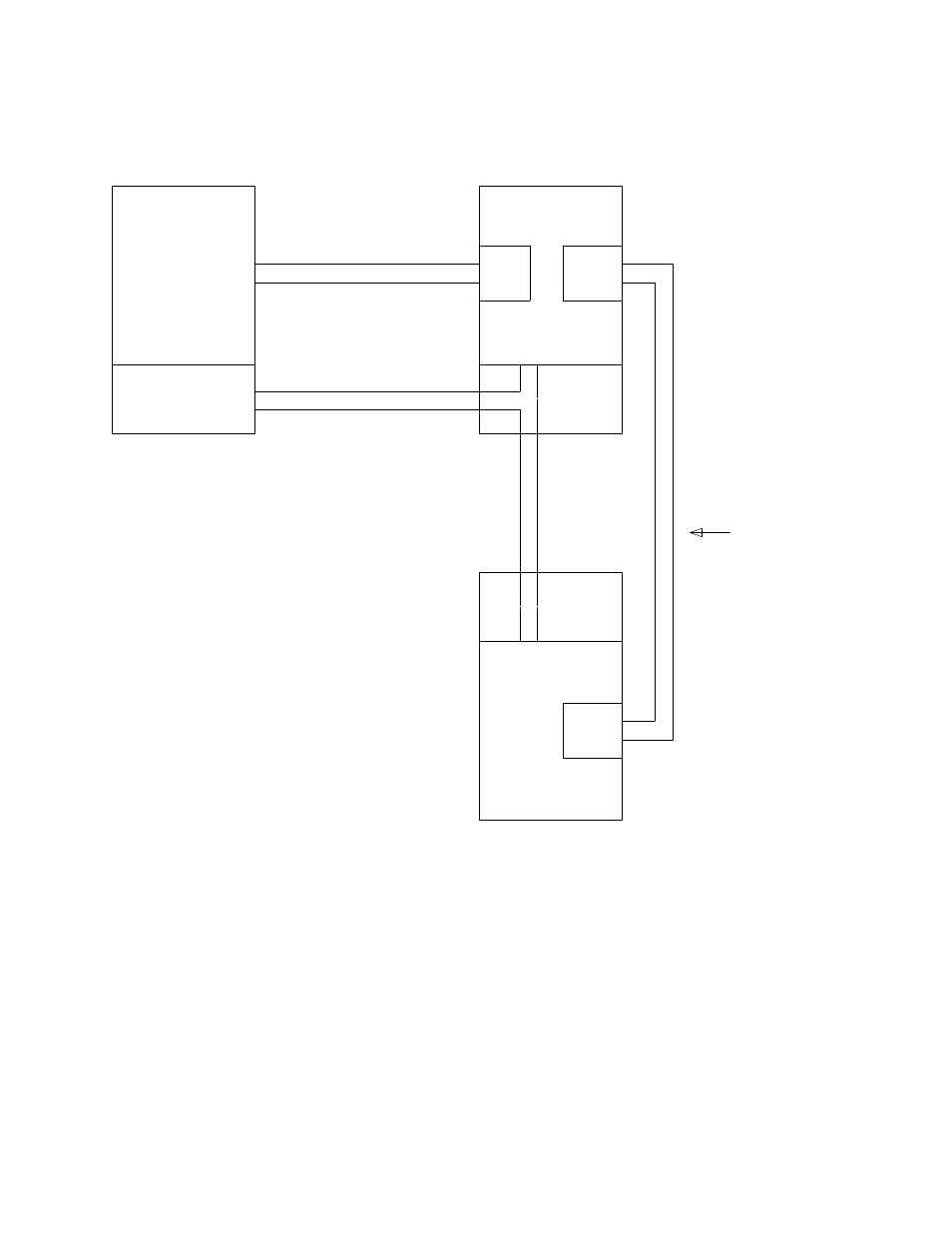

Figure 6-20. AUDIX in a DCS Network
•
Call answering through Call Forwarding — A user on a remote switch may redirect all calls to the
AUDIX ACD group on the host switch.
•
Call answering through Call Coverage — Call Coverage may be used at the remote switch to redirect
calls to a local ACD group (on the remote switch) that is, in turn, forwarded to the AUDIX ACD group
on the host switch. These calls cannot be initiated at a System 85 R2V2 or a
DIMENSION .
•
Message waiting lamp — The lamp is supported for users on the remote switch.
•
Integrated message notification — Users on the remote switch receive integrated message notification
for AUDIX messages.
