Electrical connections, 2 signal cable connections – KROHNE TIDALFLUX 2300 F EN User Manual
Page 19
ELECTRICAL CONNECTIONS
4
19
TIDALFLUX 2300 F
www.krohne.com
06/2013 - 4002490202 MA TIDALFLUX 2300 F R02 en
4.3.2 Signal cable connections

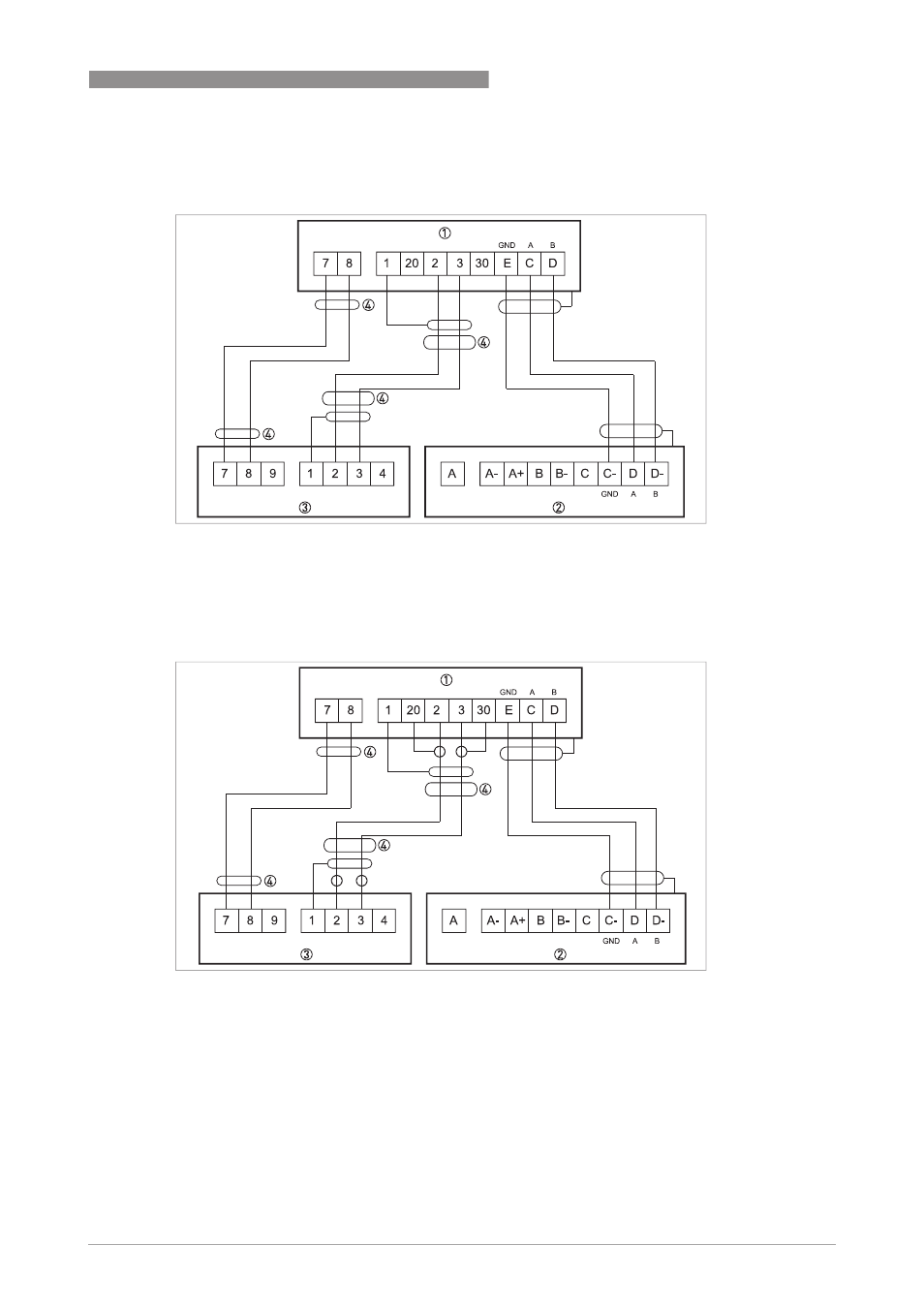

Figure 4-3: Connection diagram for signal cable type A (DS)
1 Connection box of converter
2 I/O connection box of sensor
3 Connection box of sensor
4 Connect the outer screens via strain reliefs
Figure 4-4: Connection diagram for signal cable type B (BTS)
1 Connection box of converter
2 I/O connection box of sensor
3 Connection box of sensor
4 Connect the outer screens via strain reliefs
