Software Overview
First Screen (Data Tab)

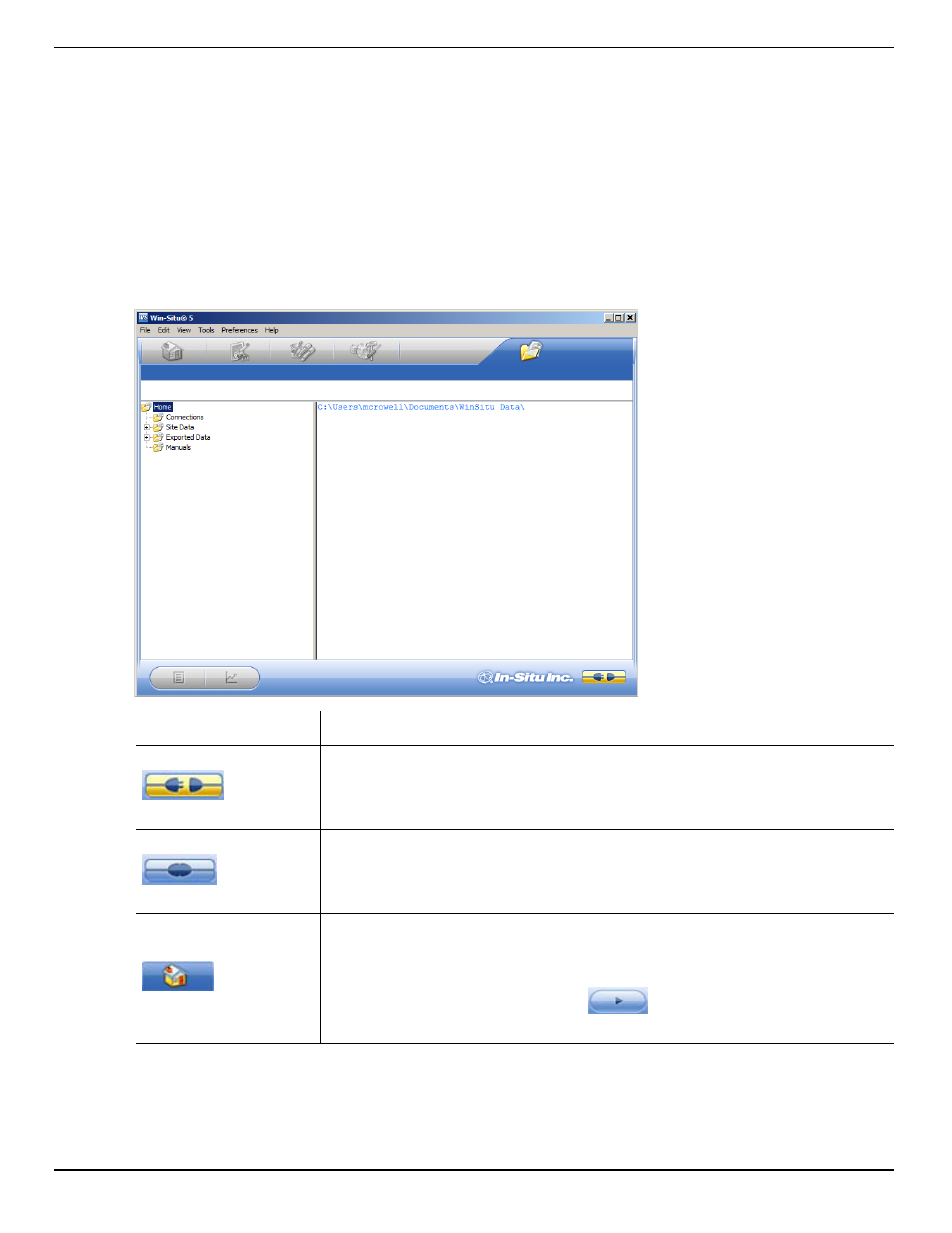

When you open Win-Situ 5 Software, the Data tab appears. The left side of the screen
contains a file tree where you can view previously downloaded site data as well as data
you have exported to Microsoft Office Excel. The link on the right side of the screen
shows where downloaded data is stored on your computer. The open plug icon in the
lower-right corner of the screen indicates that the software is not yet communicating
with an instrument.
Screen Element
Definition
The disconnected plug indicates the instrument is not
communicating with the software. Click to establish communication
with a connected instrument.
The connected plug indicates the instrument is communicating
with the software. Click to disconnect the software from the
instrument.
The Home tab displays real-time readings from the instrument.
When connection to the instrument is first established, the software
displays one reading of all available parameters in light gray.
You must click the Play button
at the bottom of the screen
to view real-time readings.
