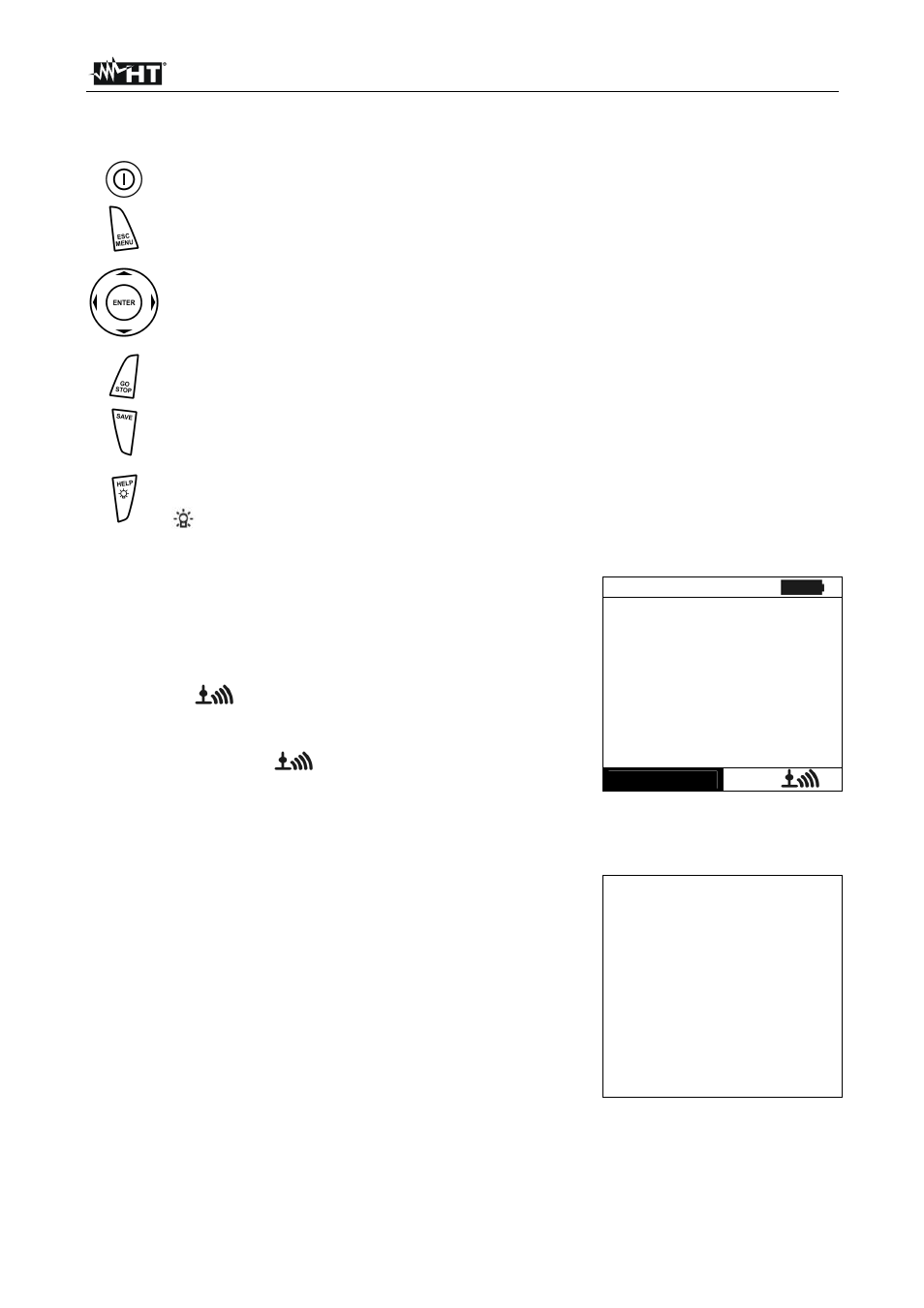

4.2. KEYBOARD DESCRIPTION
The keyboard includes following keys:
ON/OFF key to switch on/off the instrument
ESC/MENU key to exit the selected menu without confirming and to activate
menu management
    keys to move the cursor through the different screens in order to
select the desired programming parameters
ENTER key to confirm the modifications and the selected programming
parameters and to select the function from the menu
GO/STOP key to start measurements
SAVE key to save the measured values
HELP key (long pressure) to display an indicative outline of the connections
between the instrument and the system being tested in the function set
key (short pressure) to turn on the display’s backlighting
4.3. DISPLAY DESCRIPTION
The display is a graphic module with a resolution of 128 x 128
dots. The display’s first line indicates the system date/hour
and the battery charge indicator.
In the bottom part the functionality of ENTER key and the
active mode is displayed
The symbol
indicates the presence of an active radio
connection with the selected remote unit (SOLAR-02 or
MPP300).
The flashing symbol indicates that the instrument is
currently searching for a radio connection with the selected
remote unit (SOLAR-02 or MPP300).
15/05/10 15:34:26
Selection I – V
4.4. INITIAL SCREEN
When turning on the instrument, the instrument displays the
initial screen for a few seconds. It displays the following:
 The instrument’s model (I-V 400 or SOLAR I-V)
 The manufacturer’s name
 Internal module for RF connection is activated (RF) (only
I-V400)
 The serial number (SN:) of the instrument
 The firmware version (FW:) in the instrument's memory
 The date of the last calibration (Calibration date:)
S O L A R
I - V
H T
R F S N : 1 2 3 4 5 6 7 8
FW: 5.03
Calibration date:
09/05/2011
Then, the instrument switches to the last function selected.
