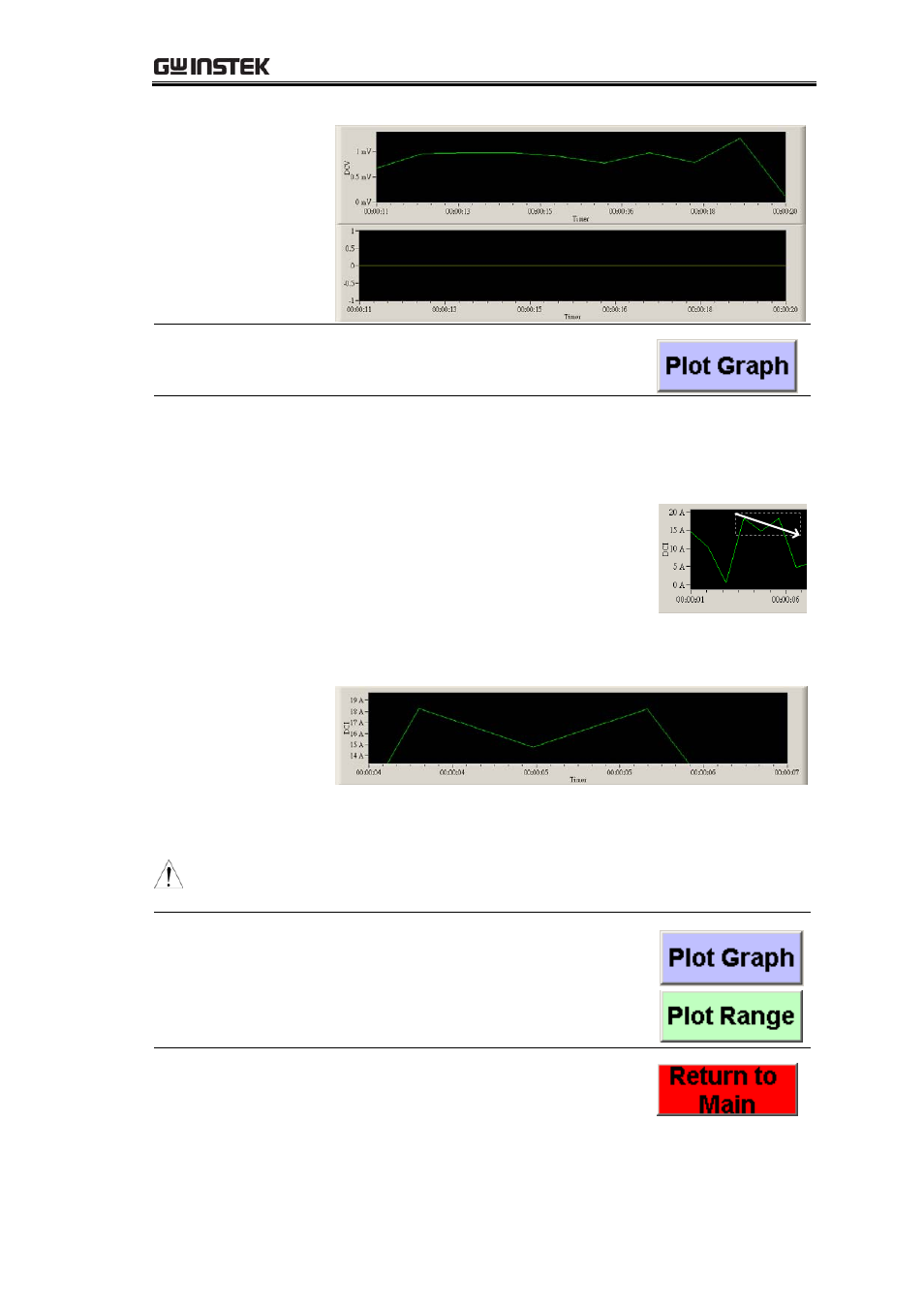

PLOT

GRAPH/

SAVE

25

Reset Plotted
Range

Click the Plot Graph Icon to display

the default ranges.

Zoom In

1. To zoom into any part of any

graph just select an area with the
mouse

2. Left click and hold the top left

most corner of the area you
want to select

3. Drag down to the bottom right

most corner and release the left

mouse button

Zooming can be performed multiple times within a

zoomed window.

Note: This will only zoom the display and not change
the current range settings.

Cancel Zoom

Press the Plot Graph or Plot Range

buttons to zoom back out to the

default ranges

Return to the
main Display
Window

Click Return to Main to go back to

the main Display Panel
