GDM-8200A Series Remote Viewer Guide

14

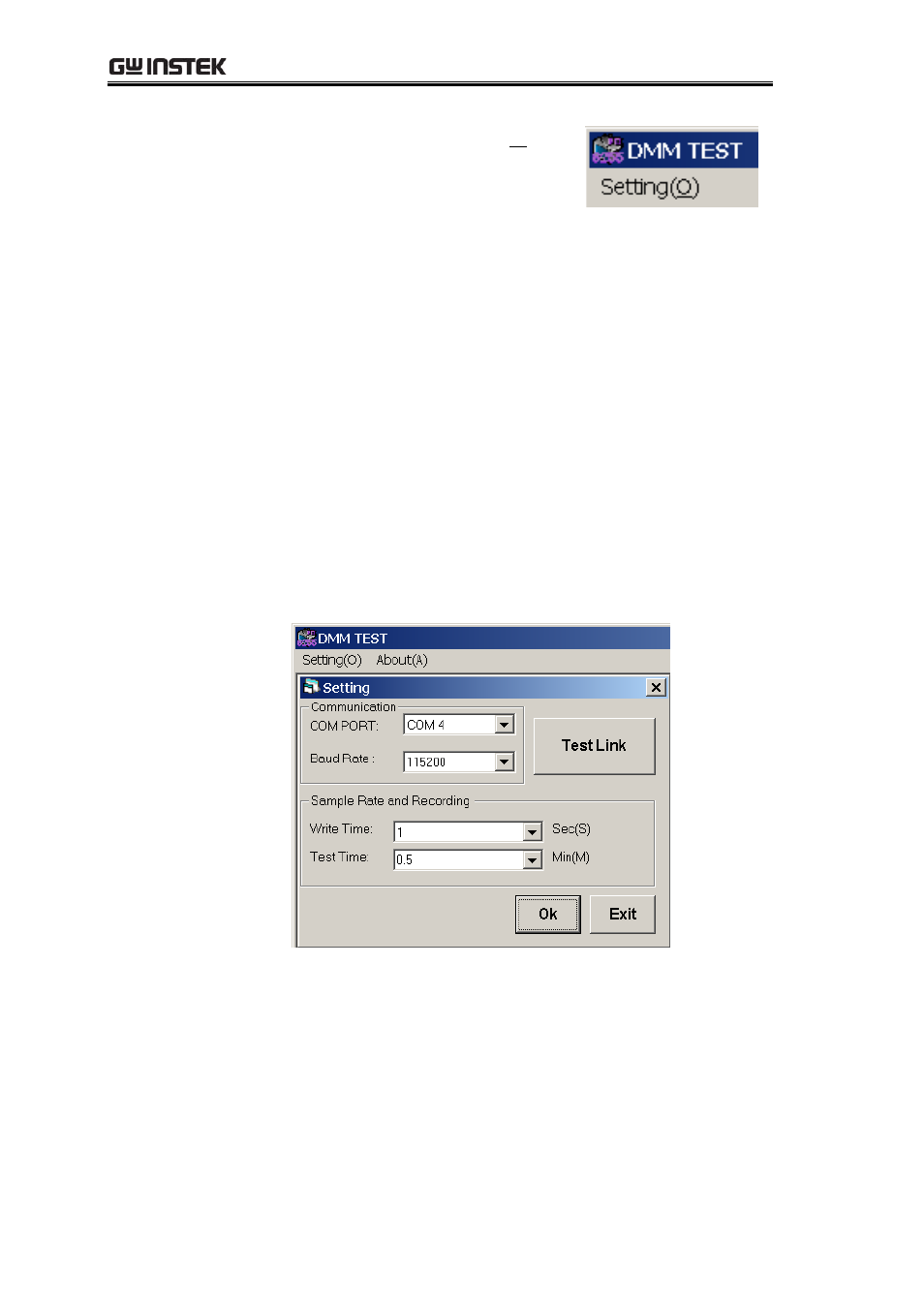

2. Click on the Setting(O)

menu and open the settings

dialog. Enter the default
settings as detailed below. For

more information on

configuring Sample Rate and

Recording, see page17.

COM PORT: according to the Device Manager

Baud Rate: 115200 (Or the baud rate in step 4)

Write time: 1 S

Test Time: Continuous

3. Click on the Test Link button. The viewer

software and the GDM series will try to establish a

connection (success), or an error message appears

(fail). If the connection is successful, the pop-up
message shows the GDM series model number and

firmware version.
