GDM-8200A Series Remote Viewer Guide

12

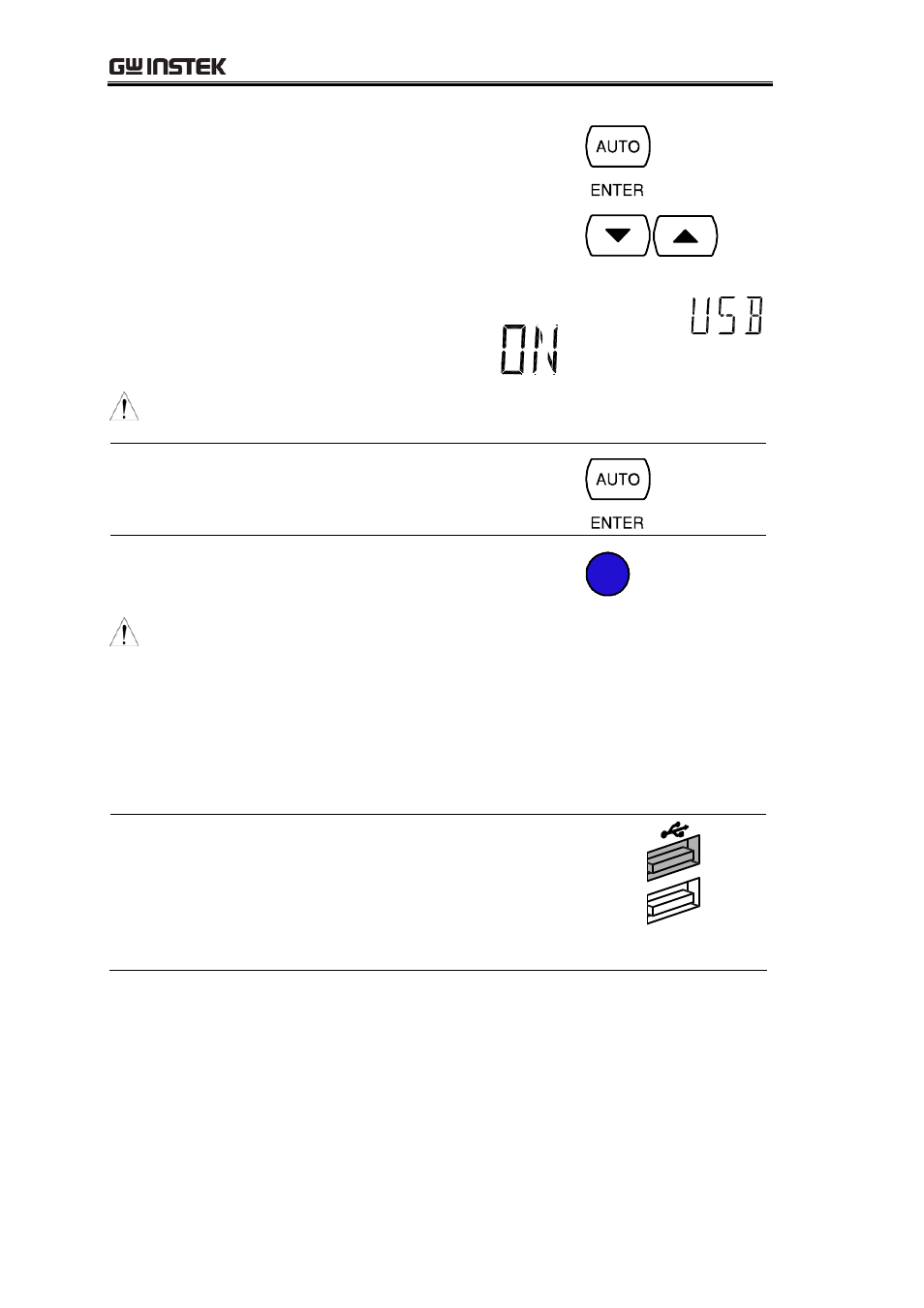

3. Press the Enter key to

confirm USB settings menu.

4. The USB ON or OFF

selection appears. Press the

Up or Down key to turn on.

Note: If using an RS232 connection, select the
USB OFF option.

5. Press the ENTER key to

confirm the USB (either on
or off) selection.

6. Press the EXT key to get out

of the configuration mode.

When the GDM82250A is turned off, the USB
configuration will be lost. Please see the User
Manual to keep the USB configuration as the
default configuration at startup. Firmware 2.10
and later is able to change the startup default
settings. For the latest firmware please see the
GWInstek website or contact your nearest
distributor.

3. Connect the
USB cable

1. Connect the USB cable to the

rear panel terminal (upper

port).

CAL

KEY

2. Connect the other side of the USB cable to the PC.
