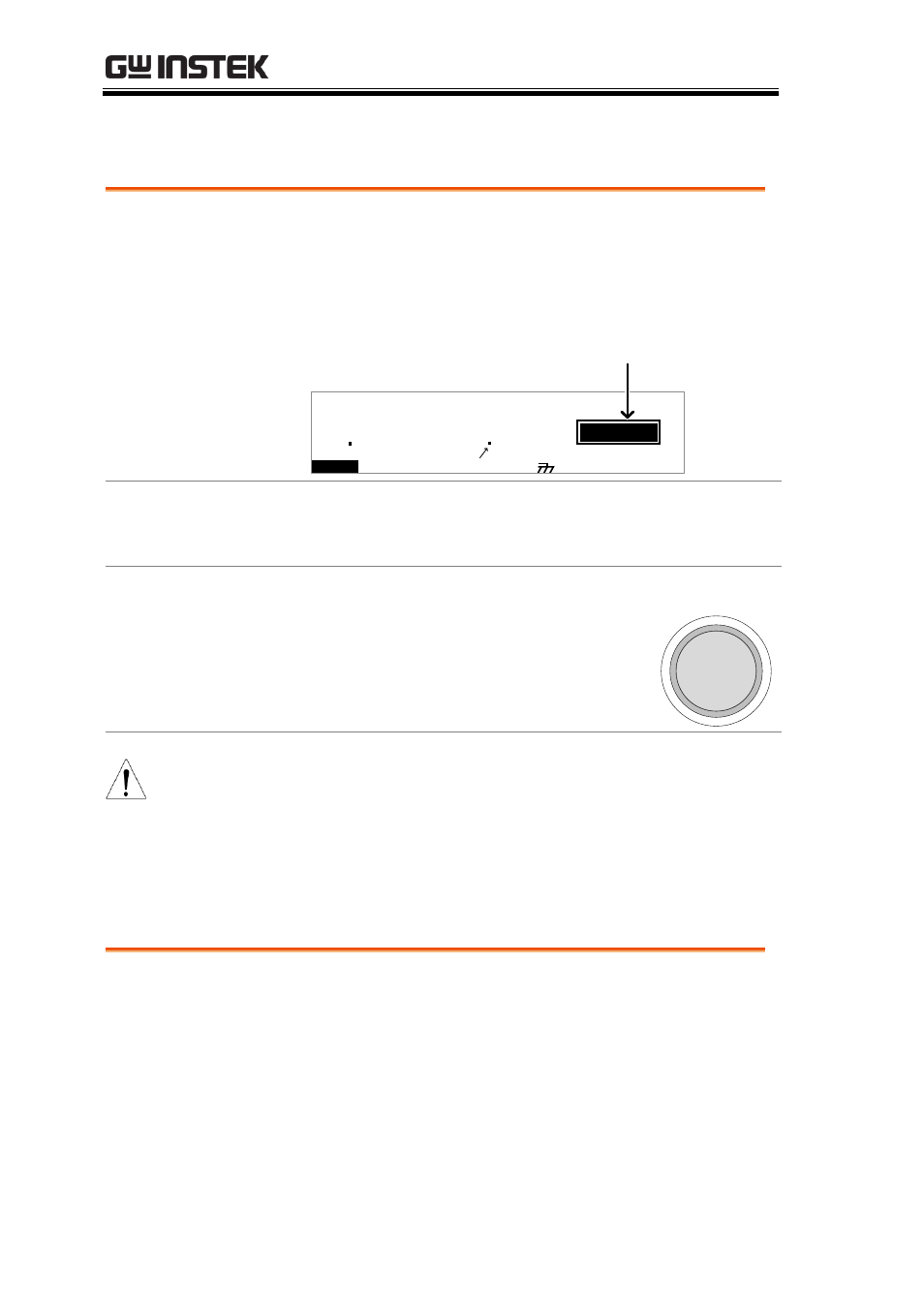

GPT-9000 Series Quick Start Guide

20

TEST Status

Description

TEST status is active when a MANU test or
AUTO test is running. Pressing STOP will
cancel the current test and any remaining steps
in the case of an AUTO test.

G B

I R

A CW

D CW

E

F R E Q =

0 H z

6

0

100

k

V

S

E

T

M

T I

E

= 0 0 1 . 0 S

R

0 0 m A

E

R F

=

#

0 .

0

1 . 0 0 m A

I

H

E

S

= 0

T

0 0 . 1 S

0

A M P

=

R

M

M A U

N

N A

_

2

M A N U = * * * - 0 0

TEST status

T

m A

00 33

Get Test Results

Wait for the MANU/AUTO test to finish.

Abort MANU Test/AUTO Test

Press the STOP button

The tester will go into the STOP status.

STOP

NOTE

If PASS/FAIL HOLD is active, the START button
can be used to continue to the next step in AUTO
mode whereas the STOP button can be used to
cancel the test in AUTO mode.

Results

Results

When the tester is allowed to run to
completion, a MANU test or AUTO test result
is shown as a PASS or FAIL.

For MANU mode, the screen will show PASS or
FAIL on the screen and the PASS or FAIL
indicators will light up.
