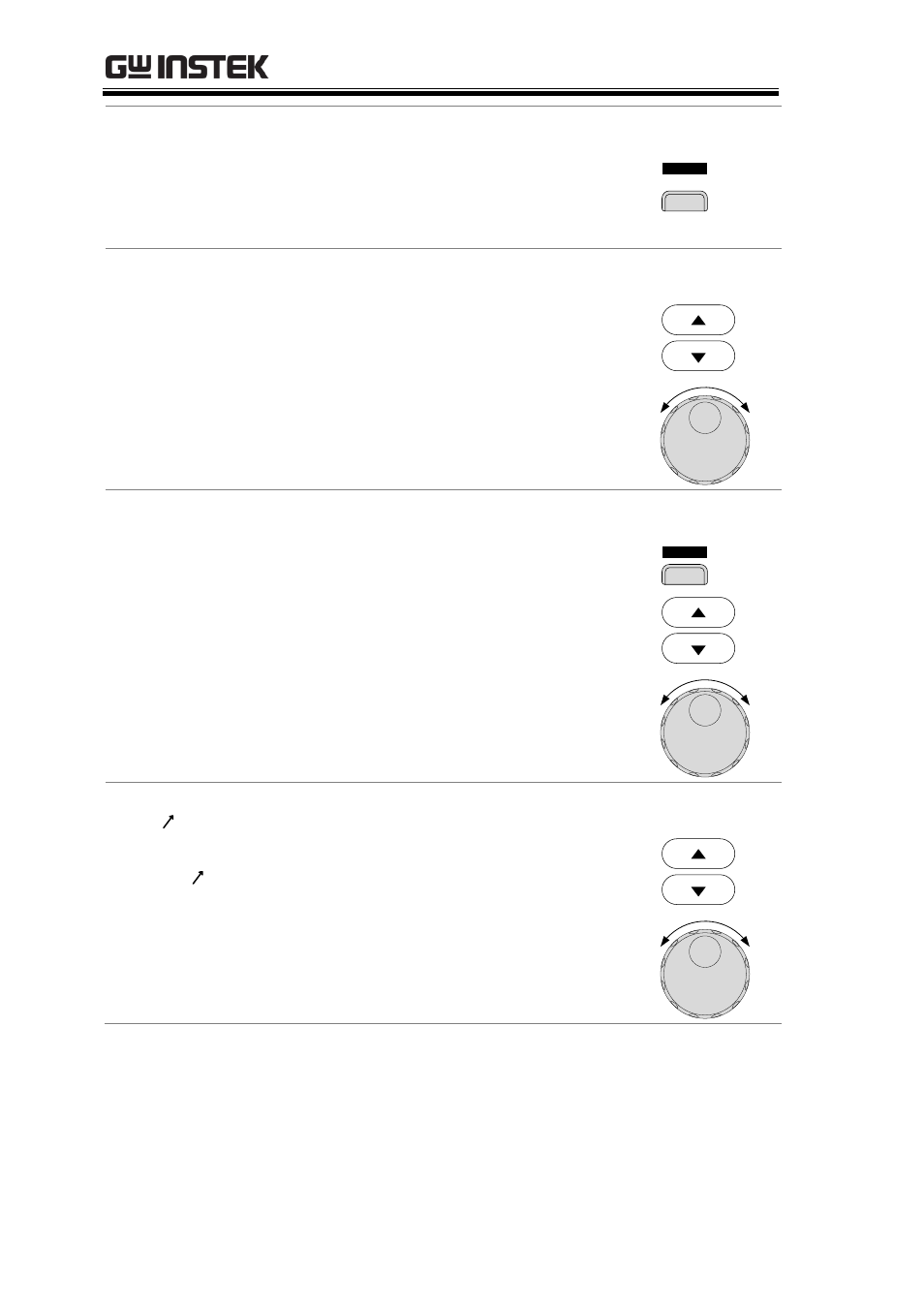

Choose the Test Function (MANU mode only)

Choose the test function by pressing the
corresponding ACW, DCW, IR or GB soft-key.

The chosen function will be highlighted.

A CW

(Example)

Set the Test Voltage/Current (MANU mode only)

Use the UP/DOWN arrow keys to bring the cursor to
the Test voltage/Current.

Use the scroll wheel to set the voltage/current.

Choose HI/LO SET limits (MANU mode only)

Press the HI/LO soft-key or use the UP/DOWN
arrow keys to choose either HI or LO SET.

Use the scroll wheel to edit the setting.

I / L

H

O

OR

Ramp Time (MANU mode only)

Use the UP/DOWN arrow keys to bring the cursor to
Ramp time.

Use the scroll wheel to set the ramp time.

ACW, DCW and IR only
