INTRODUCTION
19
Interface
Max :
Min:
Name:
10.10 mA
Class:
I
Network:
E
Save Recall
Hard
Copy
Network
Class
Leakage
Limit
System
AC+DC
Current
AUTO
Meas
AUTO
Range
14:58 2009.09.01
U
FAIL
Leakage:
Enclo-Enclo
Probe:
T1/T2
Current :
10.00 uA
Judge:
10mA
OFF
12.10 mA
AC+DC
Current
Ready…
graph
clear
Key unlock

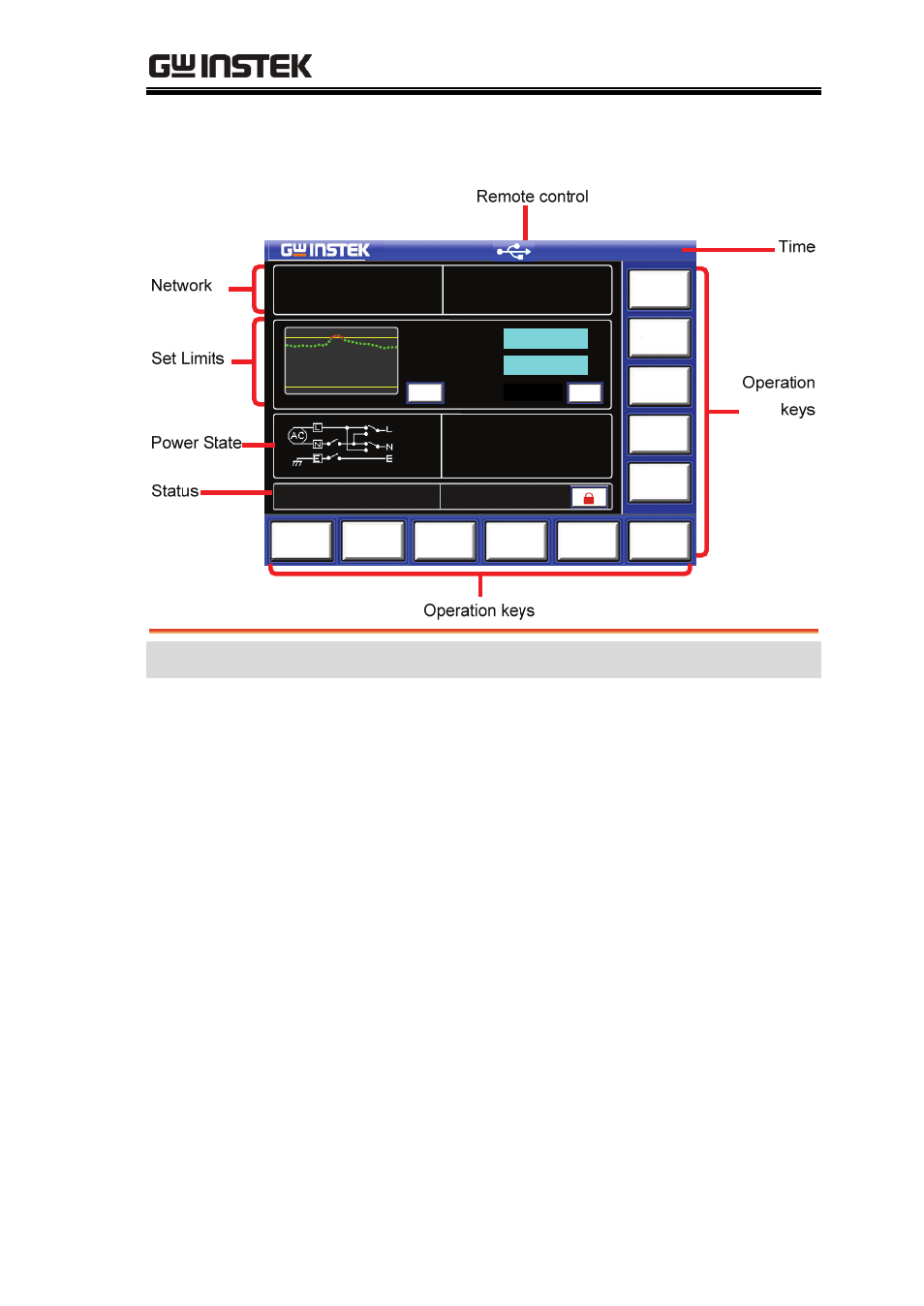

Main Display
Network Leakage
Displays the current measuring
network types (general electrical
equipment and medical networks):
Earth leakage current
Enclosure to earth leakage current
Enclosure to enclosure leakage
current
Enclosure to line leakage current
Patient auxiliary leakage current
Patient leakage current I
Patient leakage current II
Patient leakage current III
Probe
Shows the probe terminals used for
the current measuring network.
