16 Microstrip Line Filters
3 331
x TG output: on
x TG normalization: on
Amplitude
Ref
Level
IJ0 dBm
Option TG
TG
Level
0 dBm
Option TG 0 dBm
Ref
Value
Option TG ON
TG
ON OFF
Option TG ON
Normal
ON OFF
Step 1:
Step 2:
Step 3:
Step 4:
Step 5:

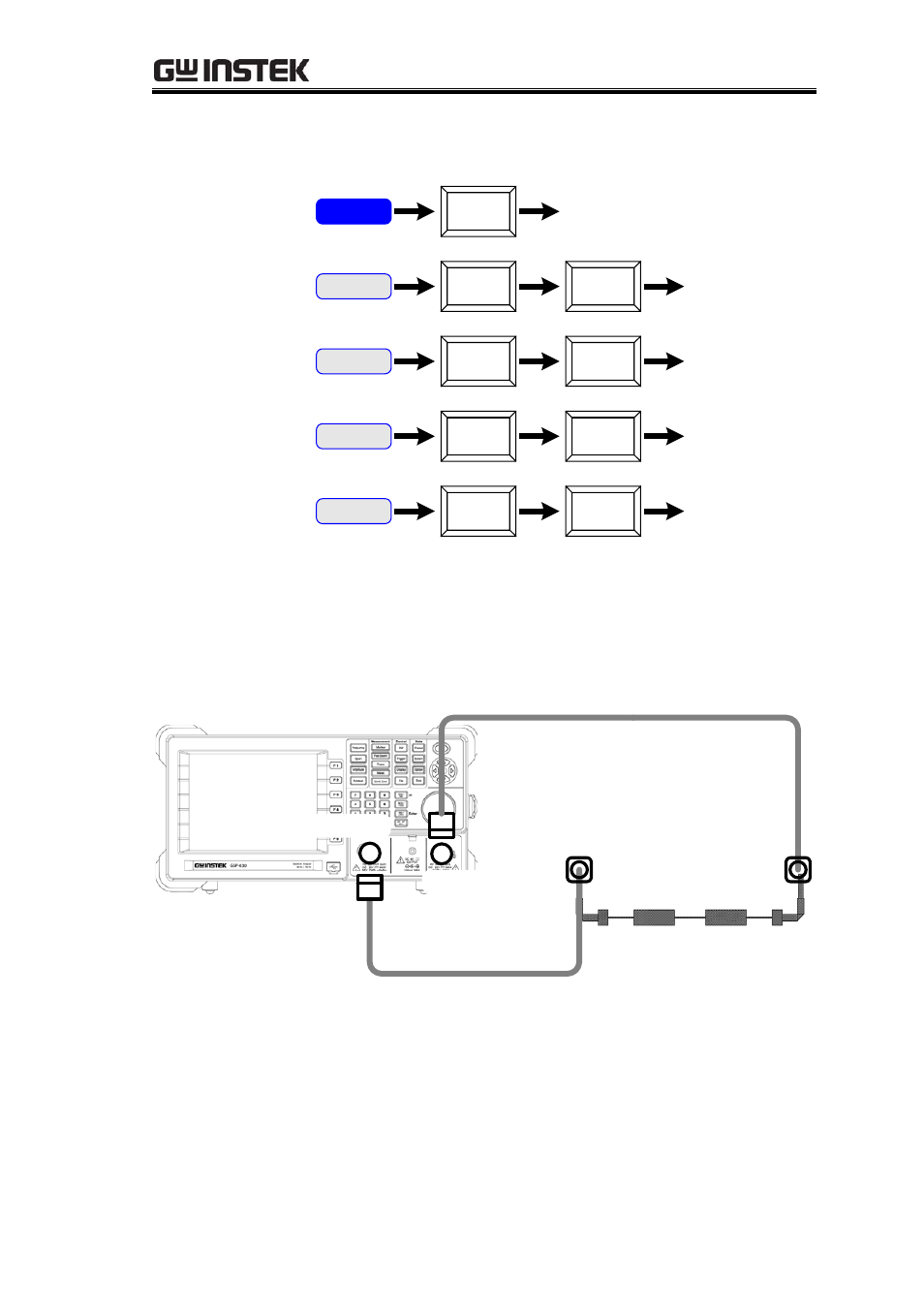

Figure 16-14 TG configurations
12. Connect the SA and R-11 as follows.
x TG output – R-11 input
x R-11 output – SA RF input
N-SMA Adaptor x 2
75cm RF cable x 2
TG Output
RF Input
RF I/P RF O/P
Figure 16-15 SA to R-11 connections
13. Turn on a marker in the SA, set the marker frequency to 3dB bandwidth of the filter,
and record the amplifier gain into Chart 16-1.
