GRF-3300

Manual

3

322

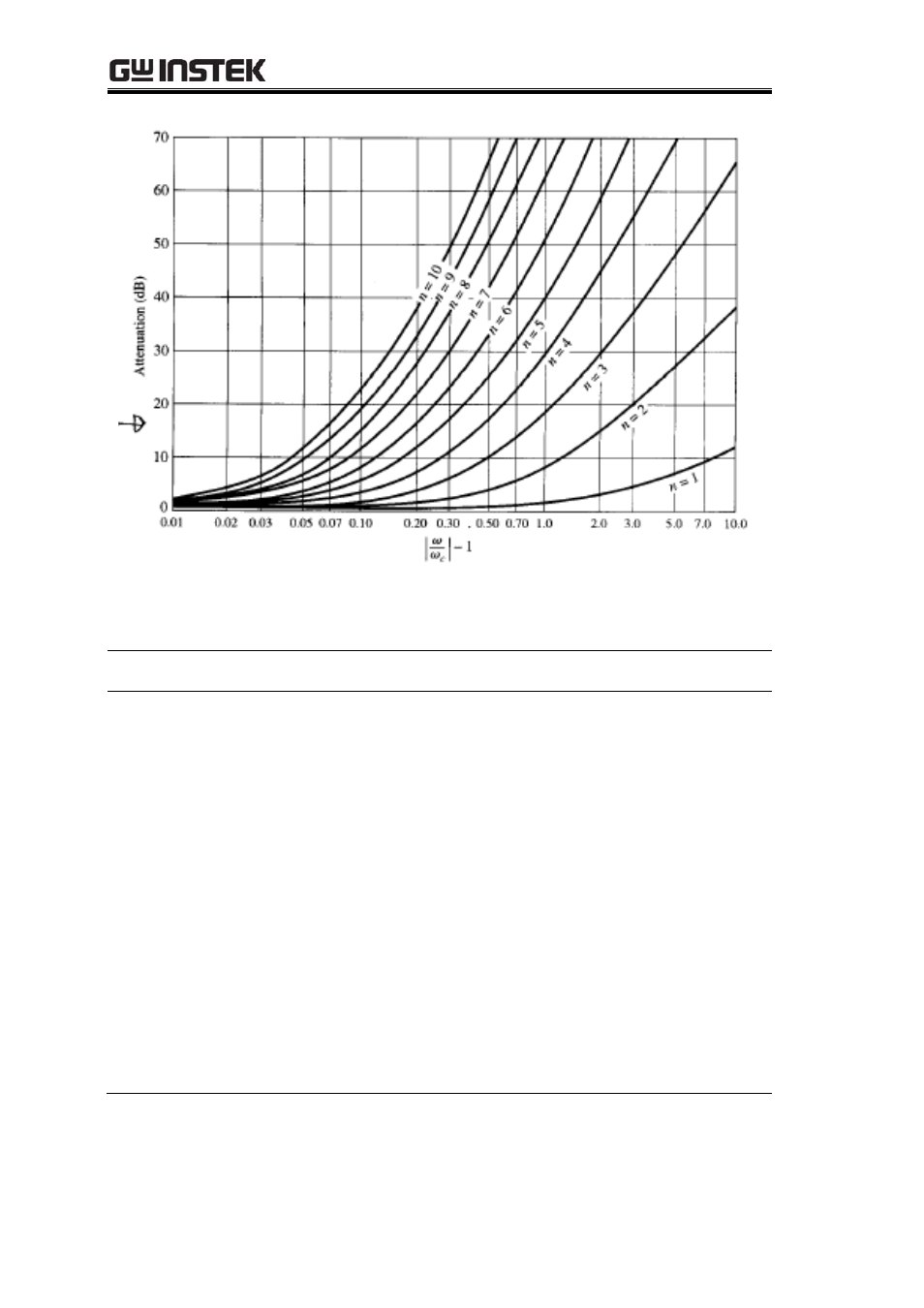

Figure 16-6

0.5dB Ripple

N g1 g2 g3 g4 g5 g6 g7 g8 g9 g10

g11

1

0.6986

1.0000

2

1.4029

0.7071

1.9841

3

1.5963

1.0967

1.5963

1.0000

4

1.6703

1.1926

2.3661

0.8419

1.9841

5

1.7058 1.2296 2.5408 1.2296 1.7058 1.0000

6

1.7254 1.2479 2.6064 1.3137 2.4758 0.8696 1.9841

7

1.7372 1.2583 2.6381 1.3444 2.6381 1.2583 1.7372 1.0000

8

1.7451 1.2647 2.6564 1.3590 2.6964 1.3389 2.5093 0.8796 1.9841

9

1.7504 1.2690 2.6678 1.3673 2.7239 1.3673 2.6678 1.2690 1.7504 1.0000

10

1.7543 1.2721 2.6754 1.3725 2.7392 1.3806 2.7231 1.3485 2.5239 0.8842 1.9841
