APPENDIX
37
External
dimensions Sensor:
Approx. 175(W)×18(H)×40(D)mm
Approx. 6.89"(W)×0.71"(H)×1.58"(D)(excluding
protrusions)
Terminator:
Approx. 55(W)×27(H) ×18(D) mm
Approx. 2.17"(H) ×1.06"(W)×0.71"(D)

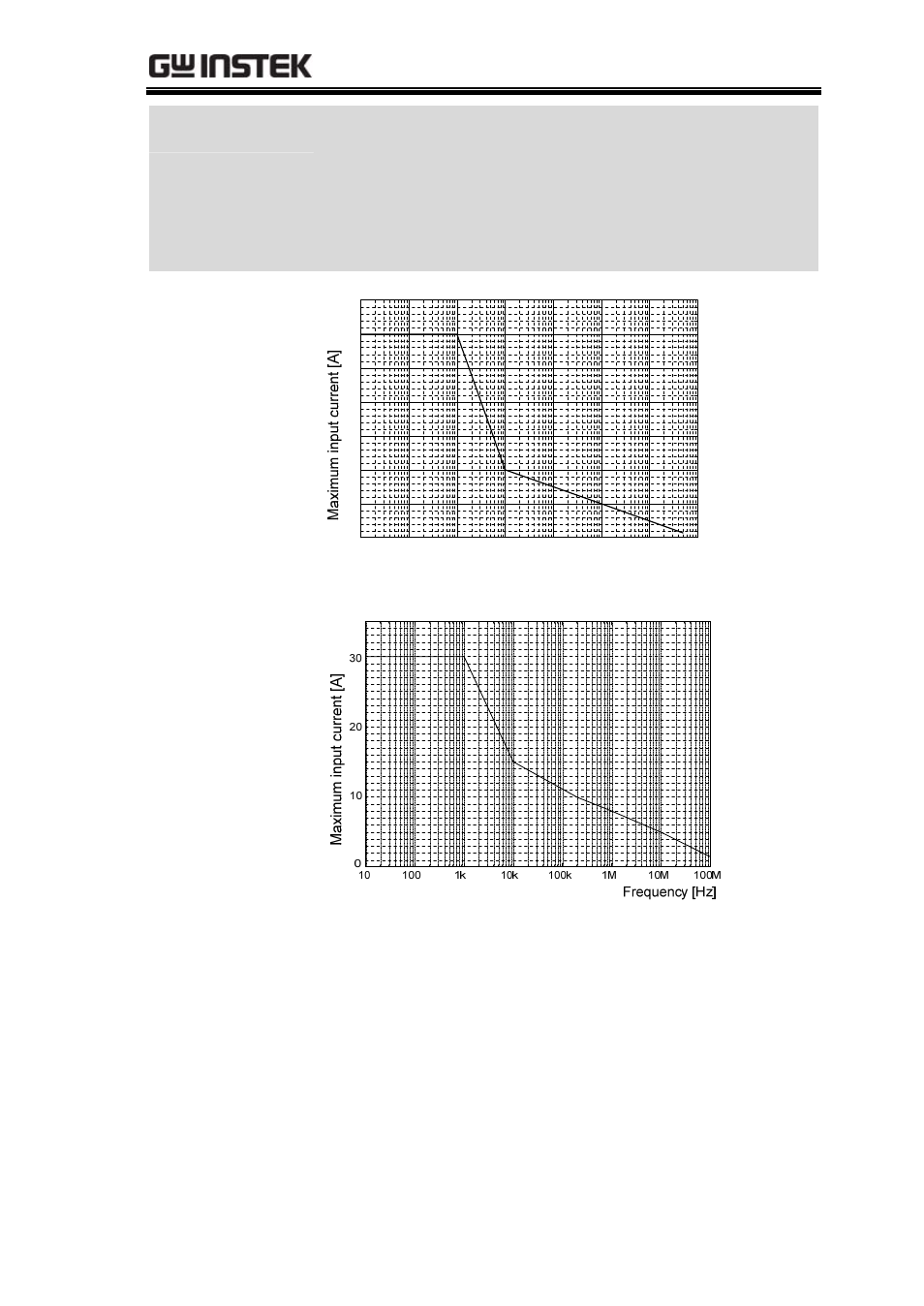

Fig.3 Derating
according to
frequency (For GCP
-530)
30
20
10
0
10 100 1k 10k 100k 1M 10M 100M
Frequency [Hz]
Fig.3 Derating
according to
frequency (For GCP
-1030)
