880-N4X

880-N4X Instruction Manual

Rev. 0.0

Page 14 of 36

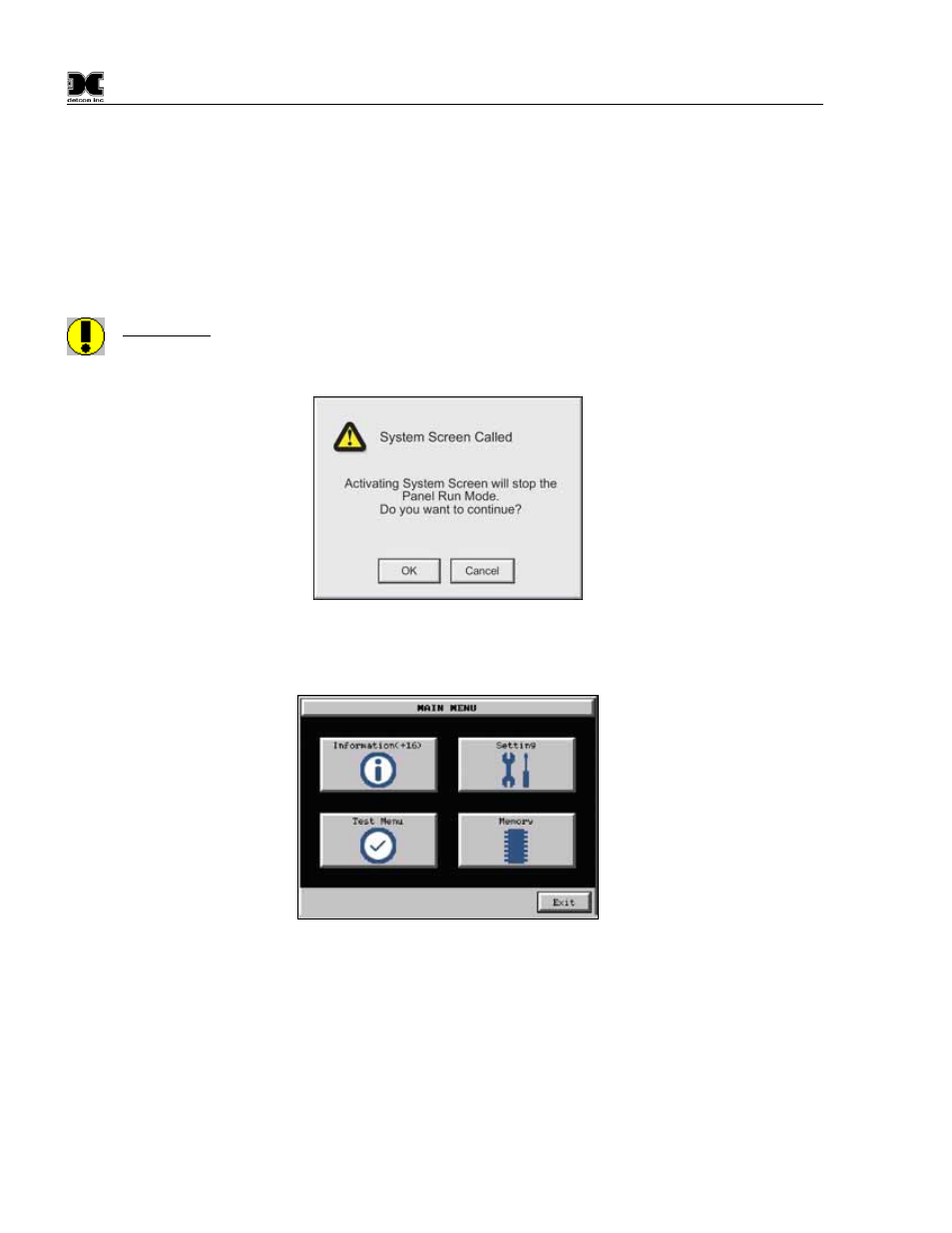

4.2 Clock and Screen Adjustments


Adjustments to the clock and screen are made entering the display’s Setup Screens. Only the Clock and
Screen adjustments are discussed here. Changing other aspects of the Touch Panel may cause the unit to
operate improperly and should not be attempted.

Access the display’s System Setup Screens by touching the upper left corner of the touch panel with the wand
and holding it there for 3-5 seconds. A warning box will appear (Figure 21). If no action is taken within 60
seconds, the display system will return to the Main Screen. To return to the Main Screen select “Exit”.

WARNING: Selecting OK will stop the PLC driver; therefore, all communication between the touch
panel and the PLC will cease.


Figure 21 Warning Screen


To enter the display’s Setup Screen, select “OK”. The Main Menu will be displayed (Figure 22).

Figure 22 Main Menu


From the Main Menu select the “Setting” button to enter the “Setting” Screen (Figure 23).
