colliding with the touch screen. The screen can be cleaned with a mild detergent and a lint free cloth. Never
use an abrasive cleaner on the display.

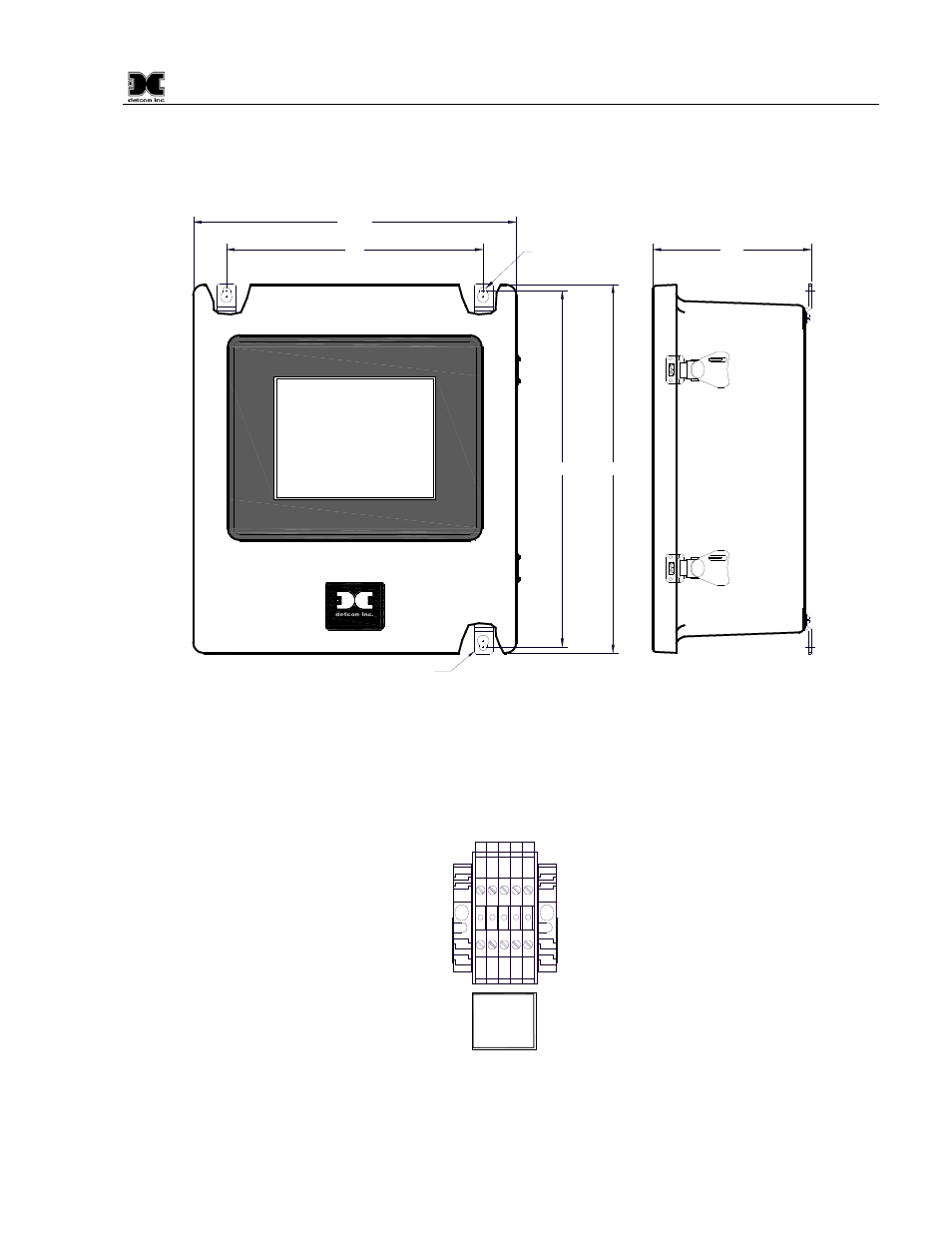

1. Securely mount the 880 Enclosure in accordance with Figure 14.
www.detcon.com
11"
13.85"
6.8"
15.2"
15.75"
Ø0.344"
Mounting Hardware
Figure 14 Dimensional Overview
2. Run the serial cable between the Main 880 enclosure and the 880 Remote Display enclosures.
3. Connect the RS-422 Serial communications cable to the terminal blocks labeled “REMOTE
OUTPUT” in the Main 880 enclosure (Figure 15).
TXD+
TX
D
-
RXD+
REMOTE
OUTPUT
RXD-
0V
Figure 15 Main 880 terminal blocks and connections
4. Connect the RS-422 Serial communications cable to the input terminal blocks inside the 880 Remote
Display labeled “TERMINAL INPUT” as shown in (Figure 16).
