Model 1000 CO2
Model 1000 CO2 Instruction Manual Rev. 2.2 Page 23 of 28
13.0 Spare Parts
Part# Description
327-000000-000 Programming Magnet
351-152021-400 24 VDC Pump Assembly
360-205421-024 24 VDC Power Supply
360-2424GH-030 24V DC-DC Converter
943-200000-000 Activated Carbon Scrubber
943-010013-505 500 CC Fixed Flow Regulator
823-101085-882 Genie Membrane Filter
350-300000-000 0.5Lpm Rotameter no valve
348-900000-000 1Lpm Rotameter with valve
350-523081-02K Mass flow controller
308-091000-030 Pressure Gauge 0-30 PSI
942-400123-2X5
Calibration Span Gas (2.5% CO
2
, balance air)
942-400123-005 Calibration Span Gas (5% CO
2
, balance air)
926-405502-015 Transmitter Module 0-15%ppm Range (for CO
2
gas sensor)
926-405502-020 Transmitter Module 0-20%ppm Range (for CO
2
gas sensor)
500-002042-000 IR Connector board
370-365878-111 CO
2
Plug-in Optical Replacement Sensor (IR640)
370-287724-332 CO
2
Plug-in Optical Replacement Sensor (IR-642)
390-000088-000 CO
2
Sensor Housing Assembly (does not include replacement cell)
SAMPLE FLOW AIR FLOW
INLET SAMPLE
10 PSIG (CONSTANT) SAMPLE PRESSURE
INLET AIR AIR
MODEL NO. SERIAL NO. INPUT VOLTAGE FREQUENCY CURRENT LOAD AREA CLASSIFICATION
detcon inc. 3200 A-1 Research Forest Dr. The Woodlands, TX 77381 www.detcon.com
PART NO.
0-30psi
Pressure Guage
Genie Membrane
Filter
0.5Lpm Sample
Rotameter
Mass Flow Control
1.0Lpm Air
Rotameter
24VDC Power Supply
(Mounted under Connector PCA)
24V DC-DC
Converter
IR-640/642
Transmitter
Module
IR Sensor Head and Plug-in
Replacement Sensor
+ +
24VDC OUT
2.1A 18-36 VDC IN

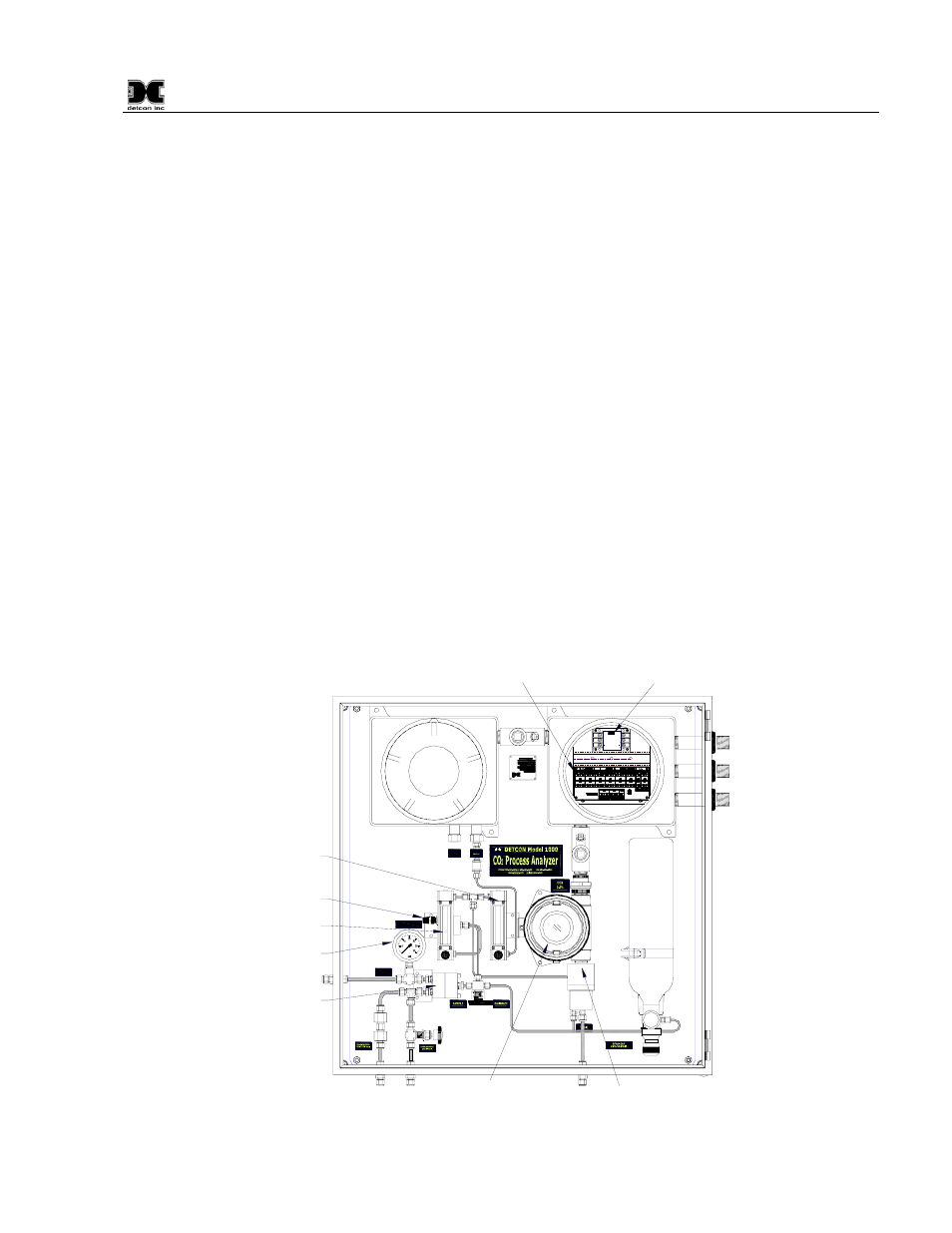

Figure 16 Spare parts identification
