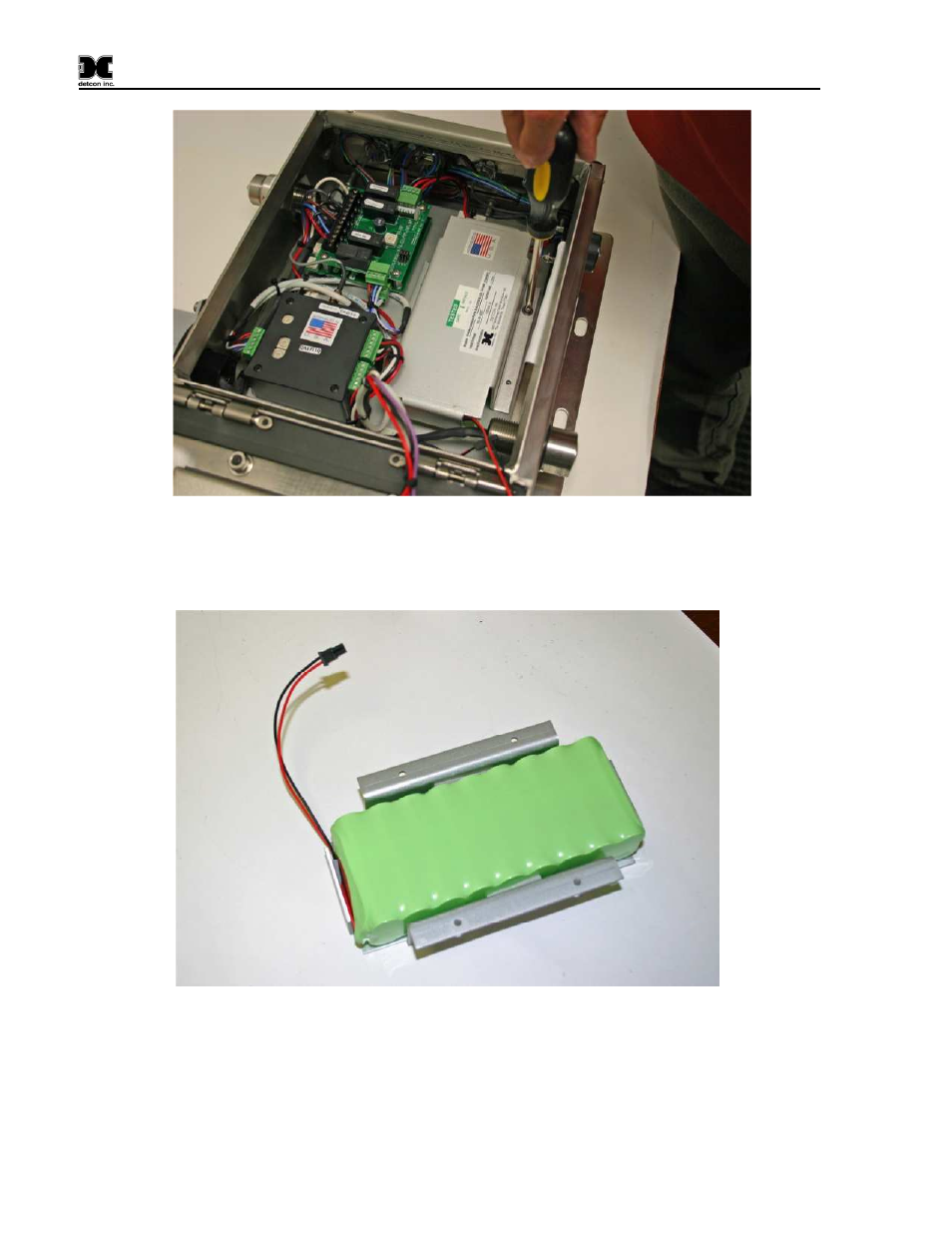

Figure 14 Battery Bracket in position
12. Install the battery pack in the bracket. The battery will fit snugly into the holder, being somewhat
held in place by the foam padding in the bracket.
Figure 15 Battery and Battery Bracket
13. Position the battery bracket (and battery) with the connector on the left side, and install the battery
and bracket in the enclosure using the 6-32 screws removed is step 11. Some wiring may need to
be moved out of the way during this process to ensure that the wiring is not caught under the
bracket.
14. Locate the connector mate for the battery connector, and plug the two connectors together.
