Sentinel CX Sensor Station IM Rev. 1.4 Page 15 of 26

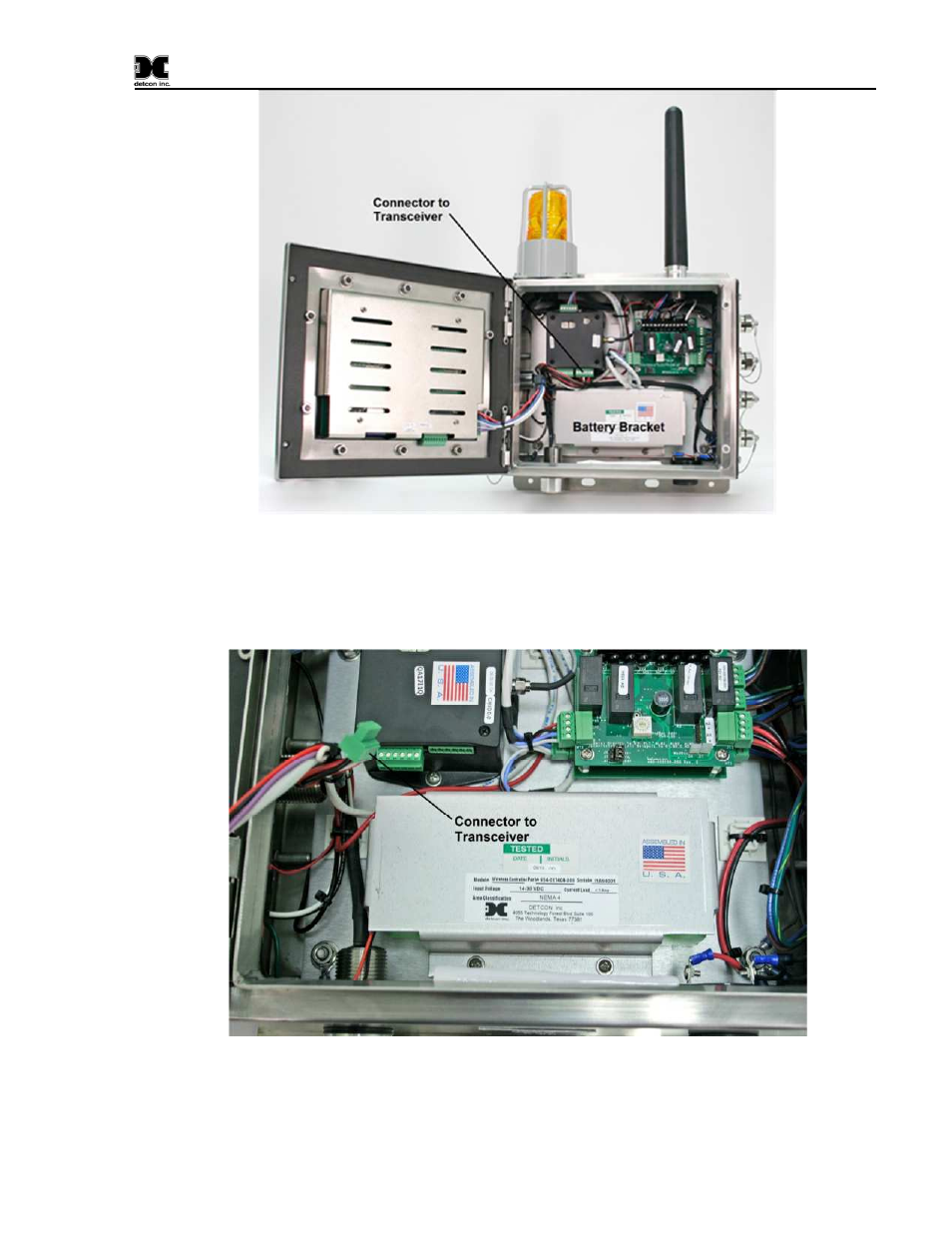

Figure 12 Enclosure
10. Unplug the connector from the transceiver, and move it out of the way to gain access to the screws
holding the battery bracket in place. There should be enough of a service loop to safely move this
connector out of the way for removal/installation of the battery bracket.
Figure 13 Connector to Transceiver
11. Remove the 6-32 screws and washers holding the battery bracket is place, and remove the bracket
from the enclosure. Retain the screws and washers for installation of the bracket with the battery
pack.
