880-N4X
880-N4X Instruction Manual Rev. 1.0 Page 13 of 40
www.detcon.com
10"
13.85"
6.8"
14.75" 15.75"
Ø0.344"
Mounting Flange

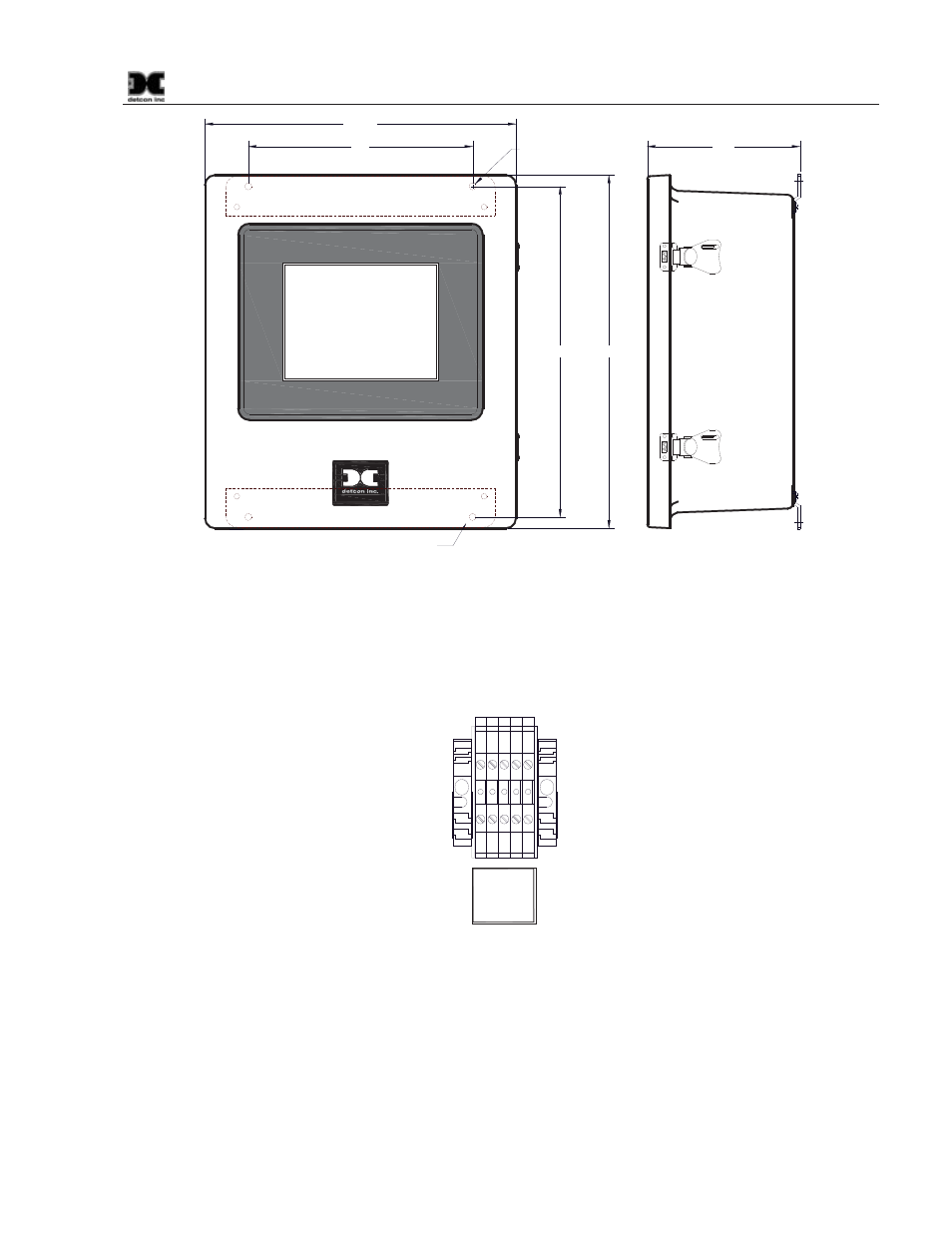

Figure 17 Dimensional Overview
2. Run the serial cable between the Main 880 enclosure and the 880 Remote Display enclosures.
3. Connect the RS-422 Serial communications cable to the terminal blocks labeled “REMOTE
OUTPUT” in the Main 880 enclosure (Figure 18).
TXD+ TX
D
-
RXD+
REMOTE
OUTPUT
RXD-
0V
Figure 18 Main 880 terminal blocks and connections
4. Connect the RS-422 Serial communications cable to the input terminal blocks inside the 880 Remote
Display labeled “TERMINAL INPUT” as shown in (Figure 19).
