Connecting to the monitoring port, Main menu: figure 8, Connecting to the monitoring port 12 – APC SMARTSLOT DP300E User Manual
Page 18: Main menu 12, Continued, Configuring via the monitoring port

12
Configuring via the Monitoring Port
Connecting to
the Monitoring
port
To connect locally to the Silcon Triple Chassis, you must
use the Monitoring cable (940-0024C) supplied with the
Silcon Triple Chassis. Connect one end of the cable to the
Monitoring port of the Silcon Triple Chassis, and the other
end to the DTE device.
Establishing
communications
with the Silcon
Triple Chassis
To establish communication with the Silcon Triple Chassis,
perform the following steps in the order given.
1 Set the communication parameters of the DTE
device to 2400 baud, 8 data bits, no parity, 1 stop
bit, and no flow control.
2 Press
ENTER
or
RETURN
.
3 The Main menu of the Silcon Triple Chassis
appears.
The following figure shows a sample of the Main menu.

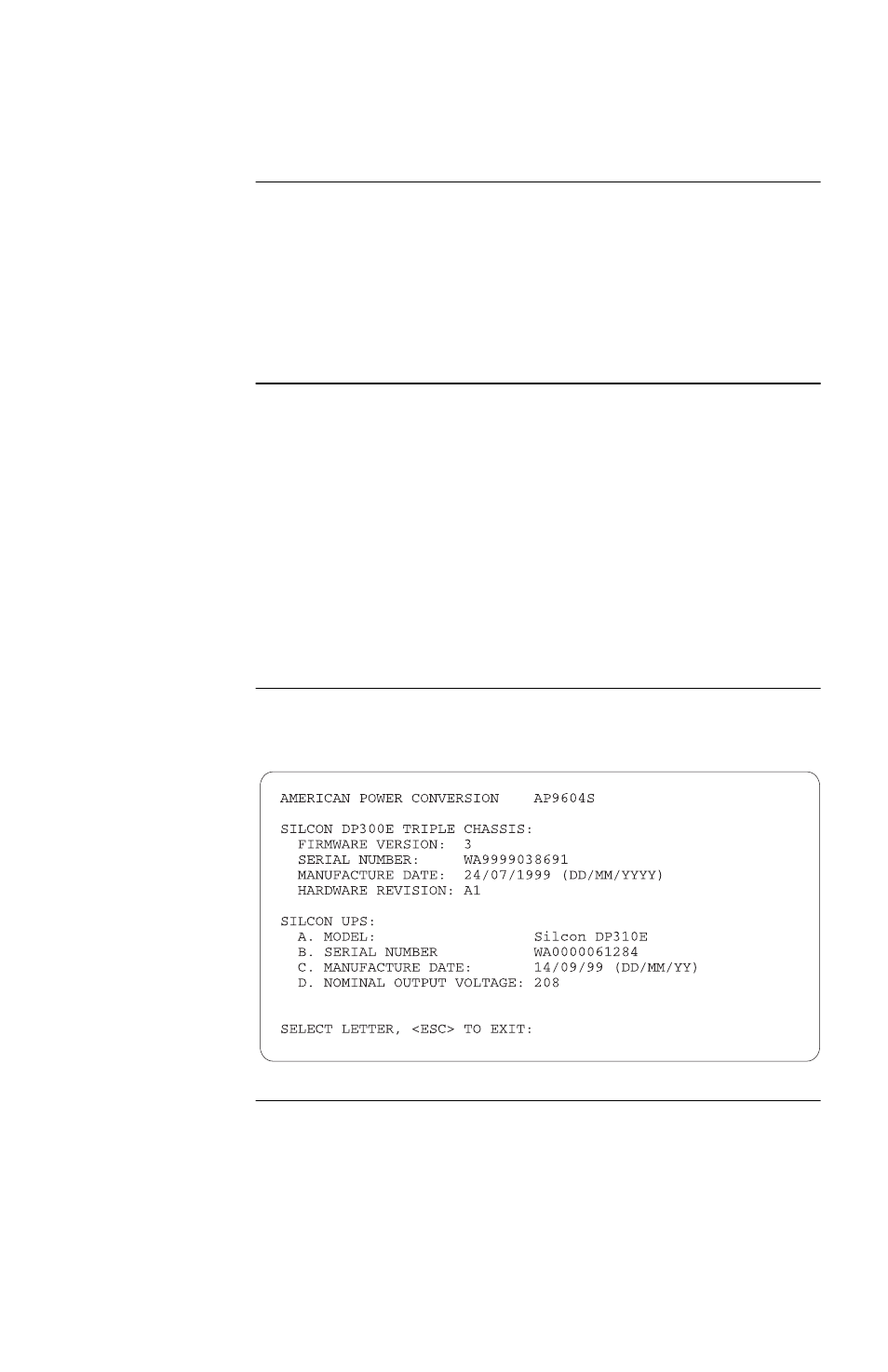

Figure 8:Main menu
