Mounting the Silcon Triple Chassis

To mount the Silcon Triple Chassis in a NetShelter enclo-
sure or other 19" rack:

1 Remove the rubber feet from the bottom of the Tri-

ple Chassis.

2 Fasten each rack-mount bracket (supplied) to the

chassis as shown, using two flat head mounting
screws (supplied) and a #2 Phillips screwdriver.

Note: You can attach the mounting brackets at

various hole positions along the side of the
Triple Chassis. Choose a position that will
not cause the unit or cables to interfere with
closing the door of the enclosure or to oth-
erwise protrude from the cabinet. If more
than two mounting holes are aligned, use
the pairs that are the farthest apart.

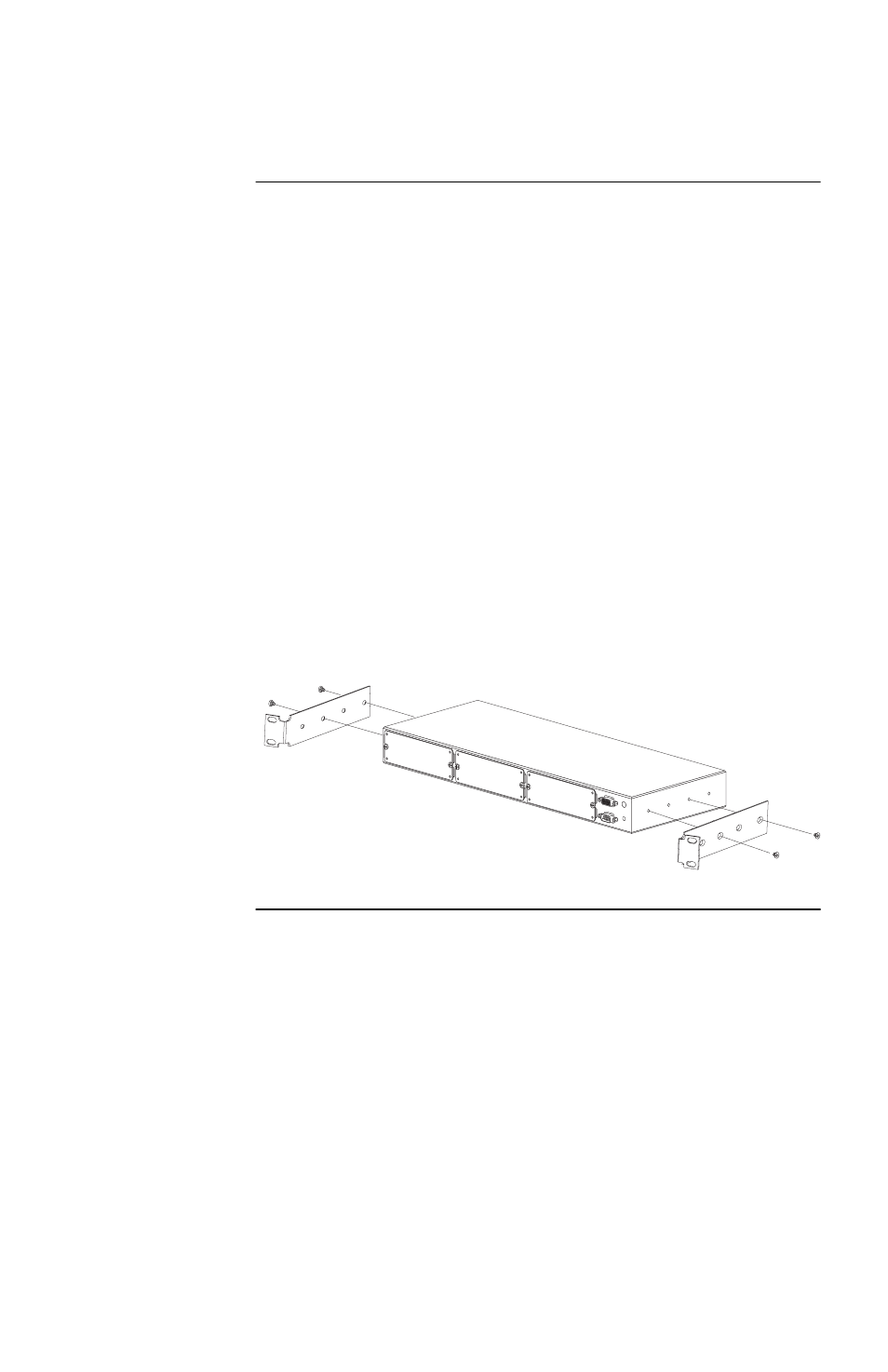

Figure 4:Mounting the chassis in a NetShelter enclosure

Continued on next page
