NMD50

Removing Note Cassettes

1. UNLOCK the cassettes through Management Functions.

Press keys to route through from the Main Menu: Diagnostics (2) > Dispenser (4) > Cassette
Parameters (8).

Press 2 to unlock (uncheck) the All Cassettes
Locked option.

2. Unlock and open the security cabinet door.

To remove the selected note cassette, grasp the cassette handle with one hand while holding the mechanism
in place with the other hand. Pull the cassette out slightly. Place one hand underneath to support the
cassette as you slide it completely out of the unit.

4. Continue to support the bottom of the cassette

to keep it level as you place it on a table or other
fl at surface.

Note: This is also accessable via Main Menu: Terminal Confi guration (6) > Cassette Setup (4)
> Cassette Parameters (9)

Note: Depending on the type screen you are viewing (7” touch reactive or 12.1”), the appearance
may be different, but the route is the same.

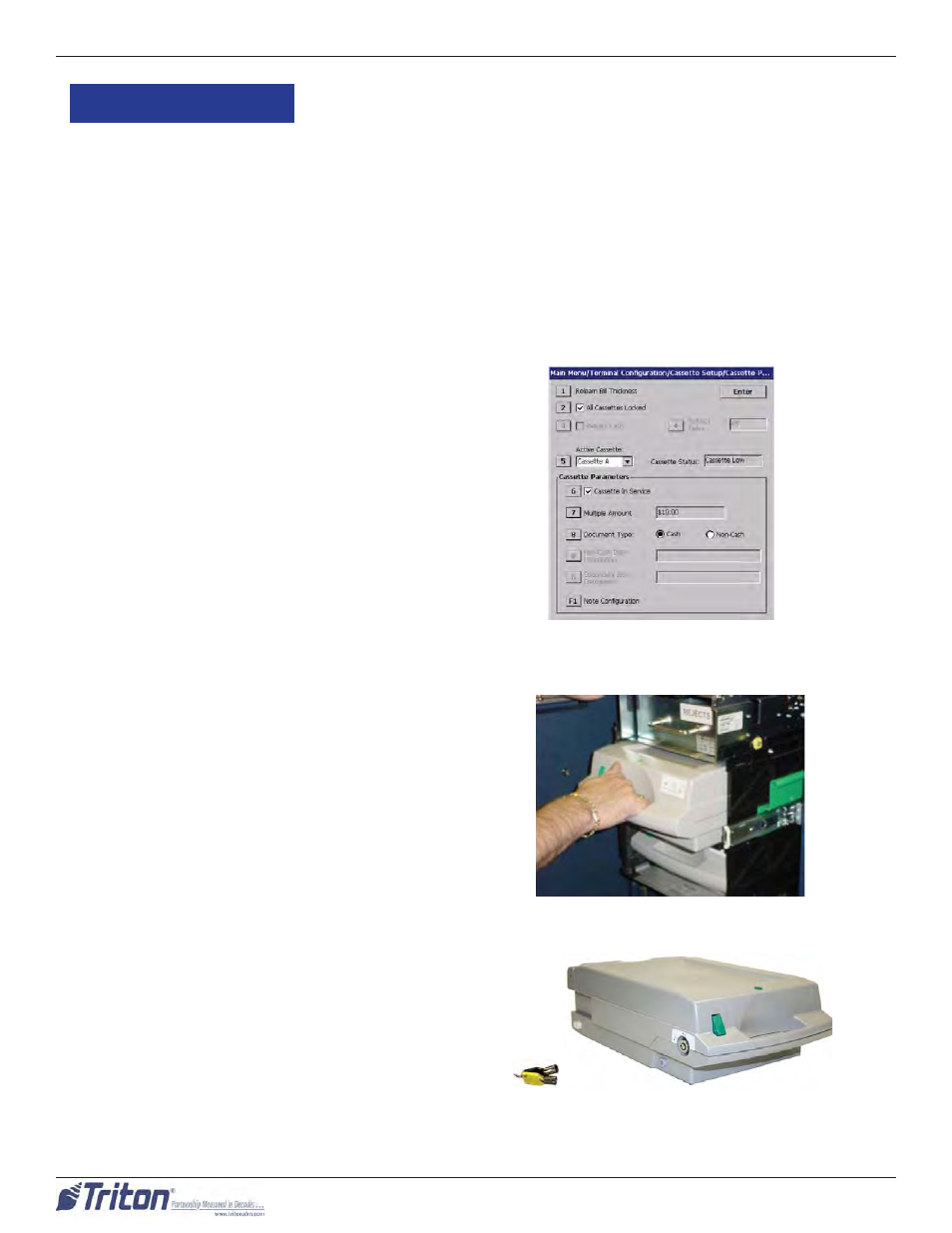

Cassette Parameters Menu

showing cassettes locked.

Removing note cassette

Opening Note Cassettes

1. If your cassette has a lock, use the note cassette key to

open manually unlock the cassette.

NMD50 note cassette

with key lock
