1. Unlock and open the security cabinet door.
2. To gain access to the cassettes, pull the dispenser slide
tray out to its fully extended position, then pull the spring-
loaded locking pin on the underside of the slide tray.
3. Slowly turn the tray clockwise 180° so that the cassettes
can be accessed from the front. Release the locking pin
and move the mounting platform back and forth slightly to
ensure the pin snaps back into place, locking the mounting
platform into the service position.
4. To remove the note cassette, grasp the cassette handle and pull in a fi rm but controlled manner to release
the cassette from the snap catches. Try to use only the minimum amount of force to release the cassette!
The cassette will only move a few inches! Once released from the snaps, you can slide the cassette out
of the mechanism. Place the cassette on a level fl at surface for servicing.

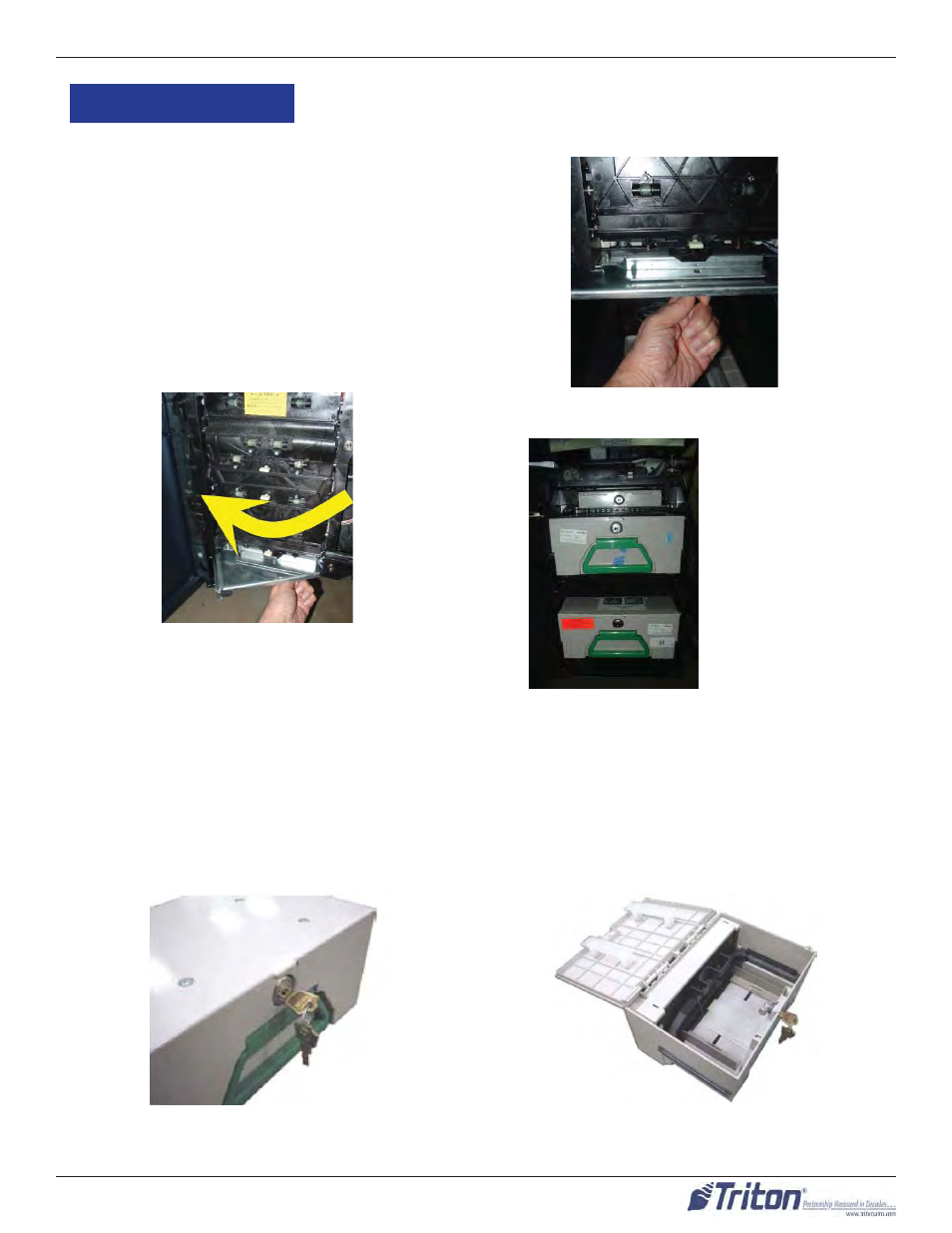

Pull release pin
Rotate dispenser to service position
Service position
(180 o )
Loading the Note Cassette
1. Unlock the cassette and open the cassette lid using the supplied key.
Unlock note cassette Open cassette lid
