5
© Copyright 2002. All rights reserved.

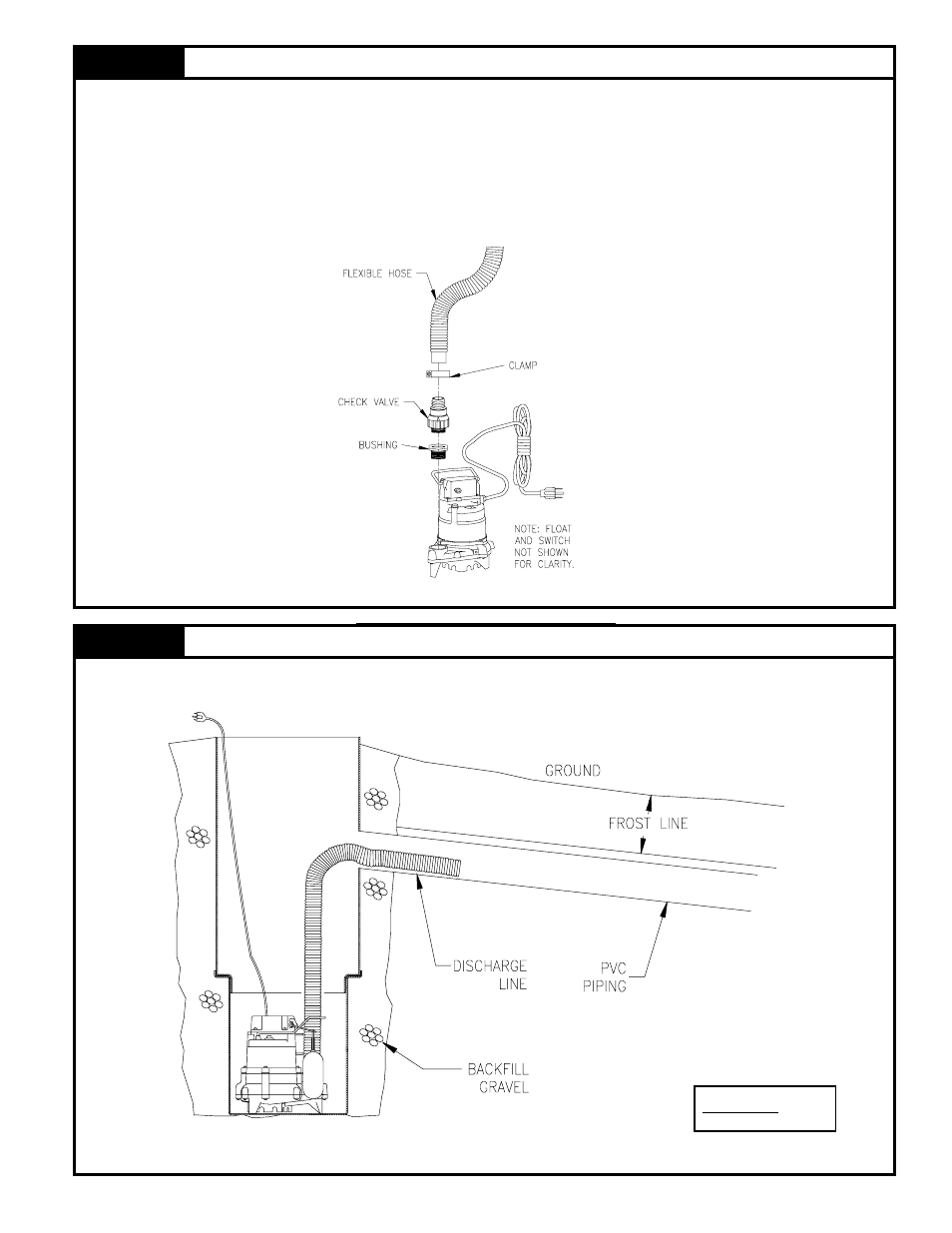

Figure 6.1
Freezing Protection
Note: If there is the possibility of the discharge line freezing, then install the discharge line as recommended in Figure 6.1.
SK1822
Testing of System
5.1) Plug in pump.
5.2) Pour water through lid until pump comes on.
5.3) Check all discharge line connections for leaks or obstructions.
5.4) If the pump begins to “short cycle” as described in part “C” of the troubleshooting guide, then it will be necessary to install a check valve in the discharge line.
This will prevent water from draining from the discharge line back into the pit. Refer to Figure 5.1. If a check valve is installed, the discharge pipe must be protected
from freezing. Refer to Step 6 for freezing protection.
5.5) If after completing the above procedures the system is not operating properly, refer to the Trouble Shooting Guide.
Figure 5.1
SK1805
Extension Kit is an
Accessory Item and must
be purchased separately.
STEP 5
STEP 6
