Installation of Pump and Cover
3.1) Attach the flexible discharge hose to pump and lower into pit.
3.2) Attach lid and complete discharge line connections.
Note: Do not modify the “Slotted” basin lid. However, if extension kit is used, then it will
be necessary to drill ½” dia. inlet drain holes in the extension kit lid. Refer to Figure 3.2.
Note: After modification, attach the lid to the extension with 4 self-threading sheet metal
screws (included).
DO NOT USE LID SUP-
PLIED WITH SLOTTED BASIN IF USING
EXTENSION KIT.

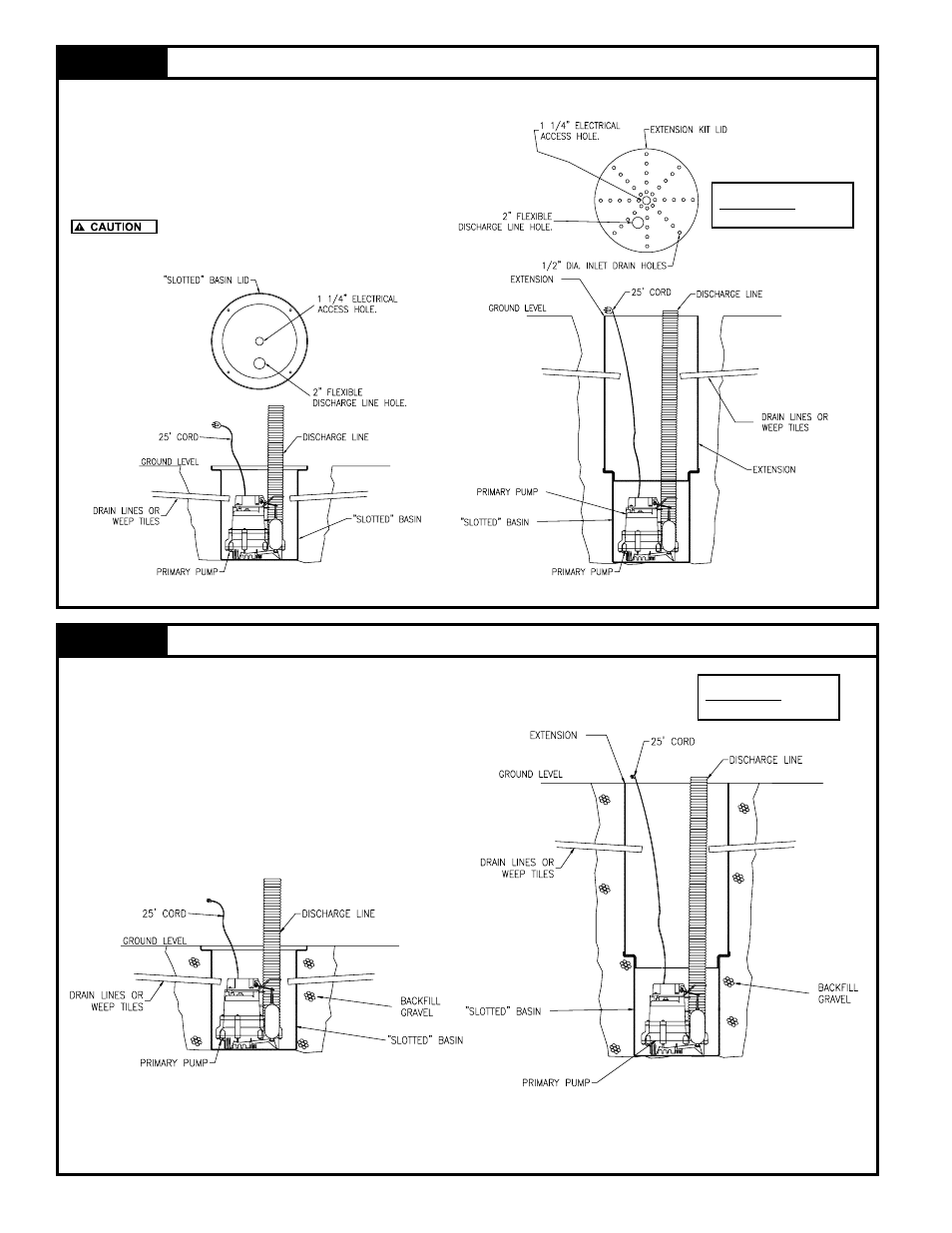

Figure 3.1 Figure 3.2 SK1799
Figure 4.2
4.1) Backfill pit as shown in Figure 4.1 & 4.2.
Figure 4.1
SK1807
Extension Kit is an
Accessory Item and must
be purchased separately.
Extension Kit is an
Accessory Item and must
be purchased separately.
Backfill Pit STEP 4
STEP 3
