IGA 6/23 Advanced Manual Software InfraWin · 30

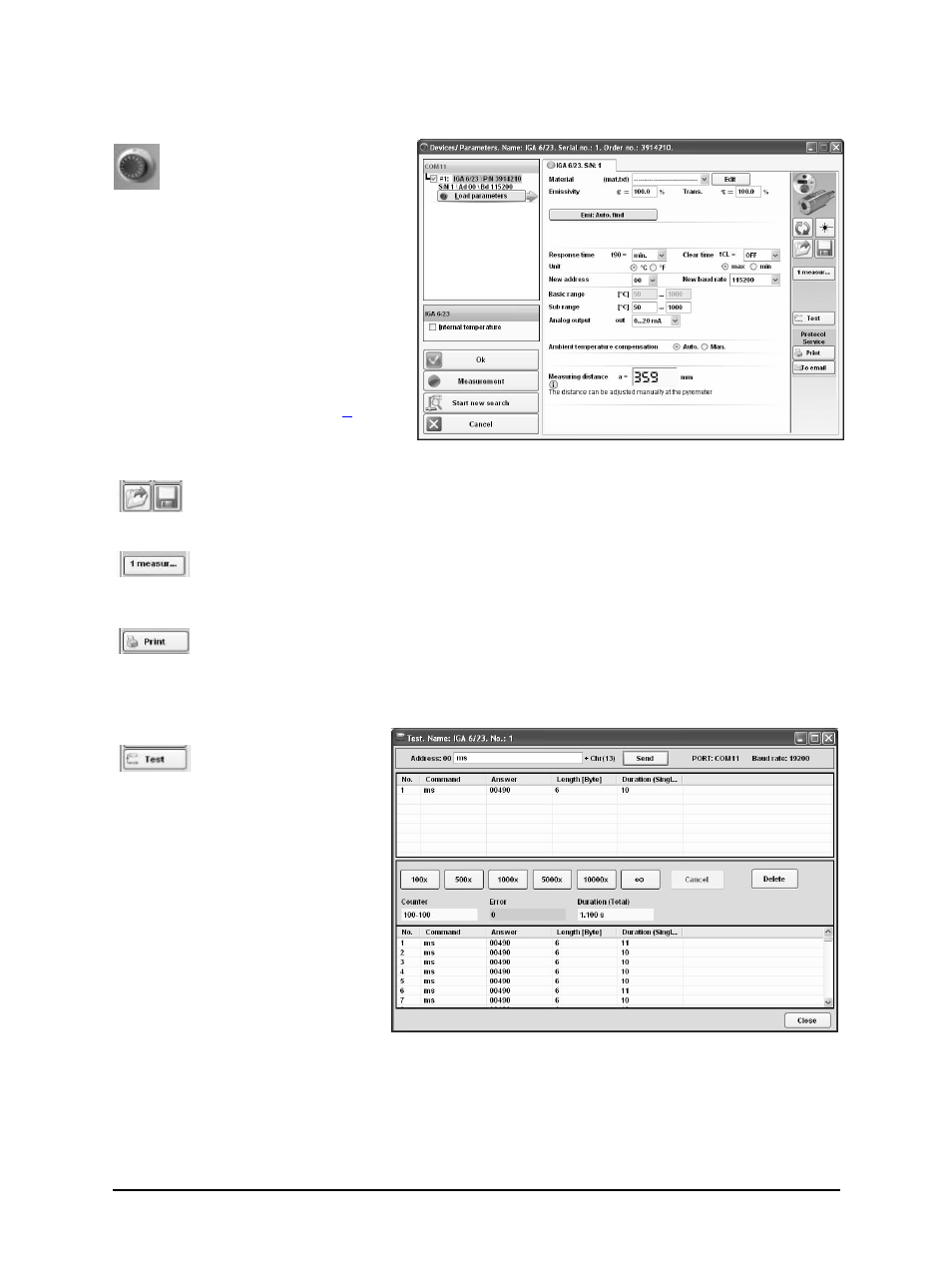

5.4 Basic settings
All preset values for the device
can be displayed and
modified, if necessary under the
Devices/Parameters window.
Changing an existing pyrometer
setting can be accomplished by typing
a value in an input box or by selecting
a preset value from the list field.
Choose the correct settings for your
application from the displayed
options.
This window contains the parameter
settings described in Chapter
4 ,
Parameters.
5.4.1 Open/Save
The open and save buttons enable you to save customized configurations, which can
then be opened and reused at any time.
5.4.2 1 measur…
The 1 measur… function shows the current measuring temperature in the
pyrometer parameters window for approximately 1 second.
5.4.3 Print
The print icon will generate a screenshot of the parameter form and allow you to
send it a printer.
5.4.4 Close
The close icon will close the pyrometer parameters window.
5.4.5 Test
Clicking on the Test
icon will open a
window that allows you to directly
communicate with the pyrometer
using the UPP (Universal
Pyrometer Protocol) Data Format
commands.
After entering an interface
command (00 is the adjusted
address ex works, ms is the
command reading temperature
value) and clicking on Send, the
window shown to the right will be
opened.
This window already shows the
answer of the pyrometer in 1/10°. The actual temperature reading is 49.0 °C.
Len indicates the length of the answered data string, incl. Carriage Return (Chr(13)).
